Heater Control Assembly: Installation
WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
- Connect the connector.

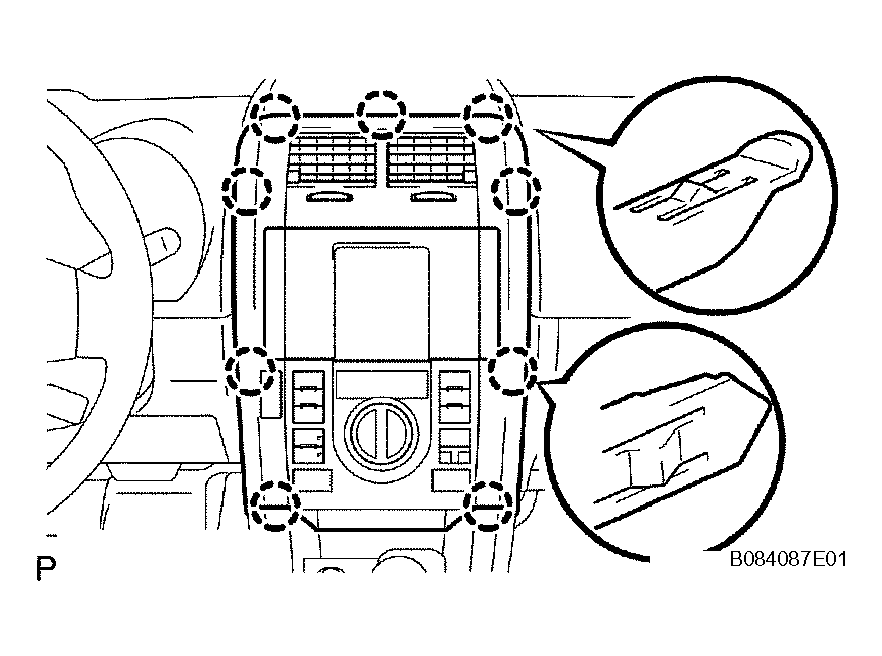

- Attach the 9 claws to install the instrument cluster finish panel.
- INSTALL CONSOLE PANEL UPPER FRONT (See INSTALLATION )
- INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) (See INSTALLATION )
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- PERFORM INITIALIZATION
- Perform initialization (see
INITIALIZATION
).NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
- Perform initialization (see
INITIALIZATION
).
