Heater Control Assembly: Reassembly

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY

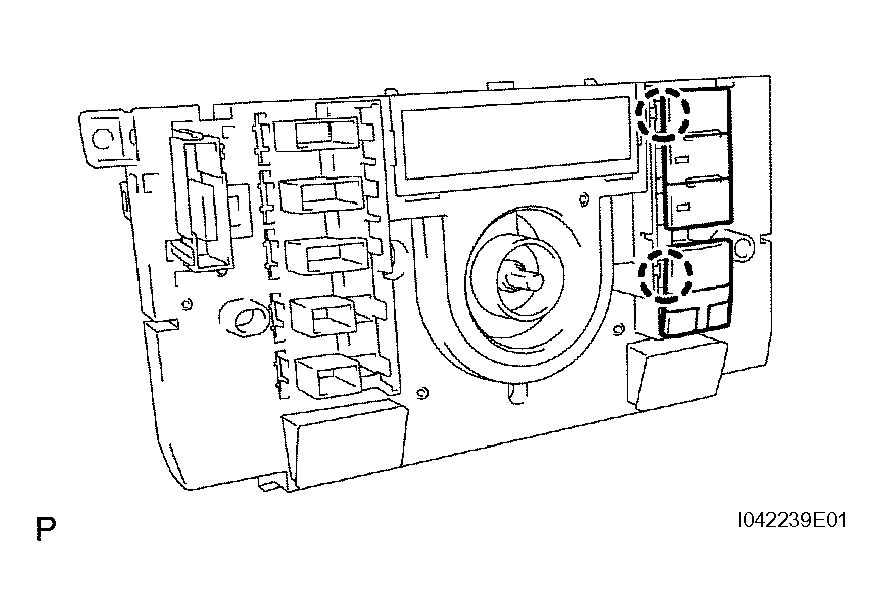

1. Attach the 2 claws to install the knob.

  Fig 1: Attaching Claws To Installing Knob
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

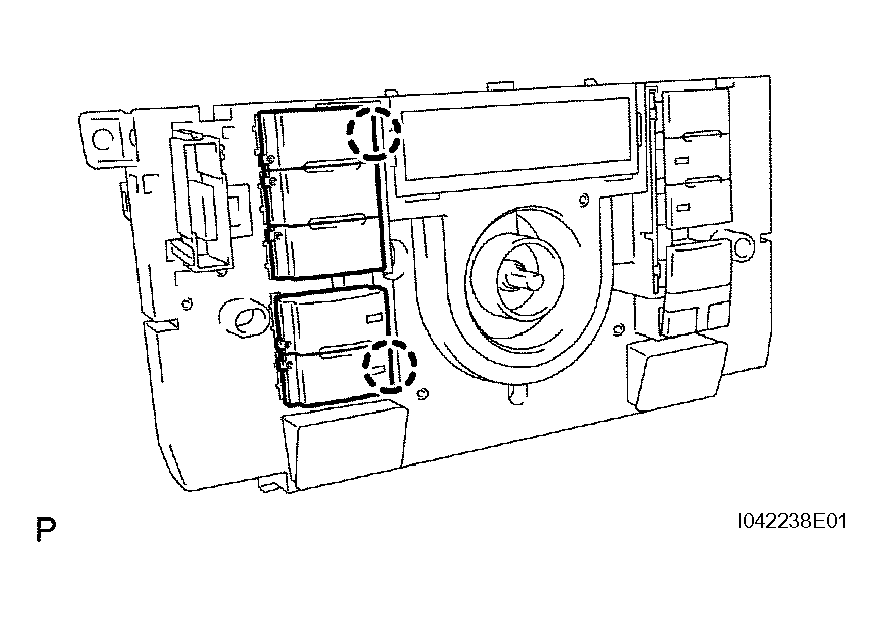

2. Attach the 2 claws to install the knob.

  Fig 2: Attaching Claws To Installing Knob
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

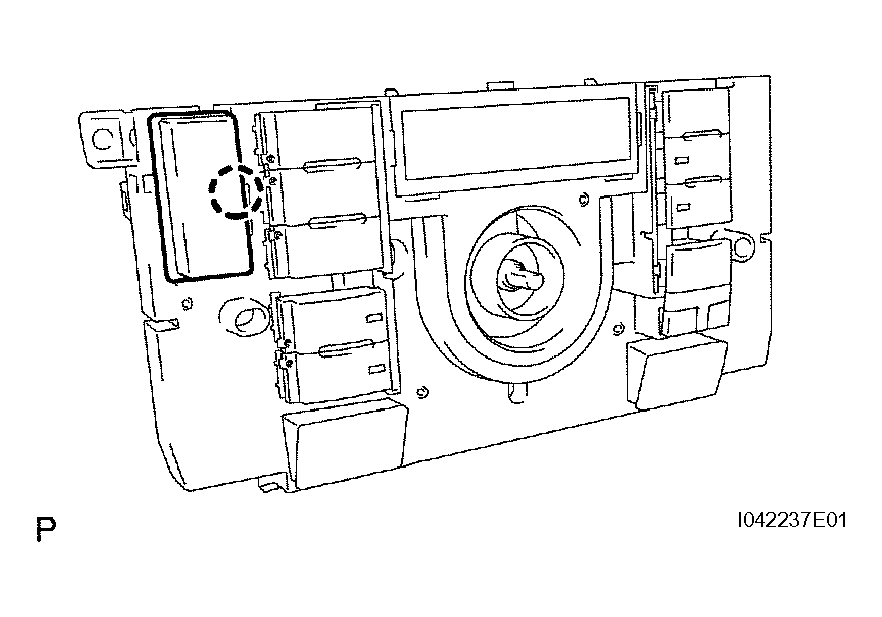

3. Attach the claw to install the knob.
Fig 3: Attaching Claw To Installing Knob
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEATER CONTROL BASE LOWER

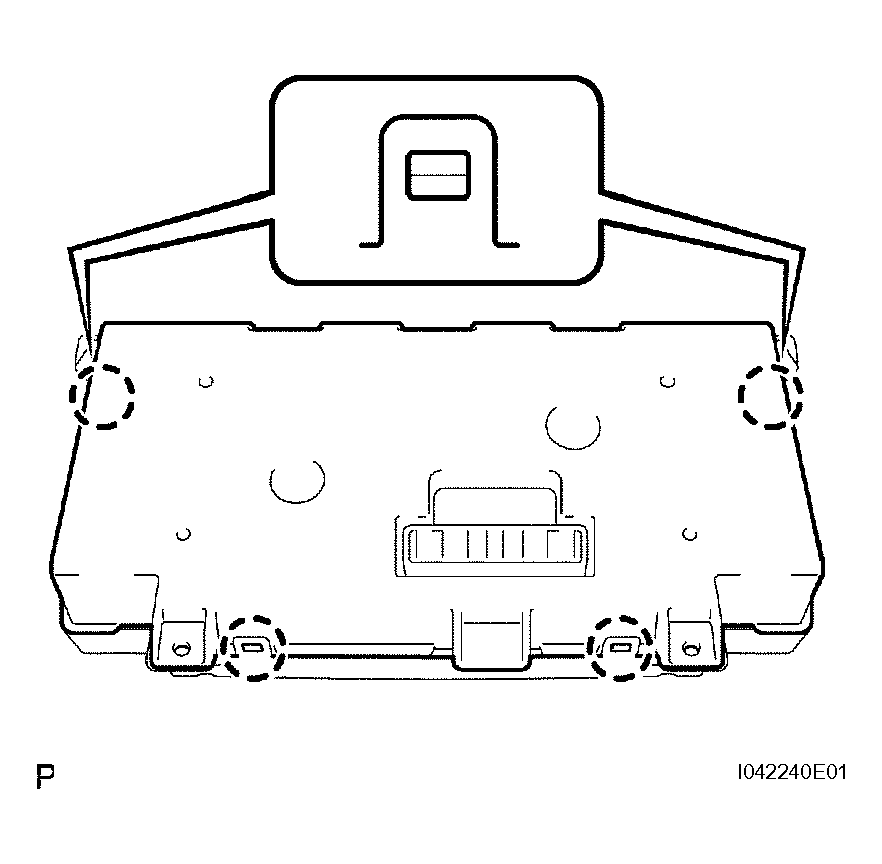

1. Attach the 4 claws to install the heater control base lower.

  Fig 4: Attaching Claws To Installing Heater Control Base Lower
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

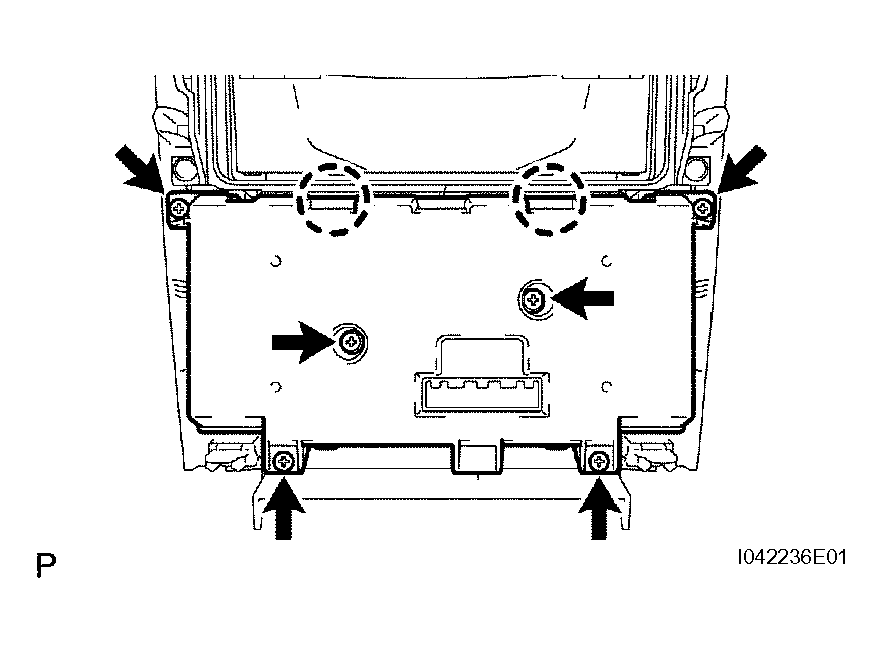

2. Attach the 2 claws to install the heater control base.
3. Install the 6 screws.
Fig 5: Installing Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CENTER CLUSTER MODULE KNOB

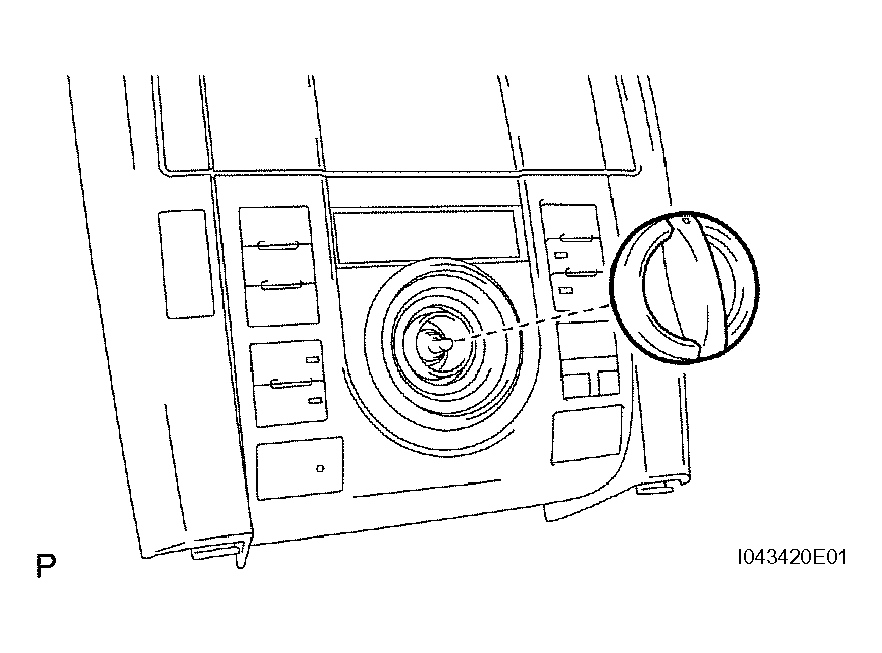

1. Install the center module knob.
Fig 6: Installing Center Module Knob
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
