Steering Column Assembly: Components
WARNING:
This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

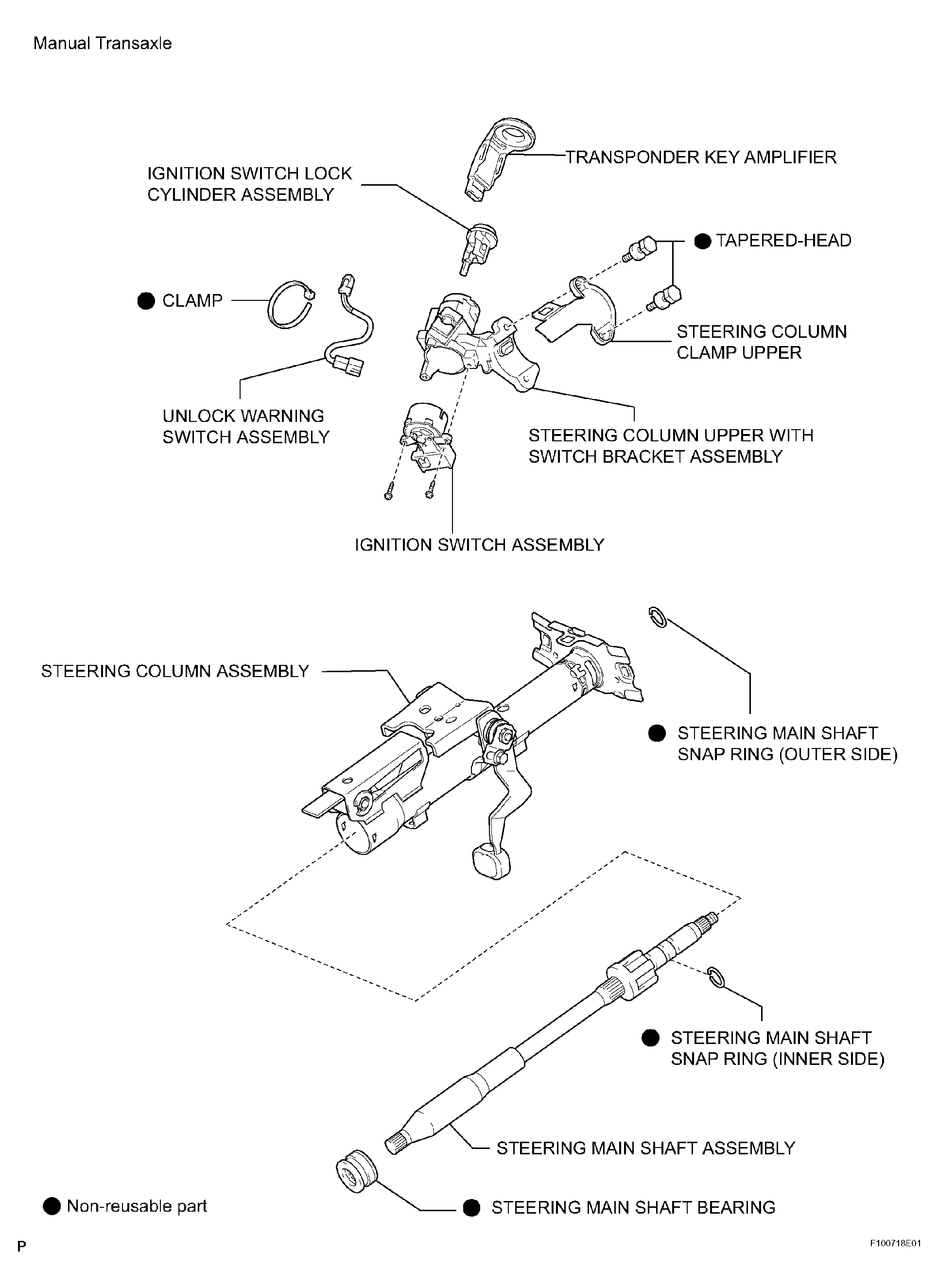

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

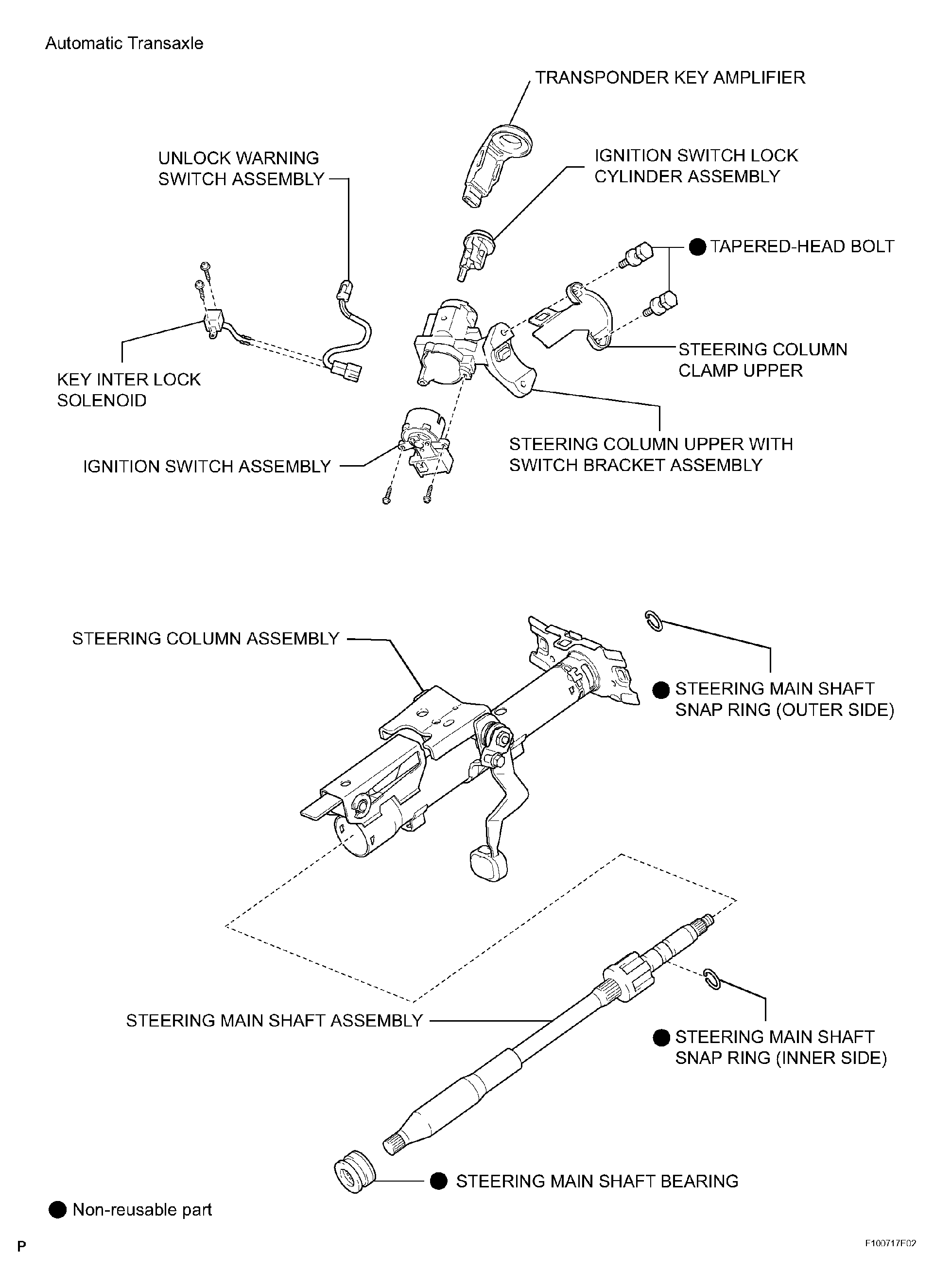

Fig 2: Steering Column Assembly Replacement Components With Torque Specifications (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

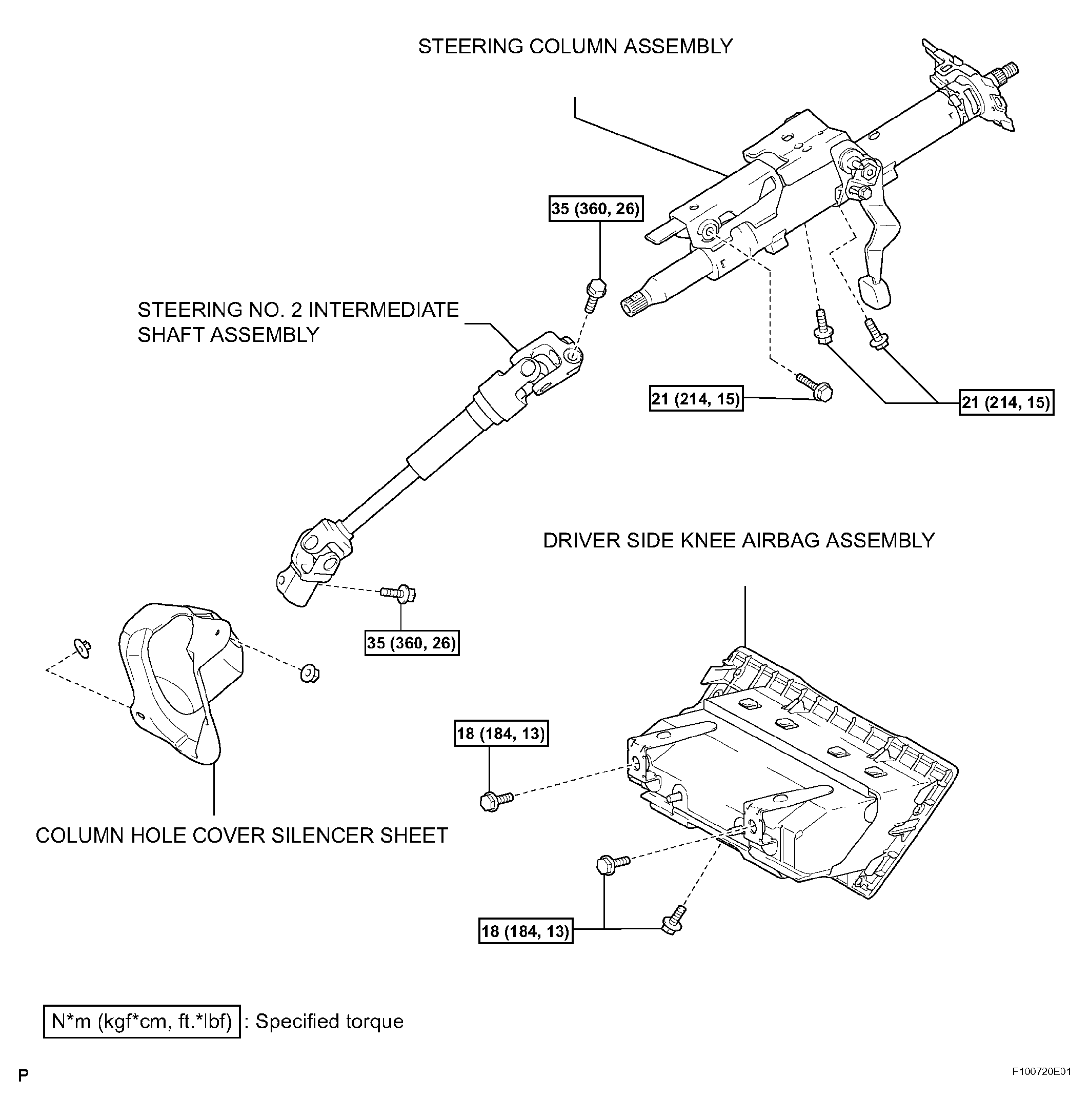

Fig 3: Steering Column Assembly Replacement Components With Torque Specifications (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

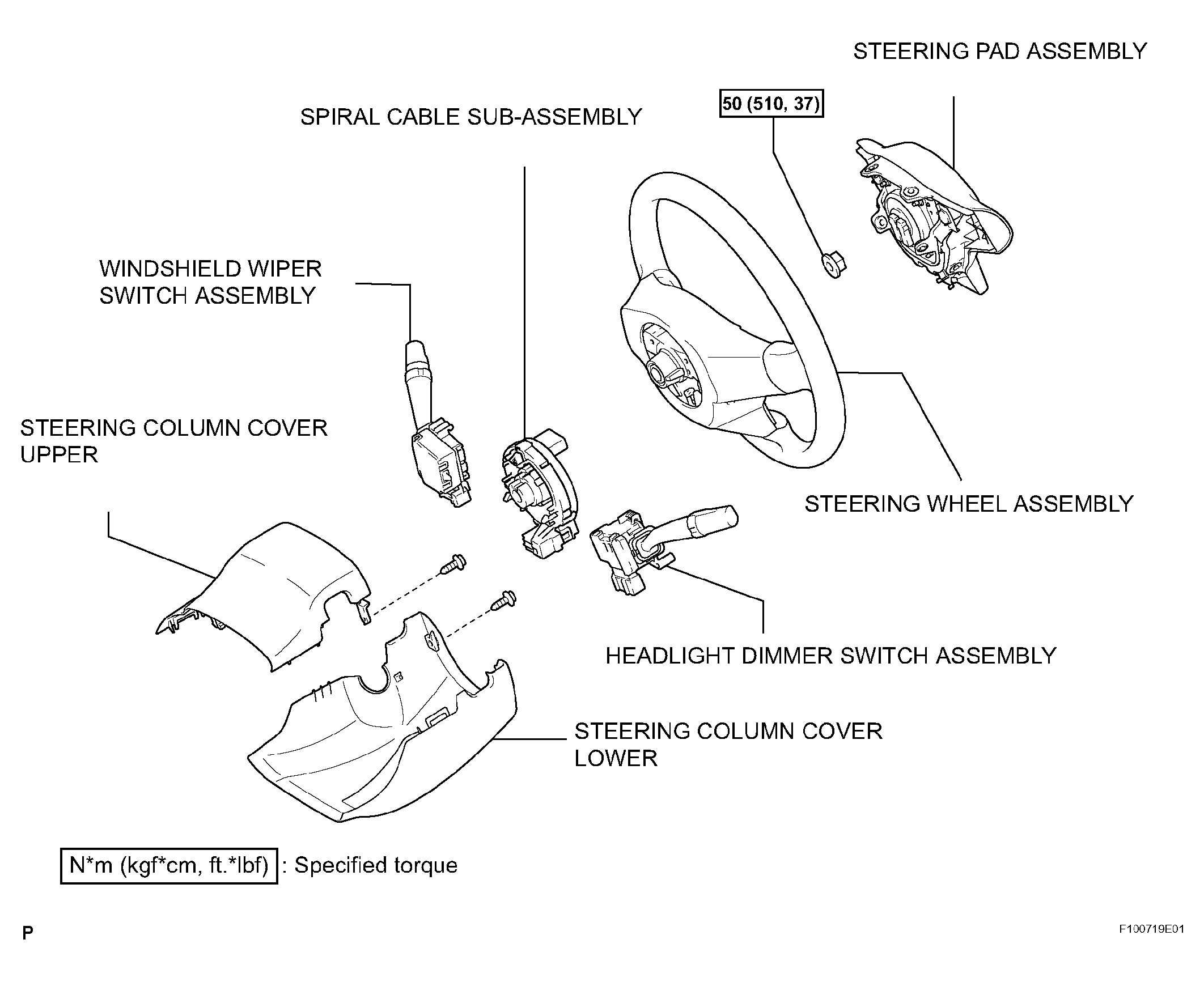

Fig 4: Steering Column Assembly Replacement Components With Torque Specifications (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
