Headlight Assembly: Disassembly

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. REMOVE NO. 1 HEADLIGHT BULB
   1. Remove the No. 1 bulb as shown in the illustration.

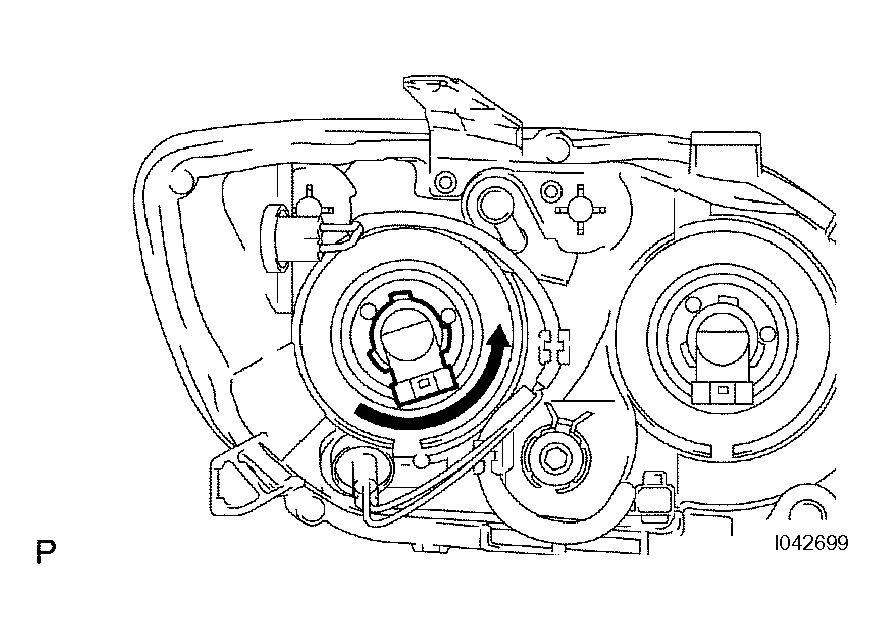

   Fig 1: Removing No. 1 Bulb

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REMOVE NO. 2 HEADLIGHT BULB
   1. Remove the No. 2 bulb as shown in the illustration.

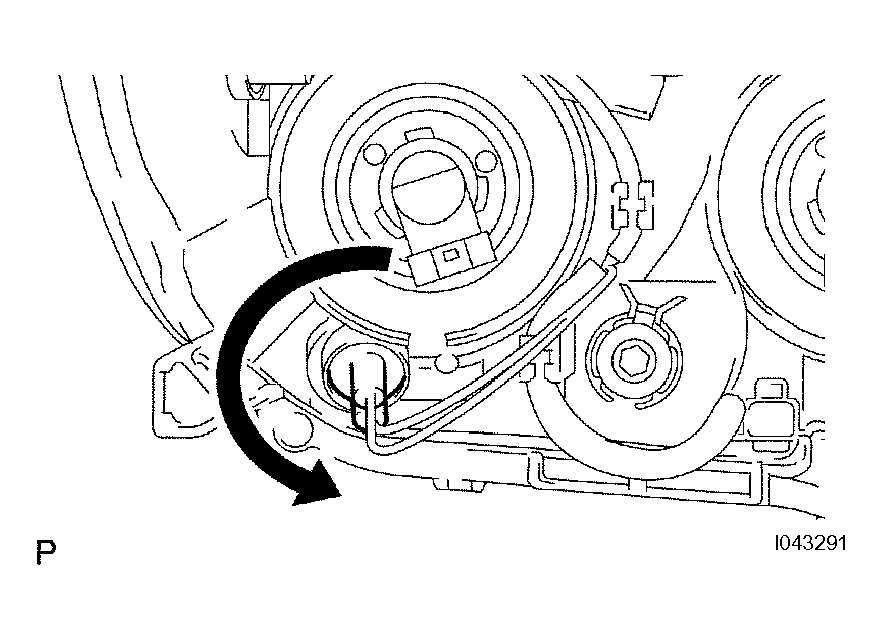

   Fig 2: Removing No. 2 Bulb

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE FRONT TURN SIGNAL LIGHT BULB
   1. Remove the front turn signal light socket as shown in the illustration.
   2. Remove the front turn signal light bulb from the socket.

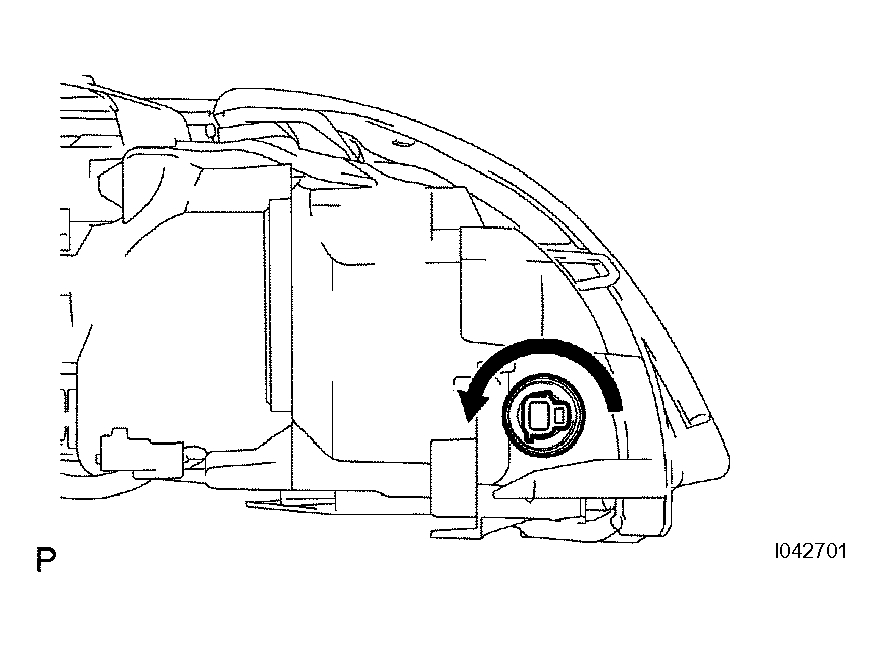

   Fig 3: Removing Front Turn Signal Light Bulb From Socket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. REMOVE CLEARANCE LIGHT BULB
   1. Remove the clearance light socket as shown in the illustration.
   2. Remove the clearance light bulb from the socket.

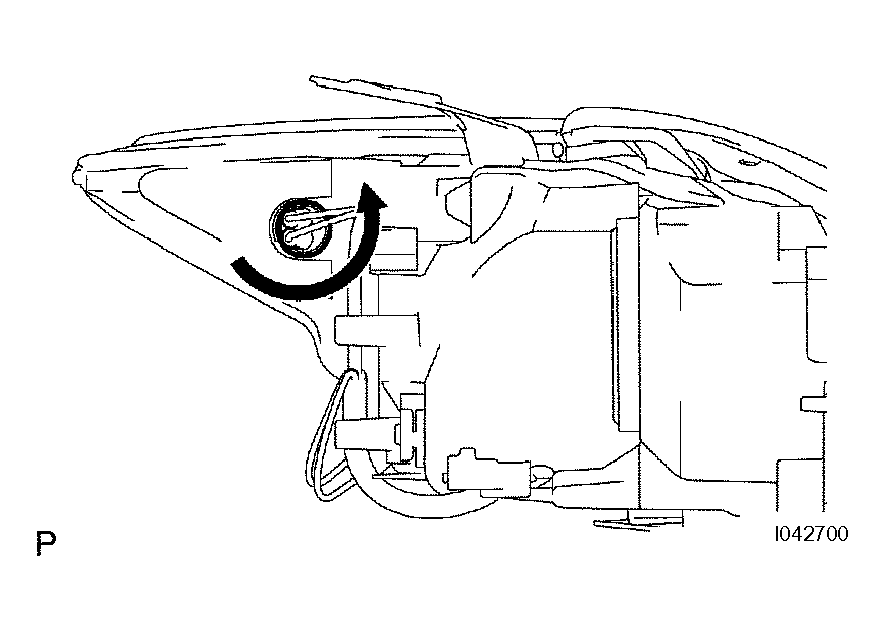

   Fig 4: Removing Clearance Light Bulb From Socket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE FRONT SIDE MAKER LIGHT BULB
   1. Remove the front side maker light socket as shown in the illustration.
   2. Remove the front side maker light bulb from the socket.

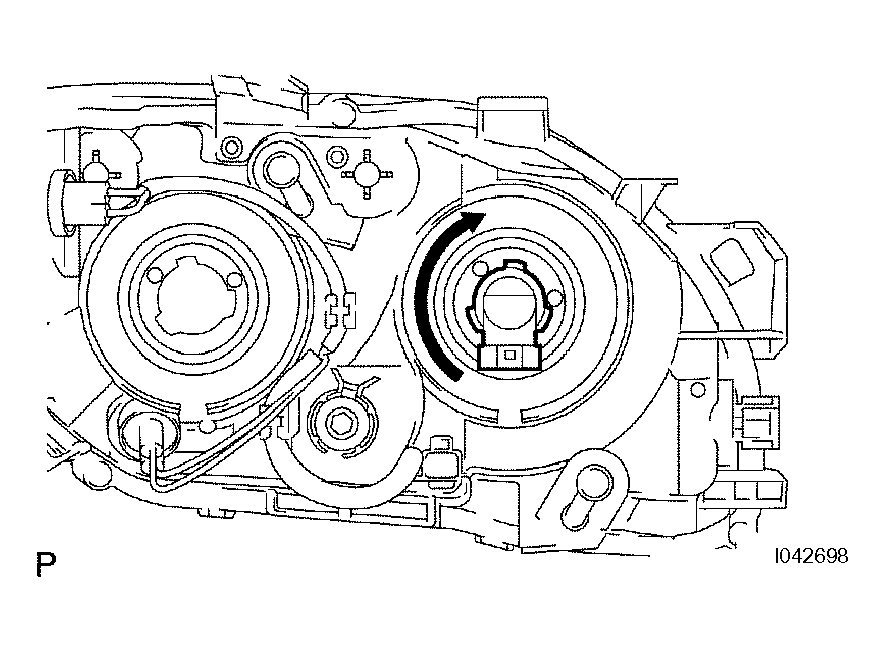

   Fig 5: Removing Front Side Maker Light Bulb

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE HEADLIGHT CORD LH
   1. Detach the 3 clamps and remove the headlight cord LH.

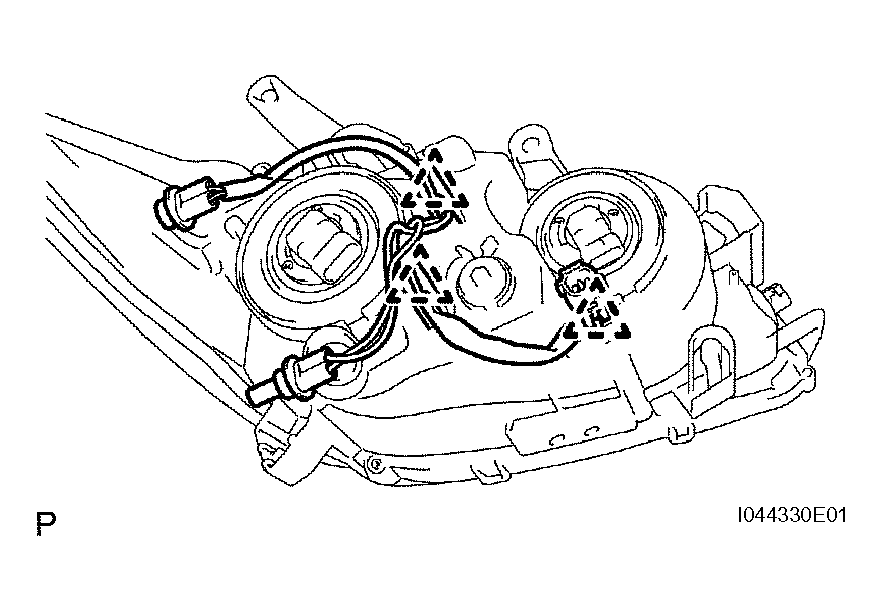

   Fig 6: Detaching Clamps

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
