Headlight Assembly: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

INSTALL HEADLIGHT ASSEMBLY LH
1. Connect the connectors, and install the LH headlight assembly.
2. Install the 2 screws and bolt and attach the claw.
INSTALL FRONT BUMPER COVER (See INSTALLATION )
INSTALL FRONT FENDER LINER RH (See INSTALLATION )
INSTALL FRONT FENDER LINER LH (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

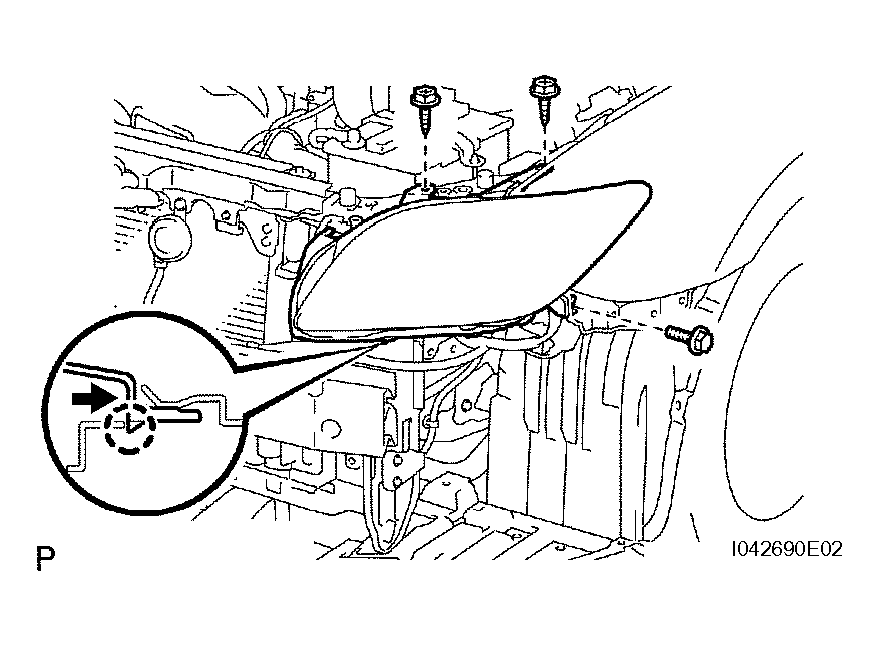

Fig 1: Installing Screws And Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
VEHICLE PREPARATION FOR HEADLIGHT AIM ADJUSTMENT (See ADJUSTMENT )
PREPARATION FOR HEADLIGHT AIMING (Using a tester) (See ADJUSTMENT )
PREPARATION FOR HEADLIGHT AIMING (Using a screen) (See ADJUSTMENT )
INSPECT HEADLIGHT AIMING (See ADJUSTMENT )
ADJUST HEADLIGHT AIMING (See ADJUSTMENT )
