Headlight Assembly: Repair

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

INSTALL HEADLIGHT PROTECTOR RETAINER UPPER LH
HINT:
- If the installation area of the headlight is damaged, use the supply bracket for low-cost repair.
- Ensure that the headlight assembly is not damaged.

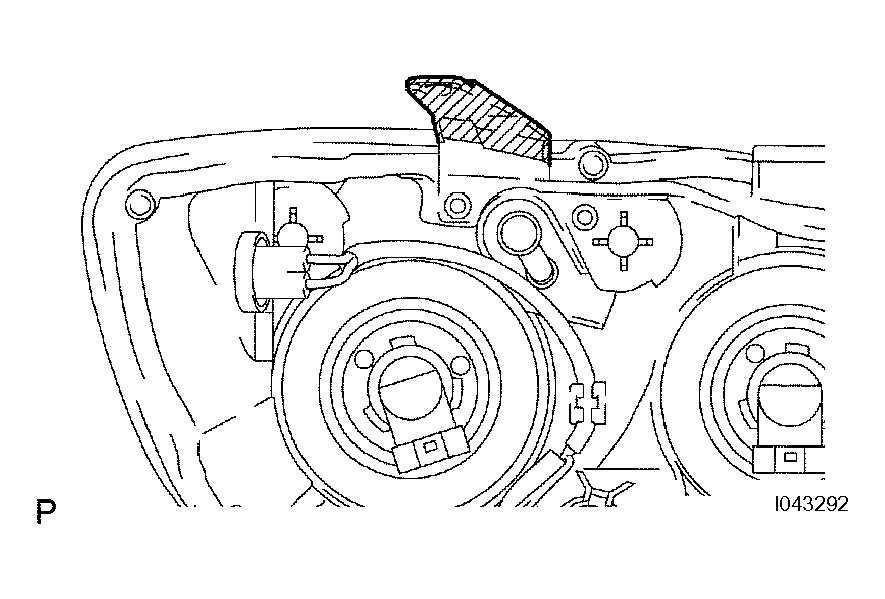

  1. Cut off the part shaded in the illustration and smooth with sandpaper.
    NOTE: After cutting off the part, place the headlight protector retainer upper against the bosses and gradually file away until installation is possible.

    Fig 1: Cutting Shaded Part
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

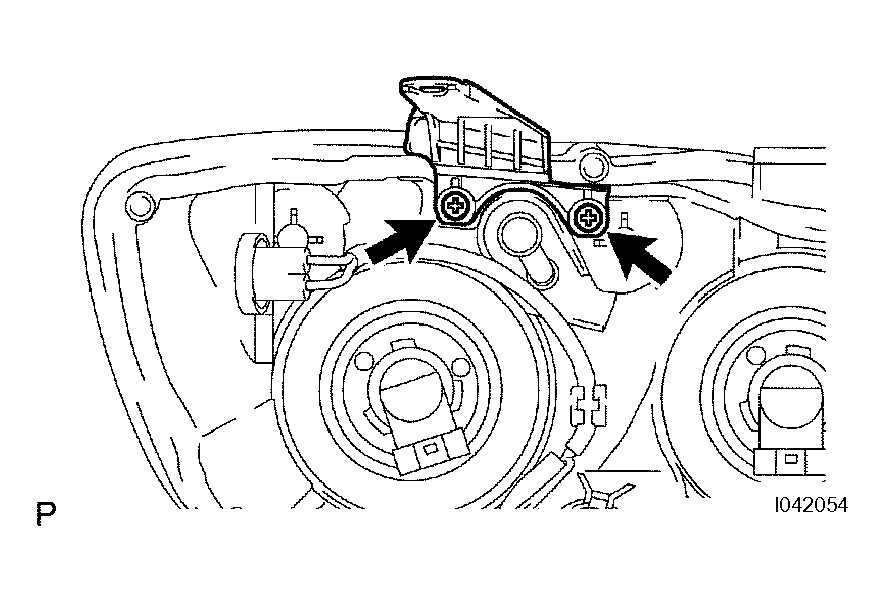

  2. Install the headlight protector retainer upper LH with the 2 screws.

    Fig 2: Installing Headlight Protector Retainer Upper LH With Screws
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
