Map Light Assembly: Inspection

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT MAP LIGHT ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

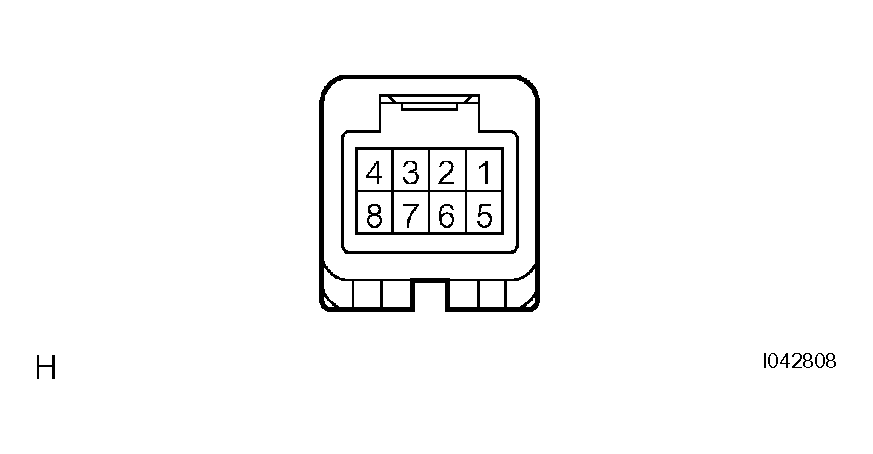

      Fig 1: Identifying Map Light Connector Terminals
      G04224184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      CONNECTOR TERMINAL RESISTANCE SPECIFICATIONS

      Tester Connection Condition Specified Condition
      3 - 4
      3 - 8      		 Switch is OFF 10 kΩ or higher
    2. Connect the battery positive (+) lead to terminal 3 and the battery negative (-) lead to terminal 8, and then check that the light comes on when the switch is in the DOOR position.

      OK: Light comes on.

    3. Connect the battery positive (+) lead to terminal 3 and the battery negative (-) lead to terminal 4, and then check that the light comes on when the switch is in the ON position.

      OK: Light comes on.
