Rear Combination Light Assembly: Disassembly

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

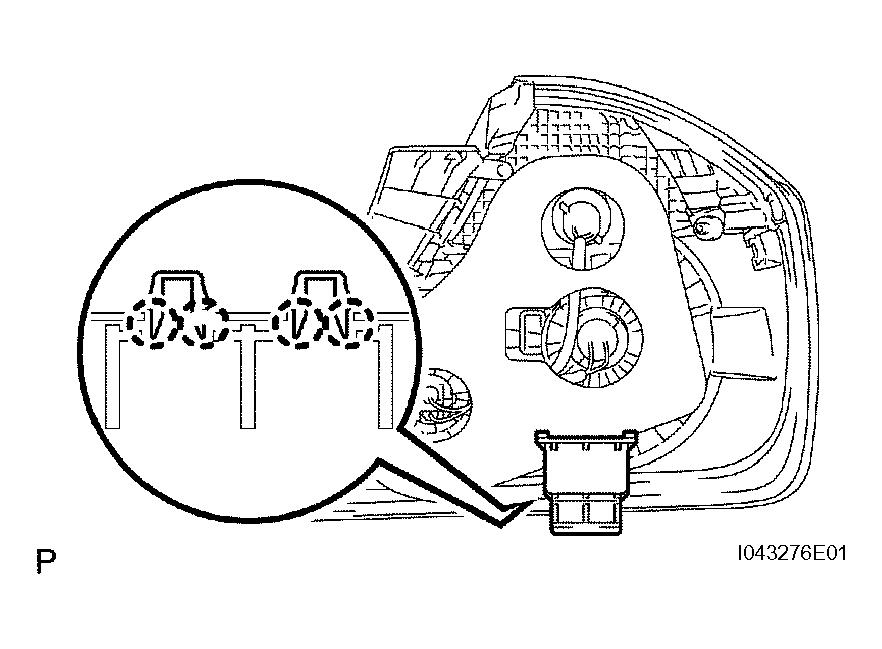

1. REMOVE REAR SIDE BRACKET LH
   1. Using needle nose pliers, detach the claws and remove the rear bumper side bracket from the rear combination light assembly.
   Fig 1: Detaching Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

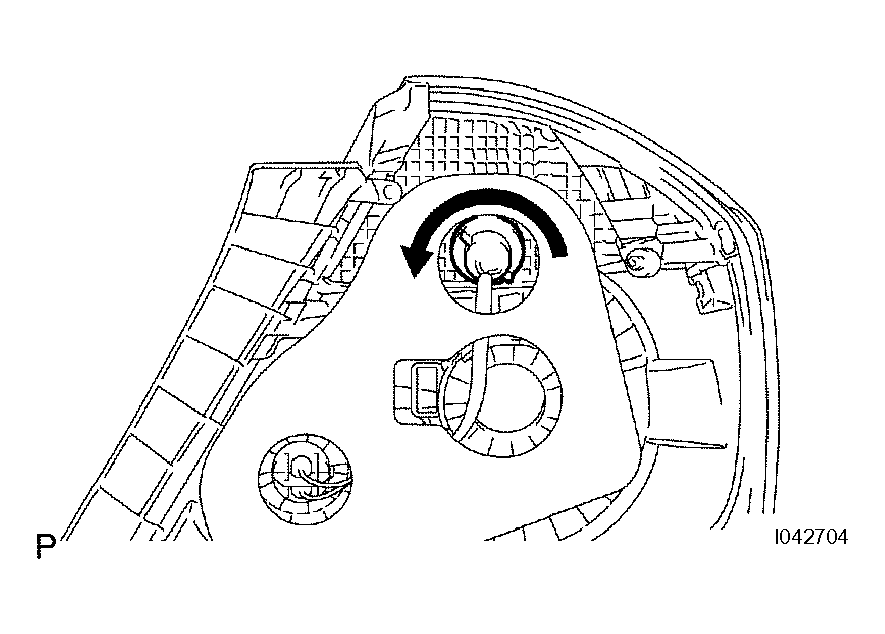

2. REMOVE TAIL AND STOP LIGHT BULB
   1. Remove the light socket as shown in the illustration.
   2. Remove the light bulb from the light socket.
   Fig 2: Removing Light Socket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

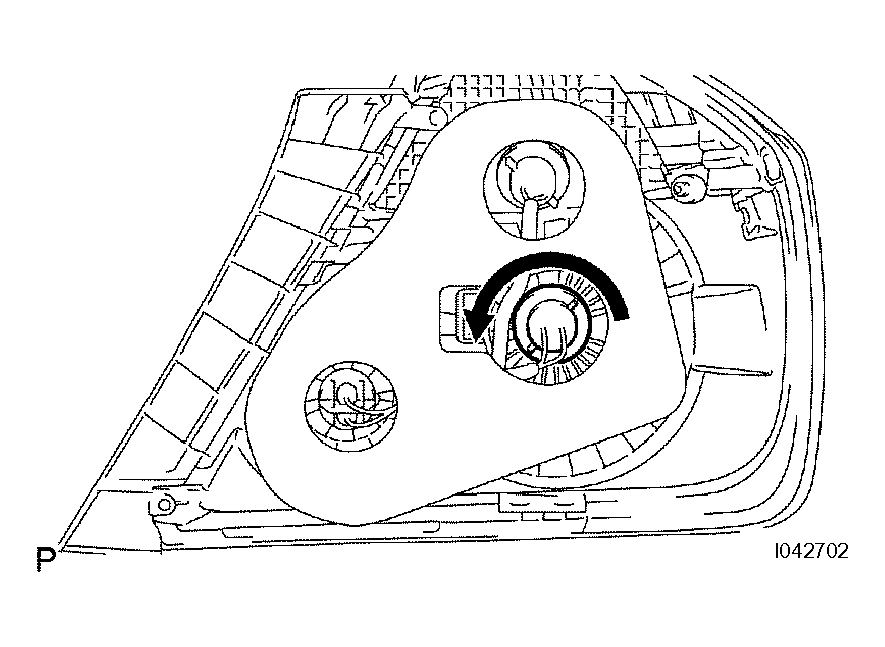

3. REMOVE BACK-UP LIGHT BULB
   1. Remove the light socket as shown in the illustration.
   2. Remove the rear combination light bulb from the light socket.
   Fig 3: Removing Back-Up Light Bulb

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

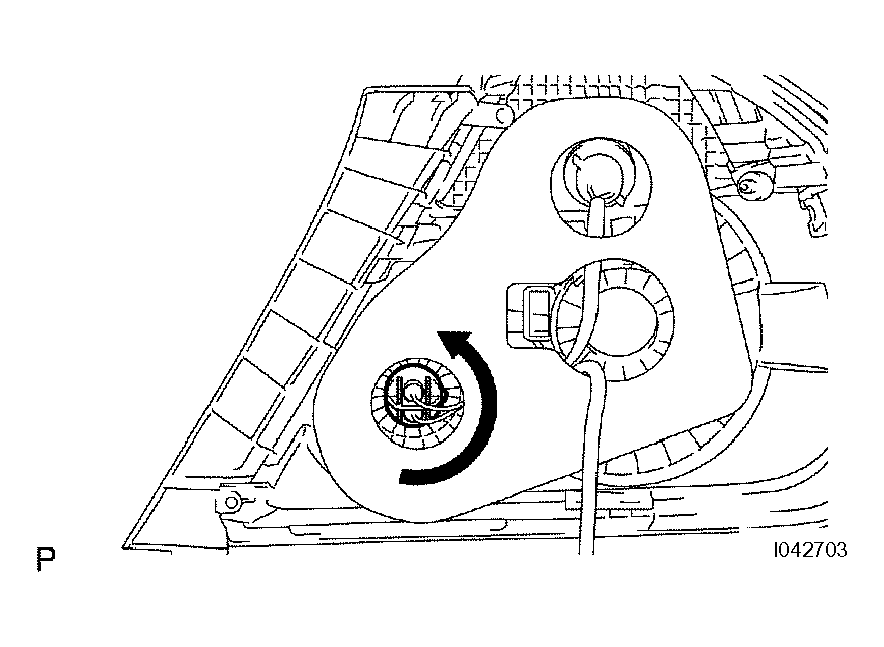

4. REMOVE REAR TURN SIGNAL LIGHT BULB
   1. Remove the light socket as shown in the illustration.
   2. Remove the rear combination light bulb from the light socket.
5. REMOVE REAR COMBINATION LIGHT BODY PACKING LH
   Fig 4: Removing Rear Combination Light Body Packing LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

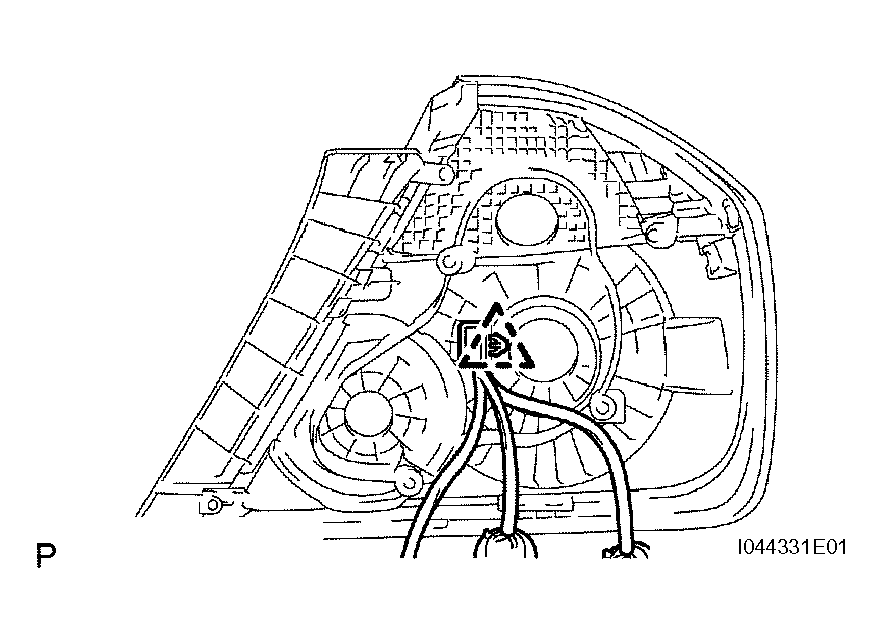

6. REMOVE REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY
   1. Detach the clamp and remove the rear combination light socket and wire.
      Fig 5: Detaching Clamp

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

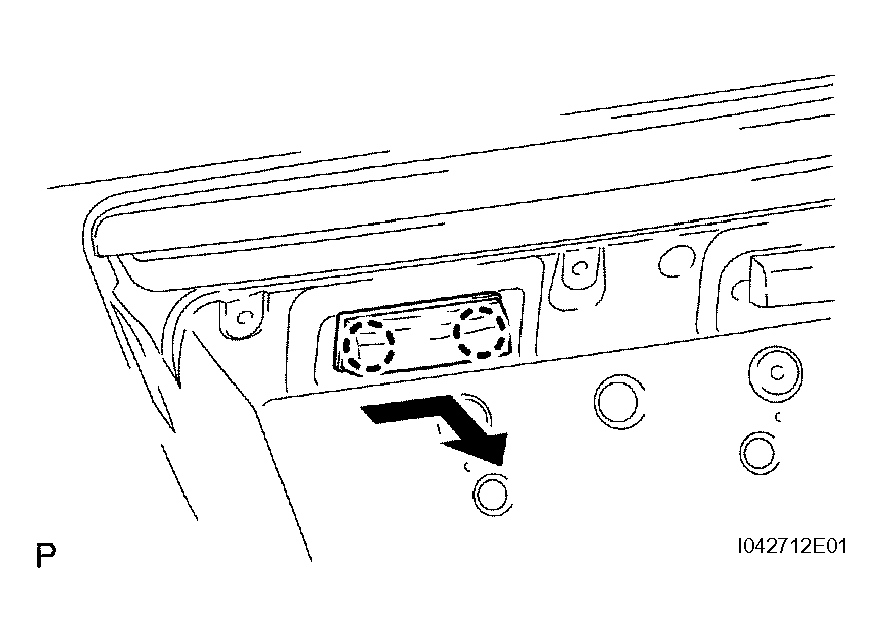

1. REMOVE LICENSE PLATE LIGHT ASSEMBLY
   1. Disconnect the connector.
   2. Detach the 2 claws and remove the license plate light as shown in the illustration.
   Fig 1: Removing License Plate Light

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

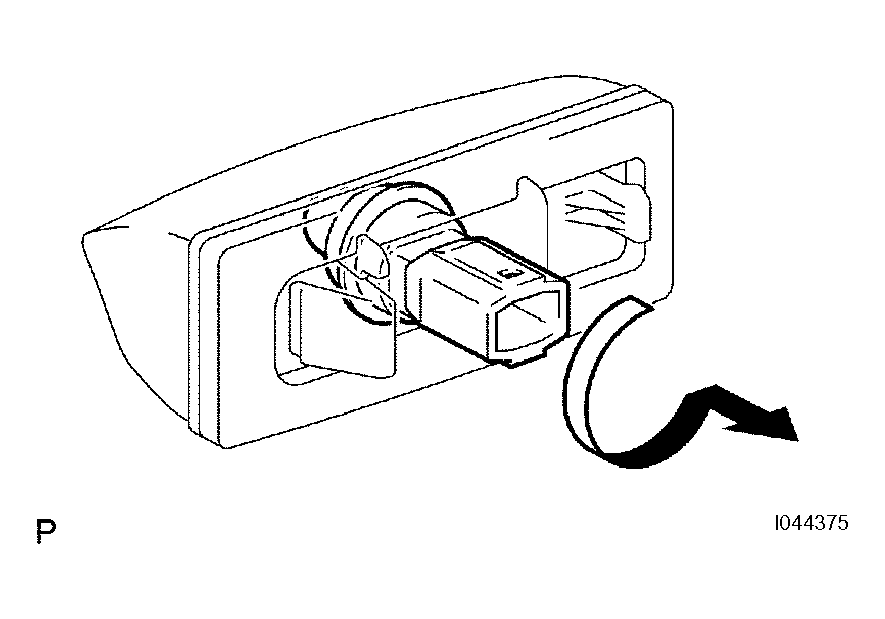

2. REMOVE LICENSE PLATE LIGHT BULB
   1. Turn in the direction indicated by the arrow and remove the license plate light bulb, and the license plate light socket and wire as a unit.
   2. Remove the license plate light bulb from the license plate light socket and wire.
3. REMOVE LICENSE PLATE LIGHT LENS

Fig 2: Removing License Plate Light Bulb

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
