Rear Combination Light Assembly: Reassembly

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

INSTALL REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY
1. Attach the clamp and install the rear combination light socket and wire.
INSTALL REAR COMBINATION LIGHT BODY GASKET LH
INSTALL REAR TURN SIGNAL LIGHT BULB
1. Install the light bulb to the light socket.
2. Install the light socket.

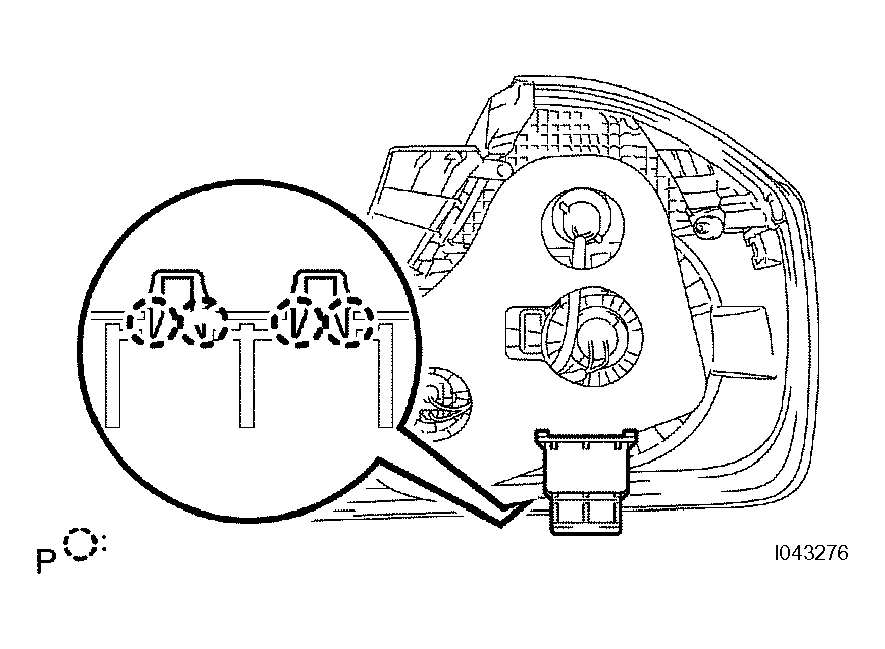

Fig 1: Attaching Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BACK-UP LIGHT BULB
1. Install the light bulb to the light socket.
2. Install the light socket.
INSTALL TAIL AND STOP LIGHT BULB
1. Install the light bulb to the light socket.
2. Install the light socket.
INSTALL REAR BUMPER SIDE BRACKET LH
1. Install the rear bumper side bracket to the rear combination light.

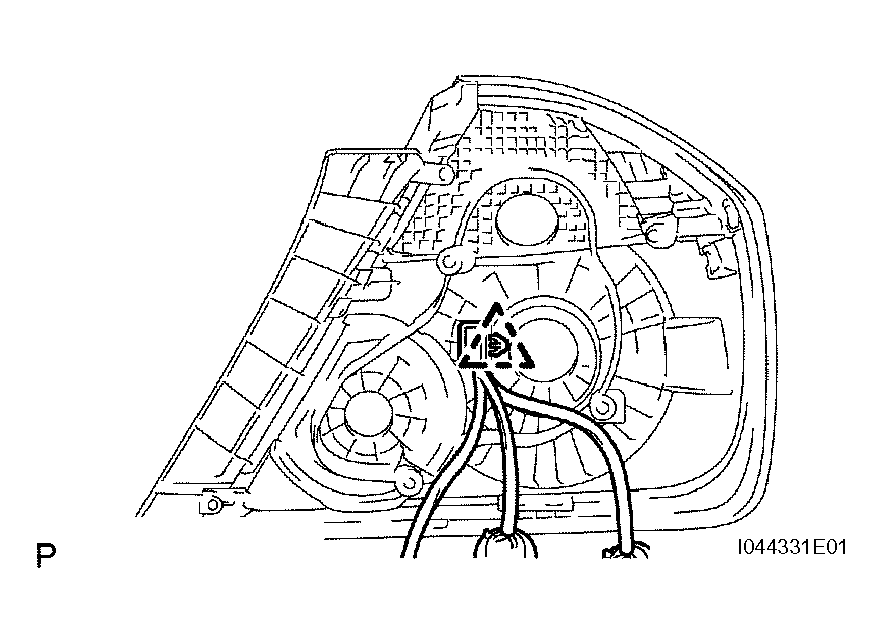

  Fig 2: Installing Rear Bumper Side Bracket To Rear Combination Light
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

INSTALL LICENSE PLATE LIGHT LENS
INSTALL LICENSE PLATE LIGHT BULB
1. Install the license plate light bulb to the license plate light socket.
2. Install the light bulb, light socket and wire as a unit.
