Room Light Assembly: Inspection

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT NO. 1 ROOM LIGHT ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

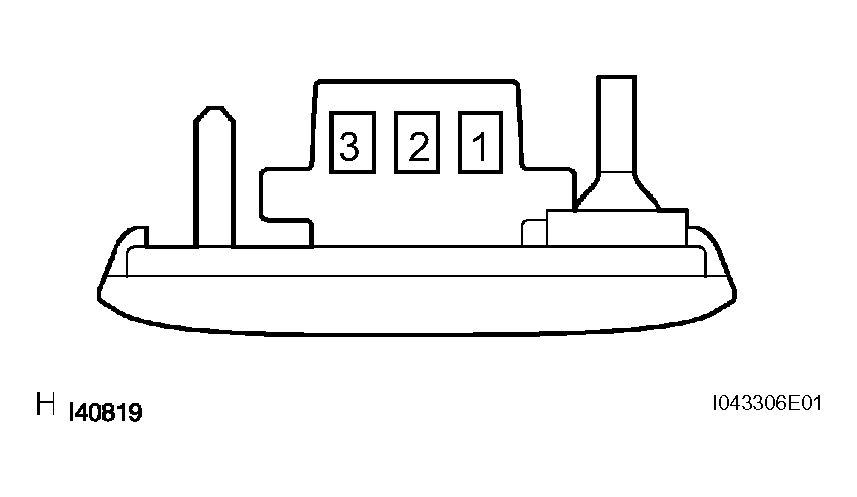

      Fig 1: Identifying Room Light Connector Terminals
      G04224186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      CONNECTOR TERMINAL RESISTANCE SPECIFICATIONS

      Tester Connection Condition Specified Condition
      1 - 2
      1 - 3      		 Switch is OFF 10 kΩ or higher
    2. Connect the battery positive (+) lead to terminal 1 and the battery negative (-) lead to terminal 2, nd then check that the light comes on when the switch is in the DOOR position.

      OK: Light comes on.

    3. Connect the battery positive (+) lead to terminal 1 and the battery negative (-) lead to terminal 3, and then check that the light comes on when the switch is in the ON position.

      OK: Light comes on.



  1. INSPECT NO. 1 ROOM LIGHT ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.
      Fig 1: Identifying No. 1 Room Light Connector Terminals
      G04224188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      CONNECTOR TERMINAL RESISTANCE SPECIFICATIONS

      Tester Connection Condition Specified Condition
      1 - 2
      1 - 3      		 Switch is OFF 10 kΩ or higher
    2. Connect the battery positive (+) lead to terminal 1 and the battery negative (-) lead to terminal 2, nd then check that the light comes on when the switch is in the DOOR position.

      OK: Light comes on.

    3. Connect the battery positive (+) lead to terminal 1 and the battery negative (-) lead to terminal 3, and then check that the light comes on when the switch is in the ON position.

      OK: Light comes on.
