Side Turn Signal Light Assembly: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

INSTALL SIDE TURN SIGNAL LIGHT LENS LH
1. Connect the connector and install the side turn signal light lens LH.
2. Install the 2 screws.

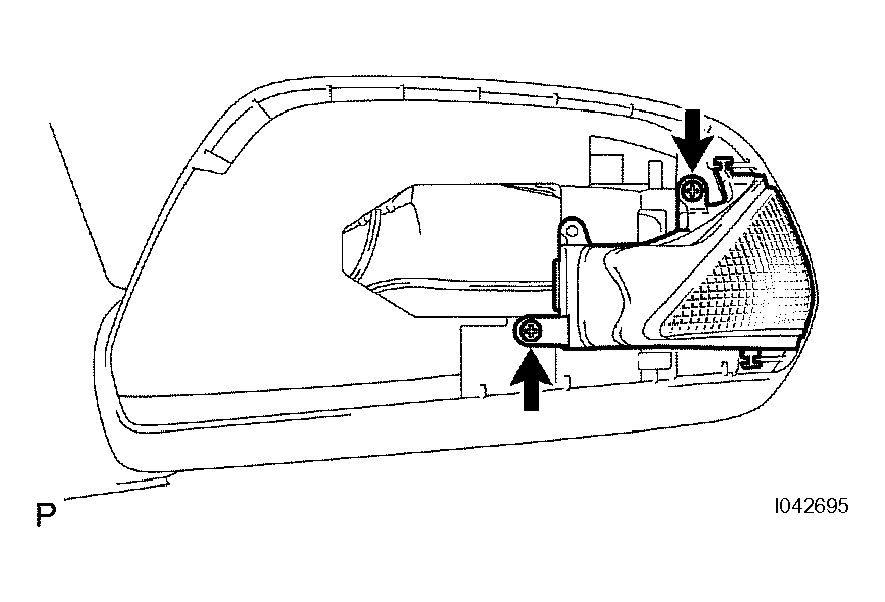

  Fig 1: Installing Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Attach the 4 claws and install the cover.
INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

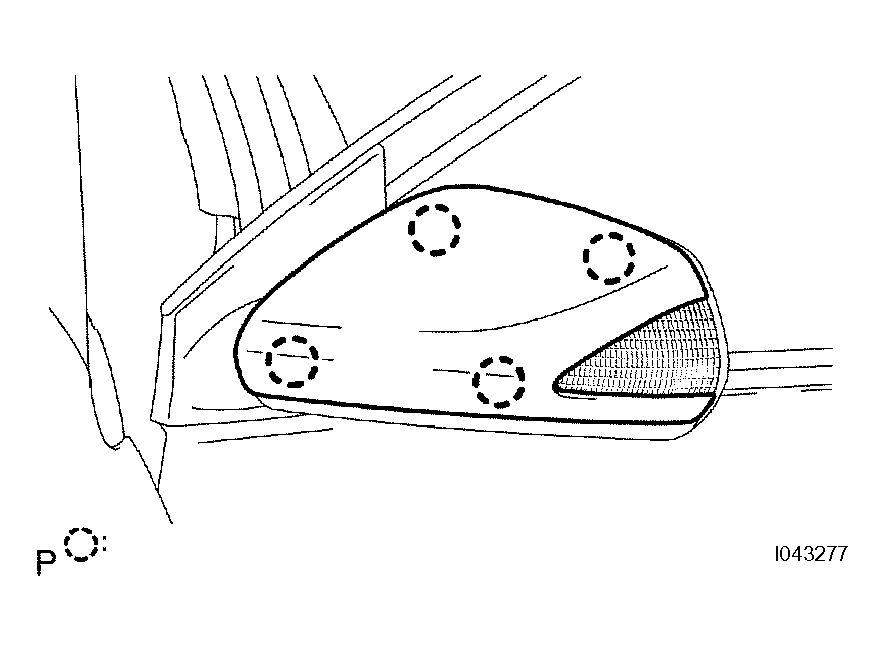

  Fig 2: Attaching Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
