Stop Light Switch: Inspection
WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT STOP LIGHT SWITCH ASSEMBLY

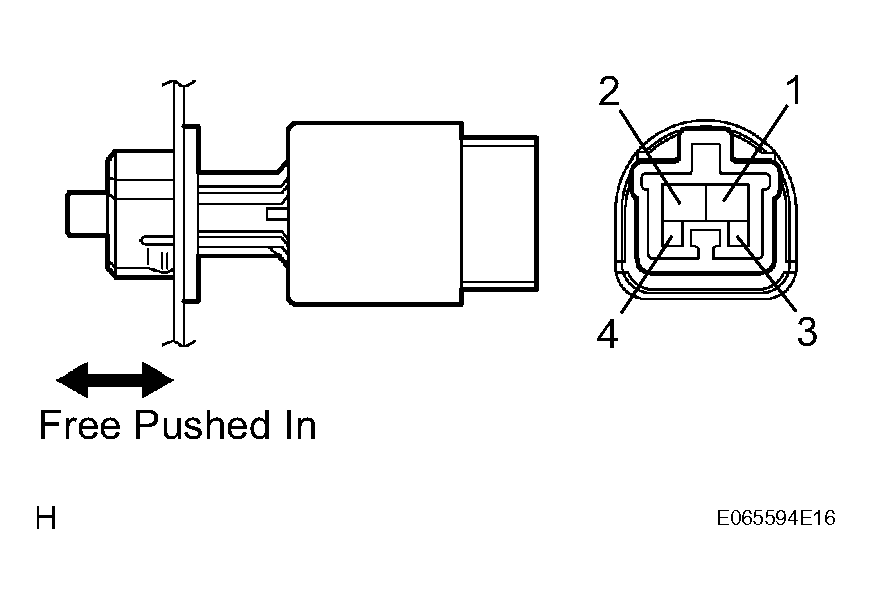

- Measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard resistance
CONNECTOR TERMINAL RESISTANCE SPECIFICATIONSTester Connection Condition Specified Condition 1 - 2 Switch pin free Below 1 Ω 3 - 4 Switch pin free 10 kΩ or higher 1 - 2 Switch pin pushed in 10 kΩ or higher 3 - 4 Switch pin pushed in Below 1 Ω - Measure the resistance according to the value(s) in the table below.
