Steering Linkage: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL POWER STEERING LINK ASSEMBLY
1. Using SST, install the left turn pressure tube to the steering link assembly.
  SST 09023-38201

  Torque: 22 N*m (224 kgf*cm, 16 ft.*lbf)

  HINT:
  - Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).
  - This torque value is effective when SST is parallel to the torque wrench.

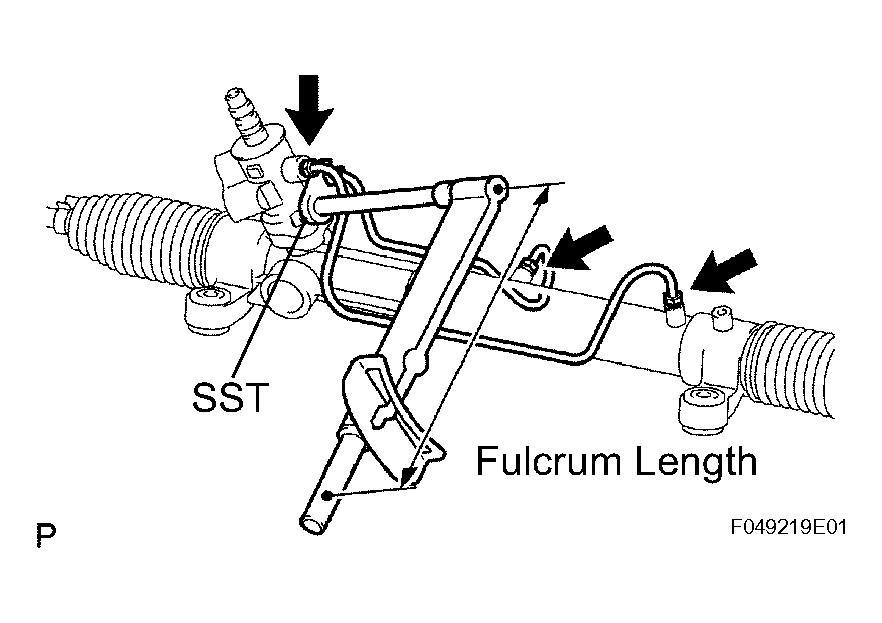

  Fig 1: Installing Left Turn Pressure Tube To Steering Link Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, install the right turn pressure tube to the steering link assembly.
  SST 09023-38201

  Torque: 22 N*m (224 kgf*cm, 16 ft.*lbf)

  HINT:
  - Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).
  - This torque value is effective when SST is parallel to the torque wrench.
3. Install the power steering link assembly with the 4 bolts and 4 nuts.
  Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)

  NOTE: Because the nut has its own stopper, do not turn the nut. Torque the bolt with the nut fixed.

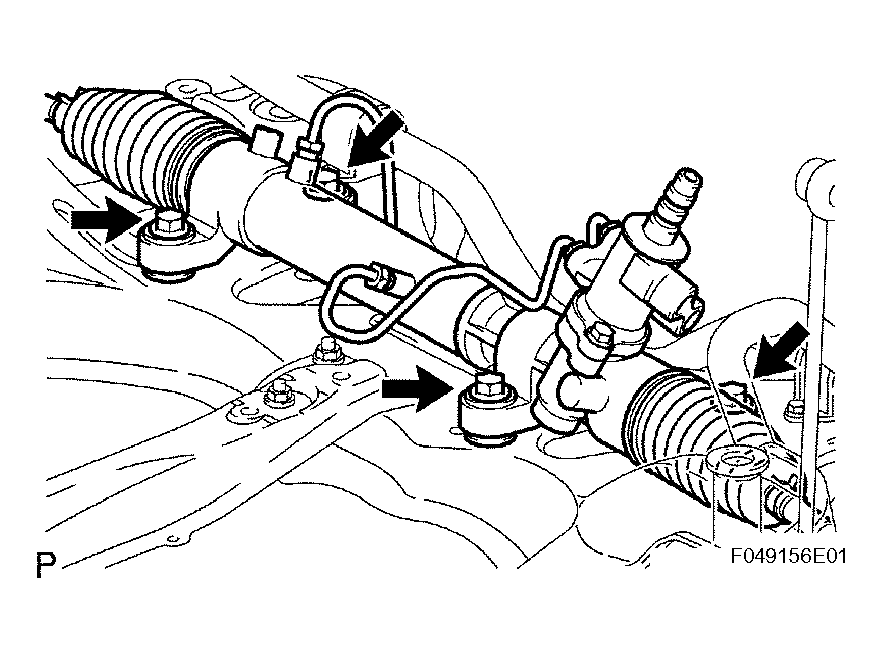

  Fig 2: Installing Power Steering Link Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING INTERMEDIATE SHAFT
1. Align the matchmarks on the intermediate shaft and the pinion shaft.
2. Install the bolt.
  Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)
INSTALL NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY

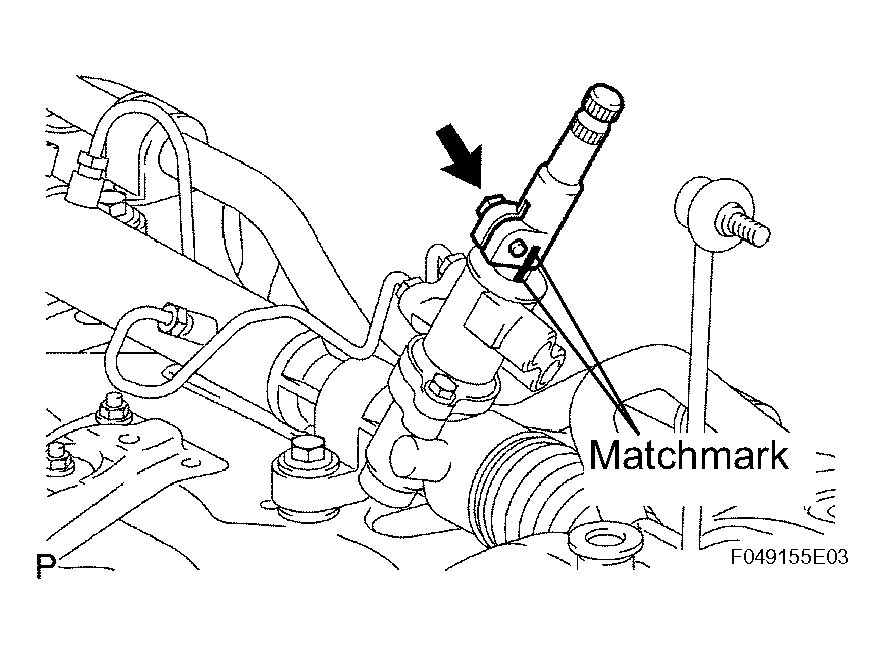

Fig 3: Aligning Matchmarks On Intermediate Shaft And Pinion Shaft
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY
1. Using a transmission jack, support the crossmember with power steering link.
2. Install the crossmember with the 2 nuts.
  Torque: 133 N*m (1,356 kgf*cm, 98 ft.*lbf)

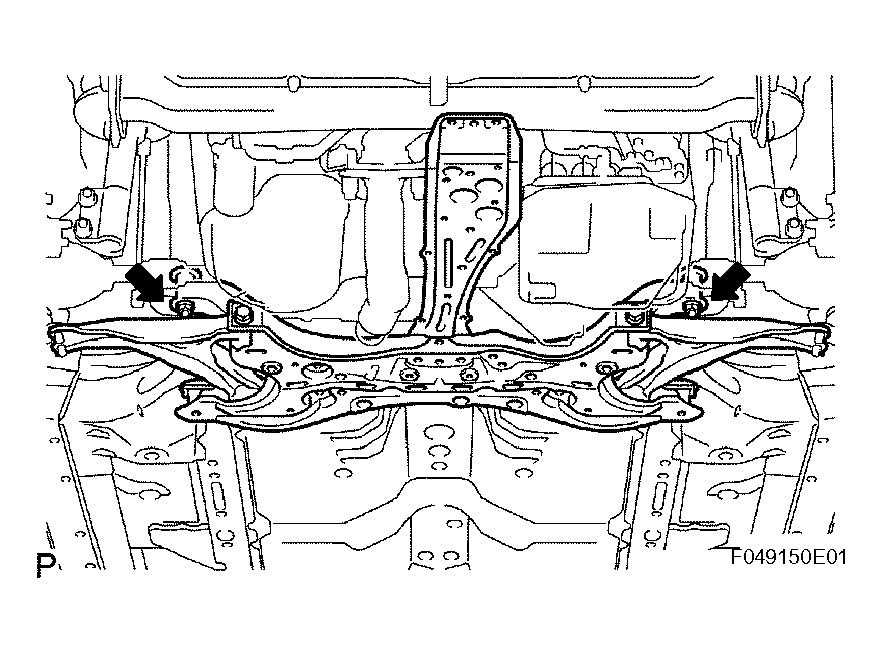

  Fig 4: Installing Crossmember
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the crossmember bracket LH with the 4 bolts.
  Torque: Bolt A
  - 133 N*m (1,356 kgf*cm, 98 ft.*lbf) Bolt B
  - 80 N*m (816 kgf*cm, 59 ft.*lbf)

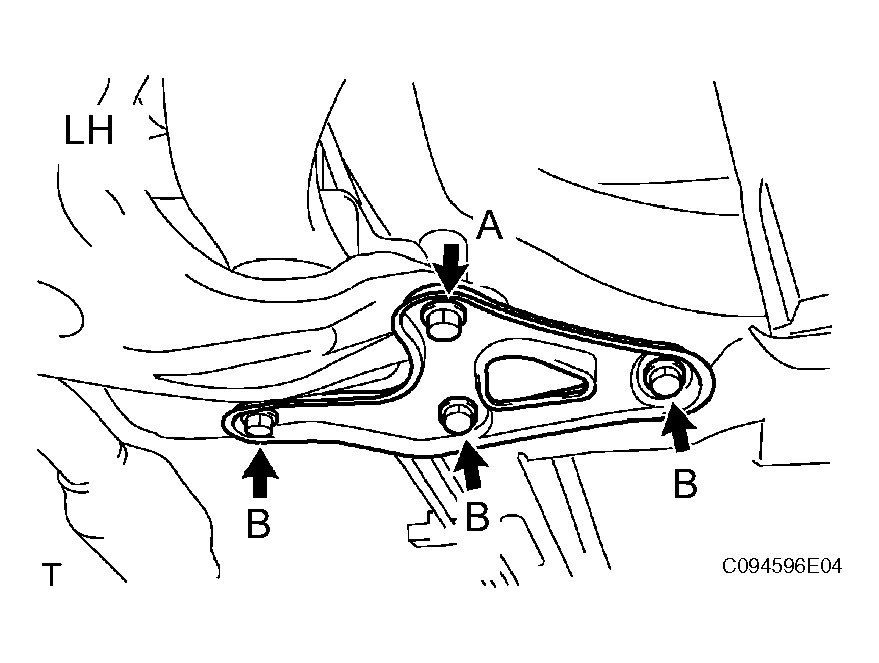

  Fig 5: Installing Crossmember Bracket LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the crossmember bracket RH with the 4 bolts.
  Torque: Bolt A
  - 133 N*m (1,356 kgf*cm, 98 ft.*lbf) Bolt B
  - 80 N*m (816 kgf*cm, 59 ft.*lbf)

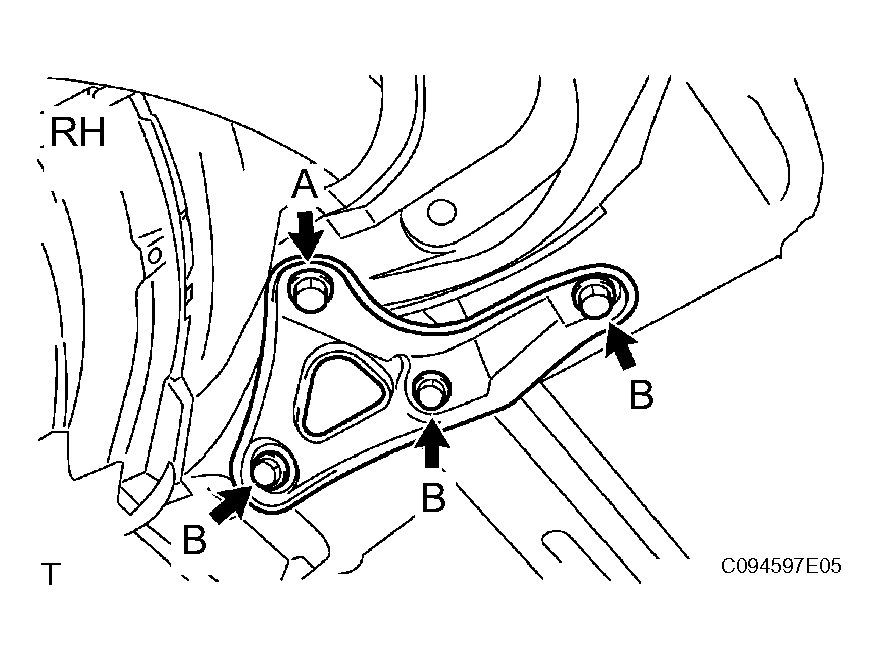

  Fig 6: Installing Crossmember Bracket RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the engine mounting insulator rear to the crossmember with the bolt and the 3 nuts.
  Torque: 65 N*m (663 kgf*cm, 48 ft.*lbf)

  Fig 7: Installing Engine Mounting Insulator Rear To Crossmember
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Install the center member with the 4 bolts.
  Torque: Bolt A
  - 45 N*m (459 kgf*cm, 33 ft.*lbf) Bolt B
  - 72 N*m (734 kgf*cm, 53 ft.*lbf)

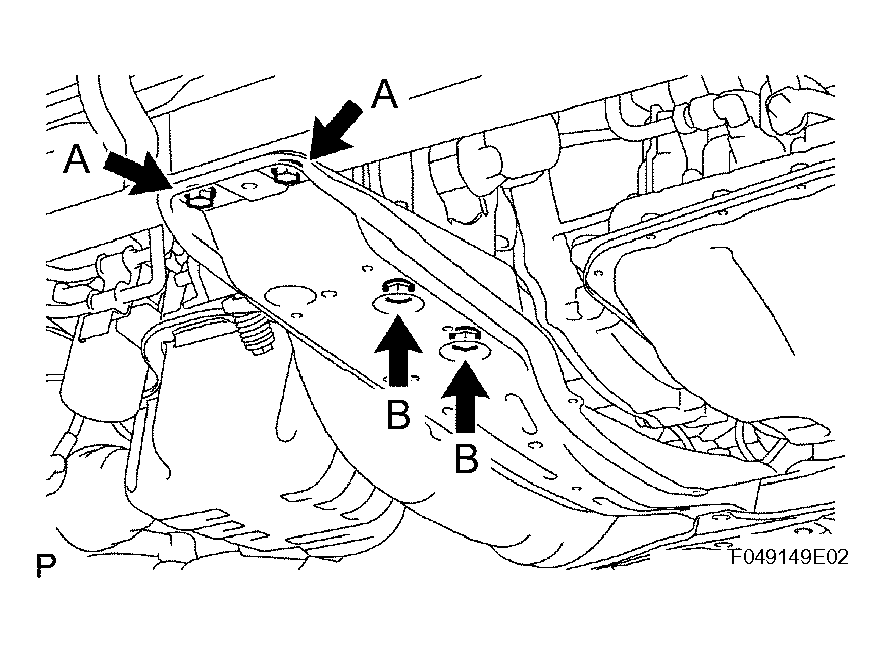

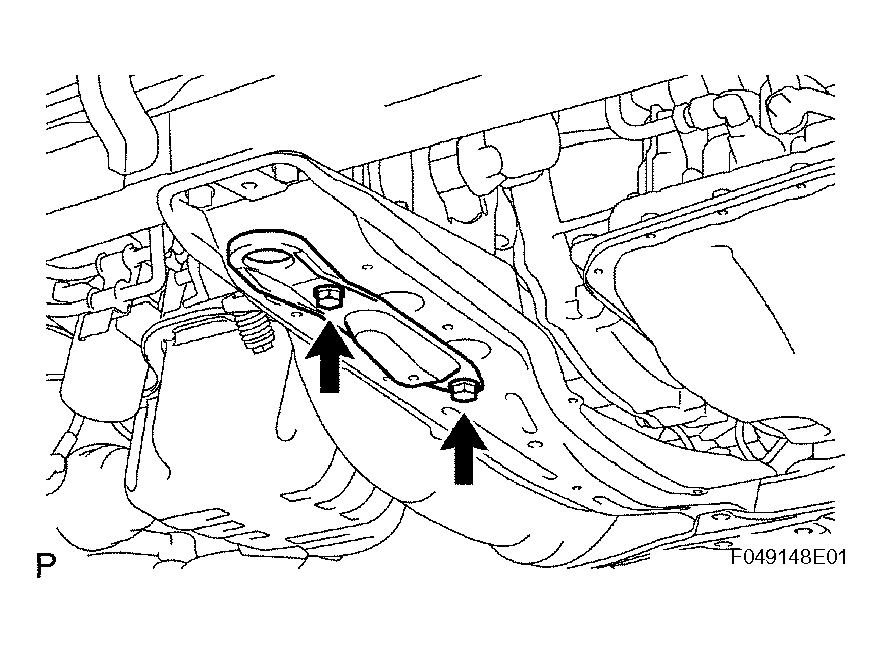

  Fig 8: Installing Center Member
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 HOOK
1. Install the hook with the 2 bolts.
  Torque: 39 N*m (398 kgf*cm, 29 ft.*lbf)
CONNECT FRONT NO. 1 SUSPENSION ARM SUBASSEMBLY LH LOWER (See INSTALLATION )
CONNECT FRONT NO. 1 SUSPENSION ARM SUBASSEMBLY RH LOWER
HINT:

Perform the same procedure as for the LH.

Fig 9: Installing No. 1 Hook
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT FRONT STABILIZER LINK ASSEMBLY LH (See INSTALLATION )
CONNECT FRONT STABILIZER LINK ASSEMBLY RH
HINT:

Perform the same procedure as for the LH.
CONNECT PRESSURE FEED TUBE ASSEMBLY
1. Using SST, connect the pressure feed tube assembly.
  SST 09023-12701

  Torque: 41 N*m (414 kgf*cm, 30 ft.*lbf)

  HINT:
  - Use a torque wrench with a fulcrum length of 345 mm (13.58 in.).
  - This torque value is effective when SST is parallel to the torque wrench.

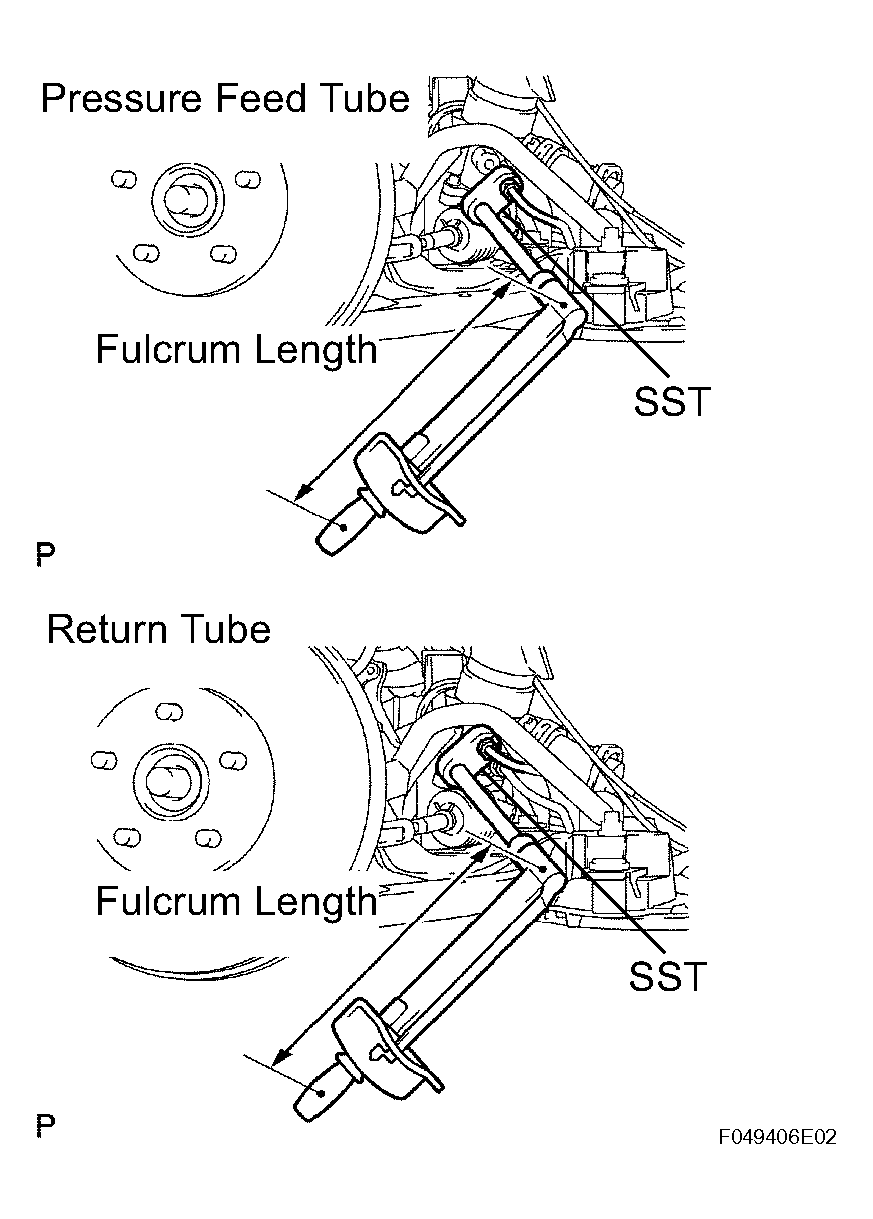

  Fig 10: Connecting Pressure Feed Tube Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the tube clamp with the bolt to the power steering link assembly.

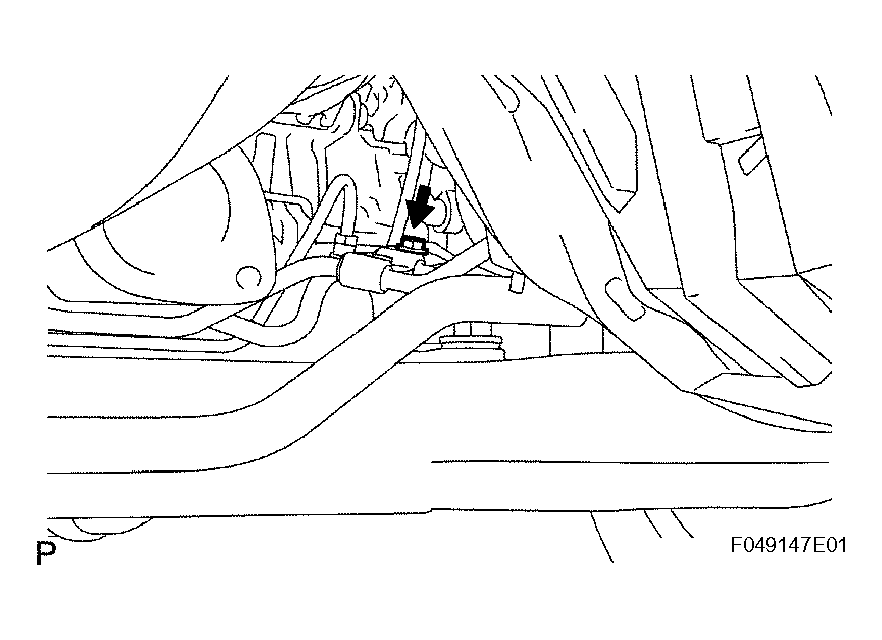

  Fig 11: Installing Tube Clamp With Bolt To Power Steering Link Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 7.8 N*m (80 kgf*cm, 69 in.*lbf)
CONNECT TIE ROD END SUB-ASSEMBLY LH (See INSTALLATION )
CONNECT TIE ROD END SUB-ASSEMBLY RH
HINT:

Perform the same procedure as for the LH.
INSTALL EXHAUST PIPE ASSEMBLY CENTER (See EXHAUST PIPE )
INSTALL FRONT FLOOR PANEL BRACE (See EXHAUST PIPE )
INSTALL FRONT WHEELS
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
CONNECT NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY
CONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
1. Align the matchmarks on the intermediate shaft assembly and the intermediate shaft.
2. Install the bolt.

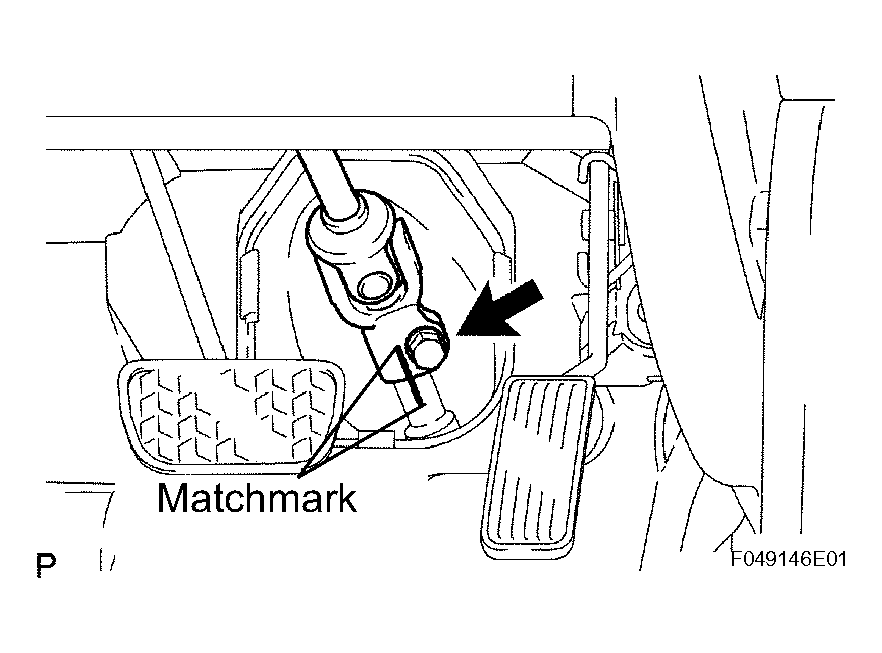

  Fig 12: Aligning Matchmarks On Intermediate Shaft Assembly And Intermediate Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)
INSTALL COLUMN HOLE COVER SILENCER SHEET (See INSTALLATION )
INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY (See INSTALLATION )
ADD POWER STEERING FLUID
BLEED POWER STEERING FLUID (See ON-VEHICLE INSPECTION )
CHECK POWER STEERING FLUID LEVEL IN RESERVOIR (See ON-VEHICLE INSPECTION )
CHECK FOR FLUID LEAKS
INSTALL HOOD SUB-ASSEMBLY (See INSTALLATION )
ADJUST HOOD SUB-ASSEMBLY (See ON-VEHICLE INSPECTION )
INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
1. Inspect and adjust front wheel alignment (see FRONT WHEEL ALIGNMENT ).
INSTALL ENGINE UNDER COVER LH
INSTALL ENGINE UNDER COVER RH
