Lower Instrument Panel: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL LOWER INSTRUMENT PANEL ASSEMBLY
    1. Install the lower instrument panel, and check that the wire harness are not caught.

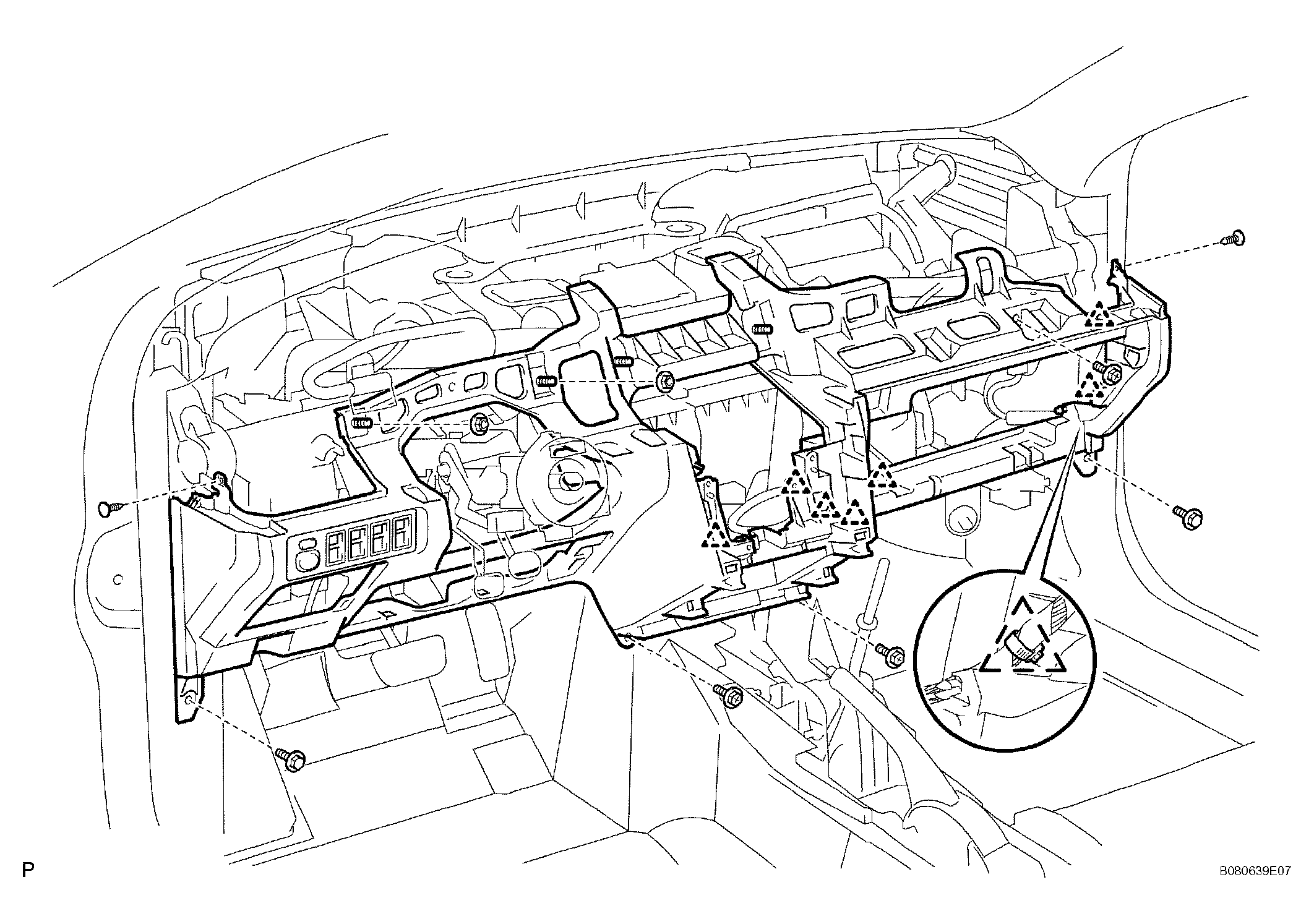

      Fig 1: Installing Lower Instrument Panel Assembly
      G04224551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 3 connectors.
    3. Attach the 7 wire harness clamps.
    4. Install the 2 clips.
    5. Install the 3 screws, 2 bolts and 2 nuts.
    6. Connect the hood lock control cable.
  2. INSTALL NO. 2 HEATER TO REGISTER DUCT
    1. Install the No. 2 heater to register duct with the 3 clips.

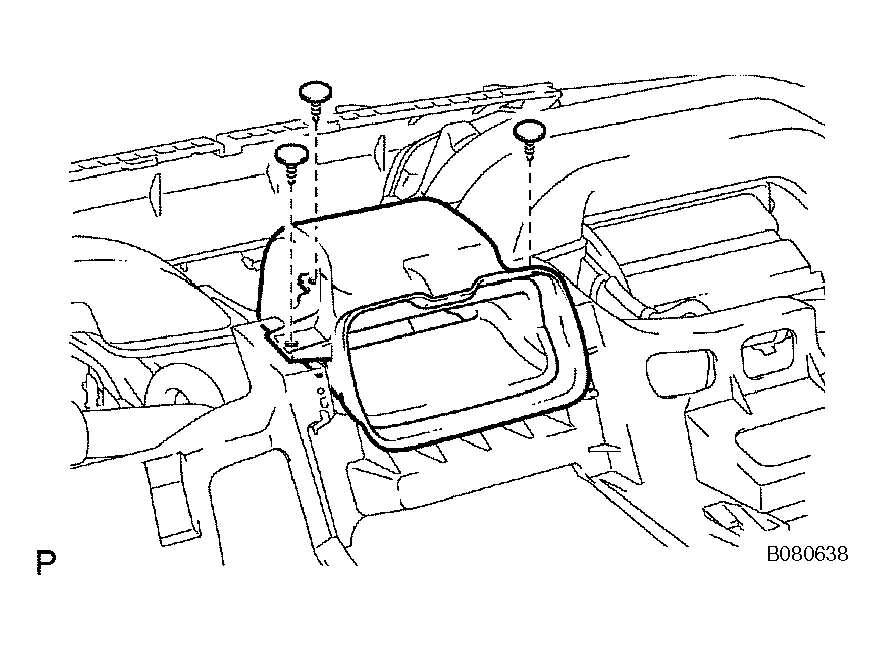

    Fig 2: Installing No. 2 Heater To Register Duct With Clips
    G04224552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
    1. Attach the 2 clips to install the cowl side trim.
    2. Install the clip.

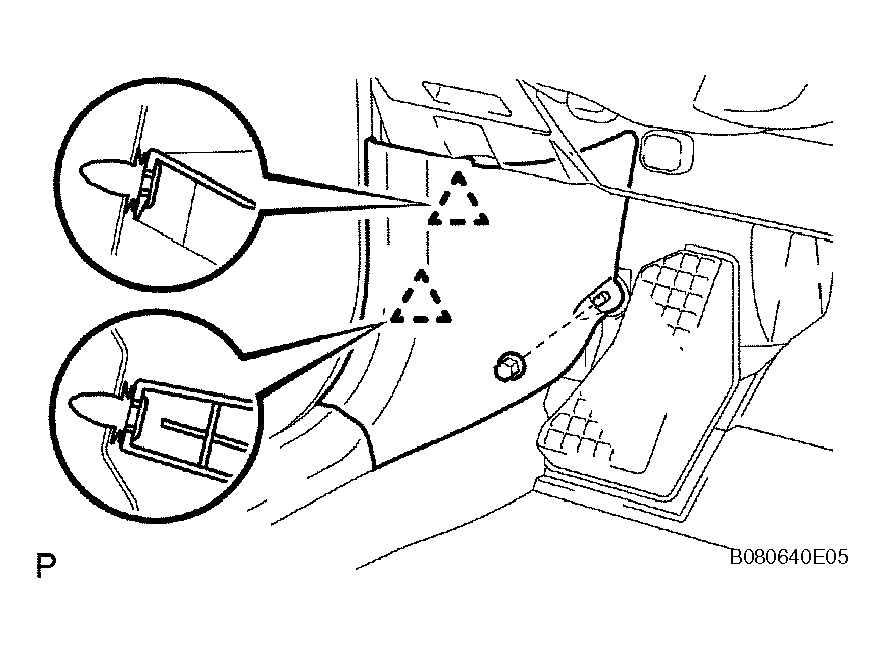

    Fig 3: Installing Cowl Side Trim Clips
    G04224553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedures for the RH side and LH side.

  5. INSTALL FRONT DOOR SCUFF PLATE LH
    1. Attach the 12 claws to install the front door scuff plate LH.
  6. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures for the RH side and LH side.

  7. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Install the instrument panel under cover, as shown in the illustration.
    2. Attach the 2 claws.
  8. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY
    1. Install the driver side knee airbag (see INSTALLATION ).

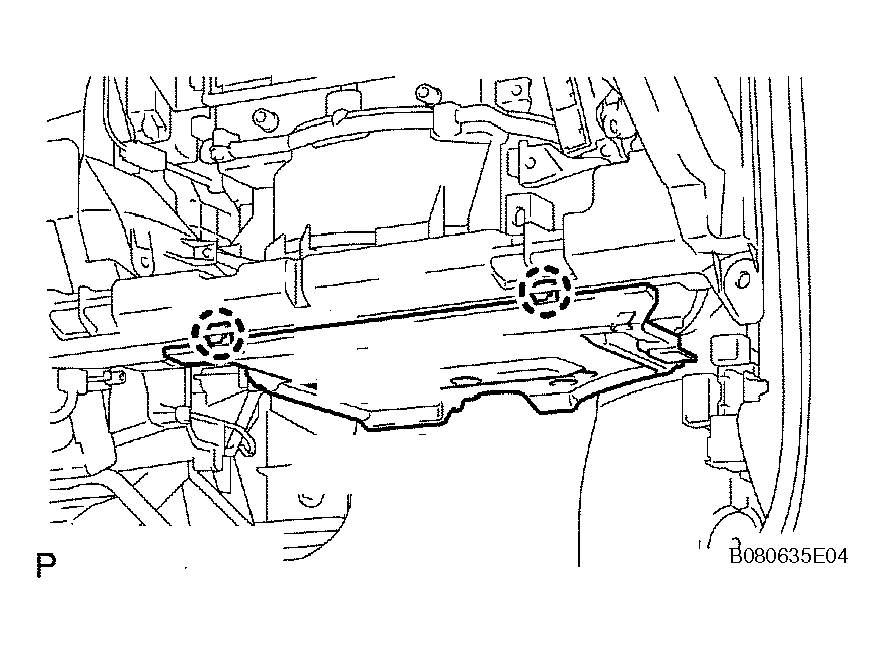

    Fig 4: Installing Instrument Panel Under Cover
    G04224554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL REAR CONSOLE BOX ASSEMBLY
    1. Connect the clamp and install the console box.
    2. Install the 2 bolts.
    3. Manual transaxle:

      Install the 2 screws.

    4. Automatic transaxle:

      Install the 4 screws.

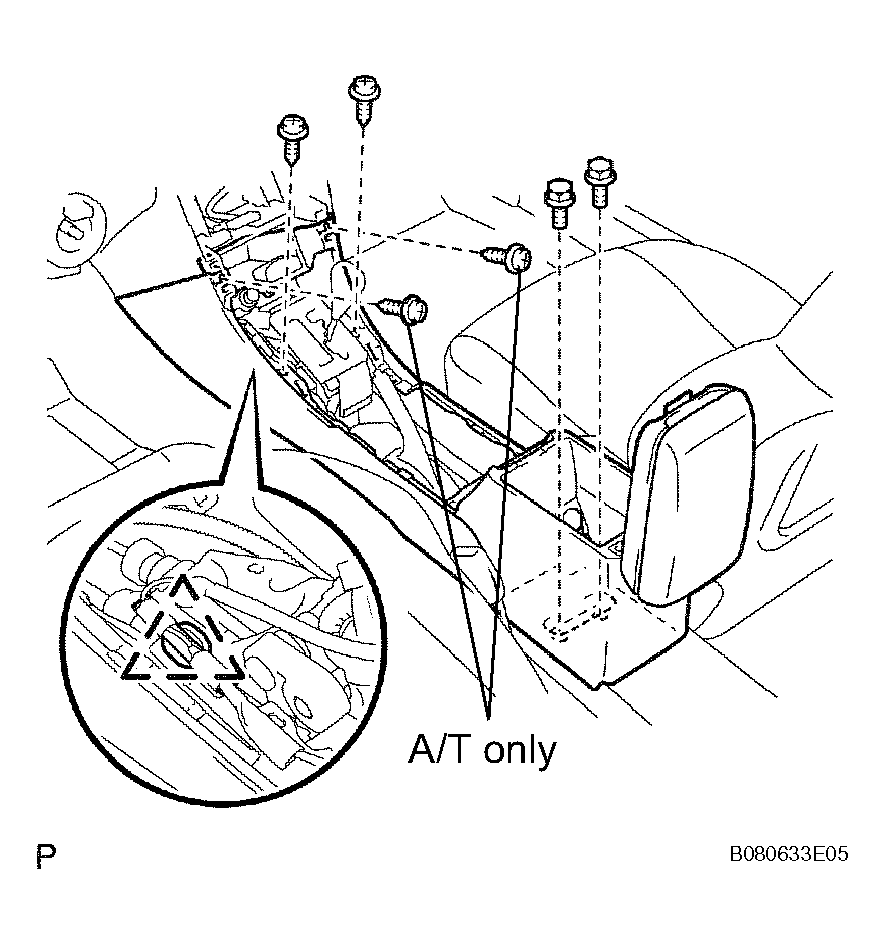

      Fig 5: Installing Rear Console Box Assembly Screws And Bolts (A/T And M/T)
      G04224555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the console box carpet.
    6. Connect the connector.

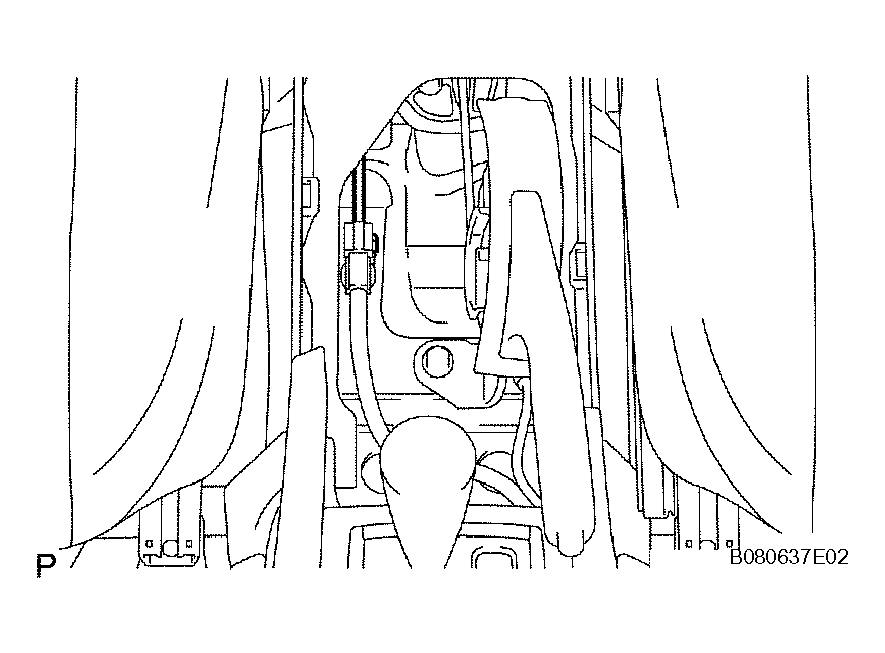

    Fig 6: Connecting Console Box Connector
    G04224556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL CONSOLE UPPER REAR PANEL SUBASSEMBLY
    1. Attach the 7 claws to install the console upper rear panel.
  11. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY (See  INSTALLATION  )
  12. INSTALL HEADLAMP DIMMER SWITCH ASSEMBLY (See  INSTALLATION  )

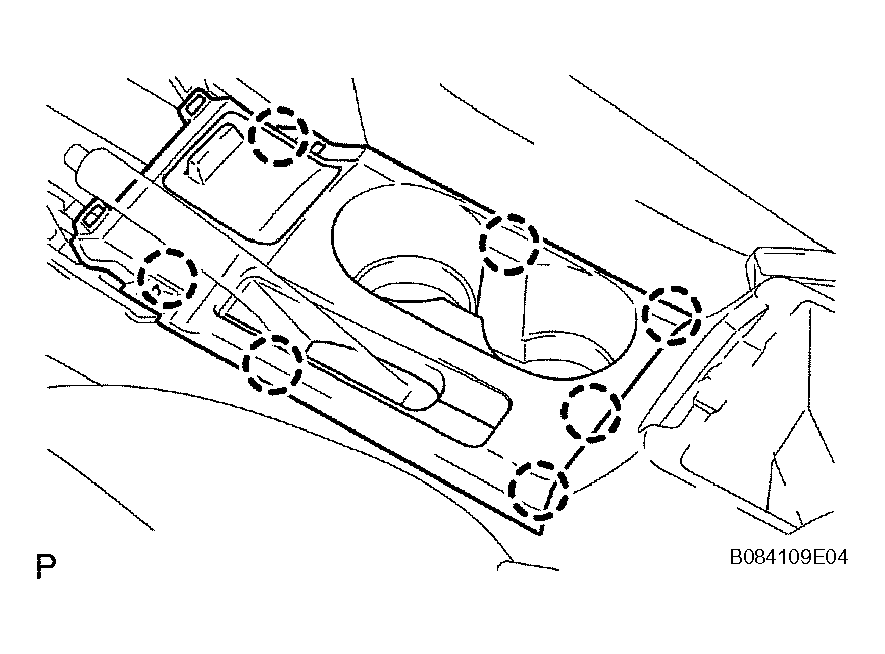

    Fig 7: Installing Console Upper Rear Panel Claws
    G04224557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL STEERING COLUMN COVER
  14. INSTALL STEERING WHEEL ASSEMBLY (See  INSTALLATION  )
  15. INSTALL STEERING WHEEL PAD ASSEMBLY (See  INSTALLATION  )
  16. INSTALL UPPER INSTRUMENT PANEL ASSEMBLY
    1. Install the upper instrument panel (see INSTALLATION  ).
  17. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  18. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  19. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
