Lower Instrument Panel: Reassembly

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL STEREO JACK ADAPTER ASSEMBLY
    1. Connect the connectors.
    2. Install the stereo jack adapter assembly.
  2. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY LOWER
  3. INSTALL INDICATOR LIGHT ASSEMBLY
  4. INSTALL TIRE PRESSURE WARNING RESET SWITCH
  5. INSTALL OUTER MIRROR SWITCH ASSEMBLY WITH BEZEL
  6. INSTALL FUSE BOX OPENING COVER

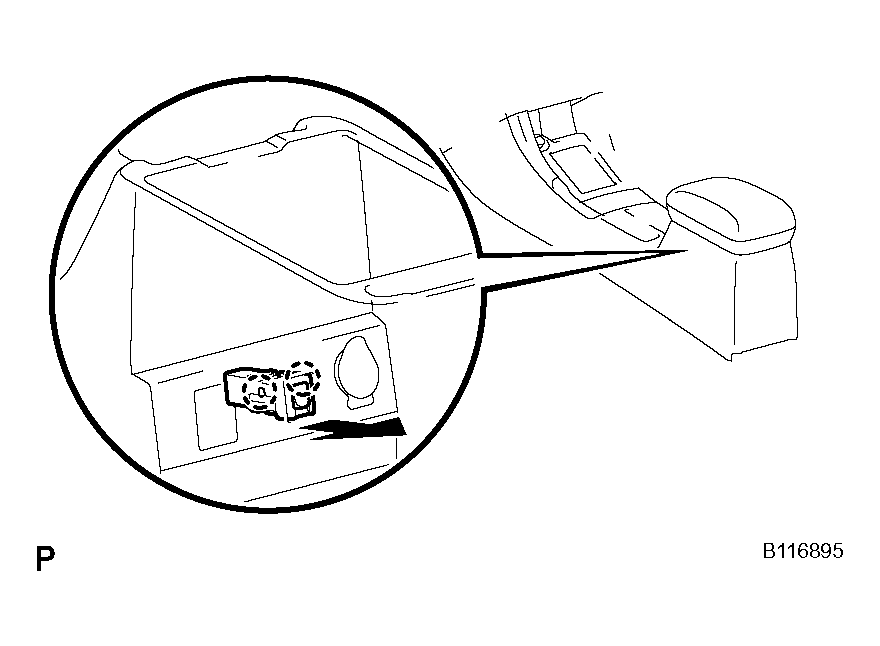

    Fig 1: Installing Stereo Jack Adapter Assembly
    G04224550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
