Fuel Lid Lock Control: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FUEL FILLER OPENING LID LOCK RETAINER
1. Install the lock retainer as shown in the illustration.

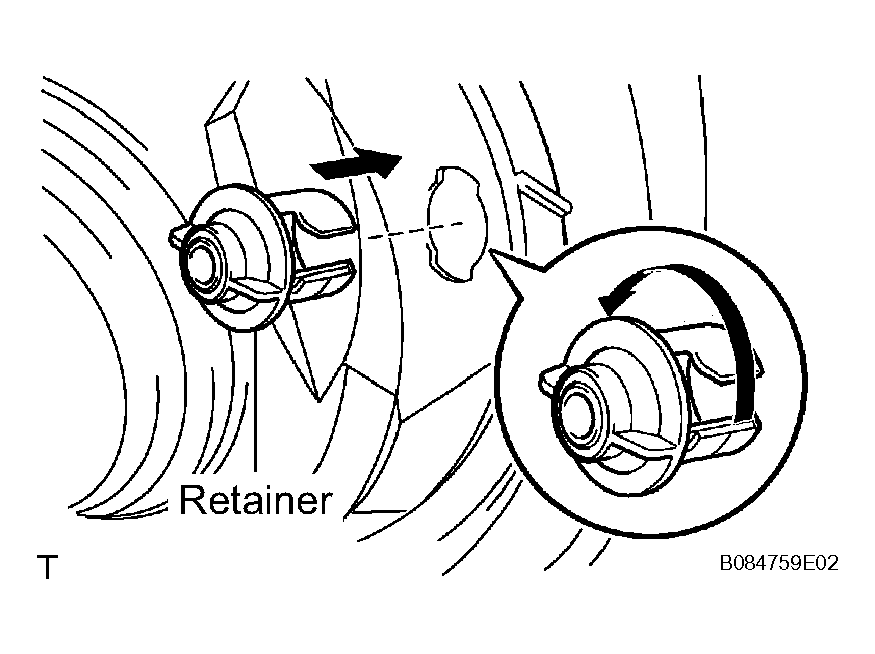

Fig 1: Installing Fuel Filler Opening Lid Lock Retainer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY
1. Install the cable and turn it clockwise, as shown in the illustration.

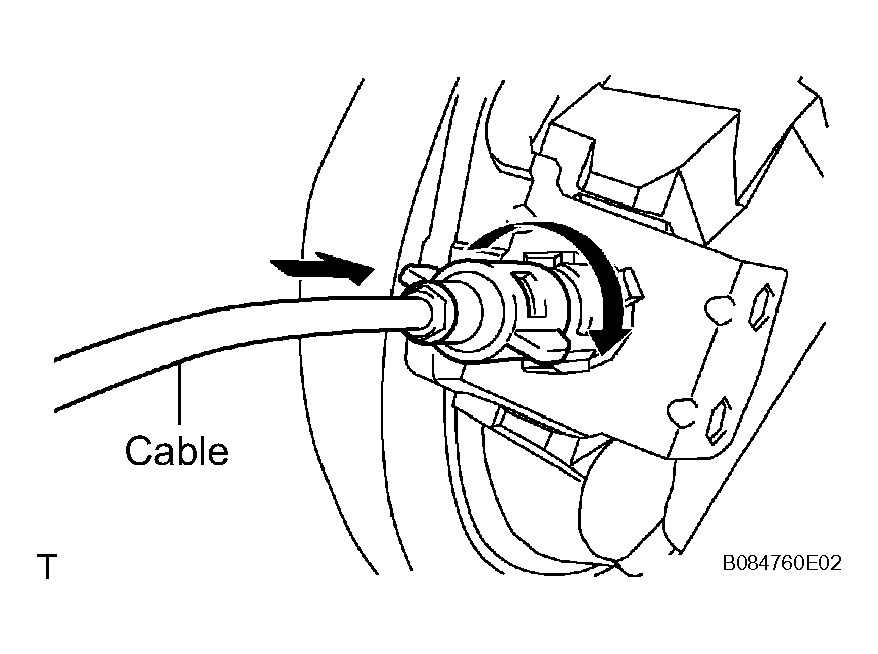

  Fig 2: Installing Fuel Lid Lock Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the cable to the clamps as shown in the illustration.

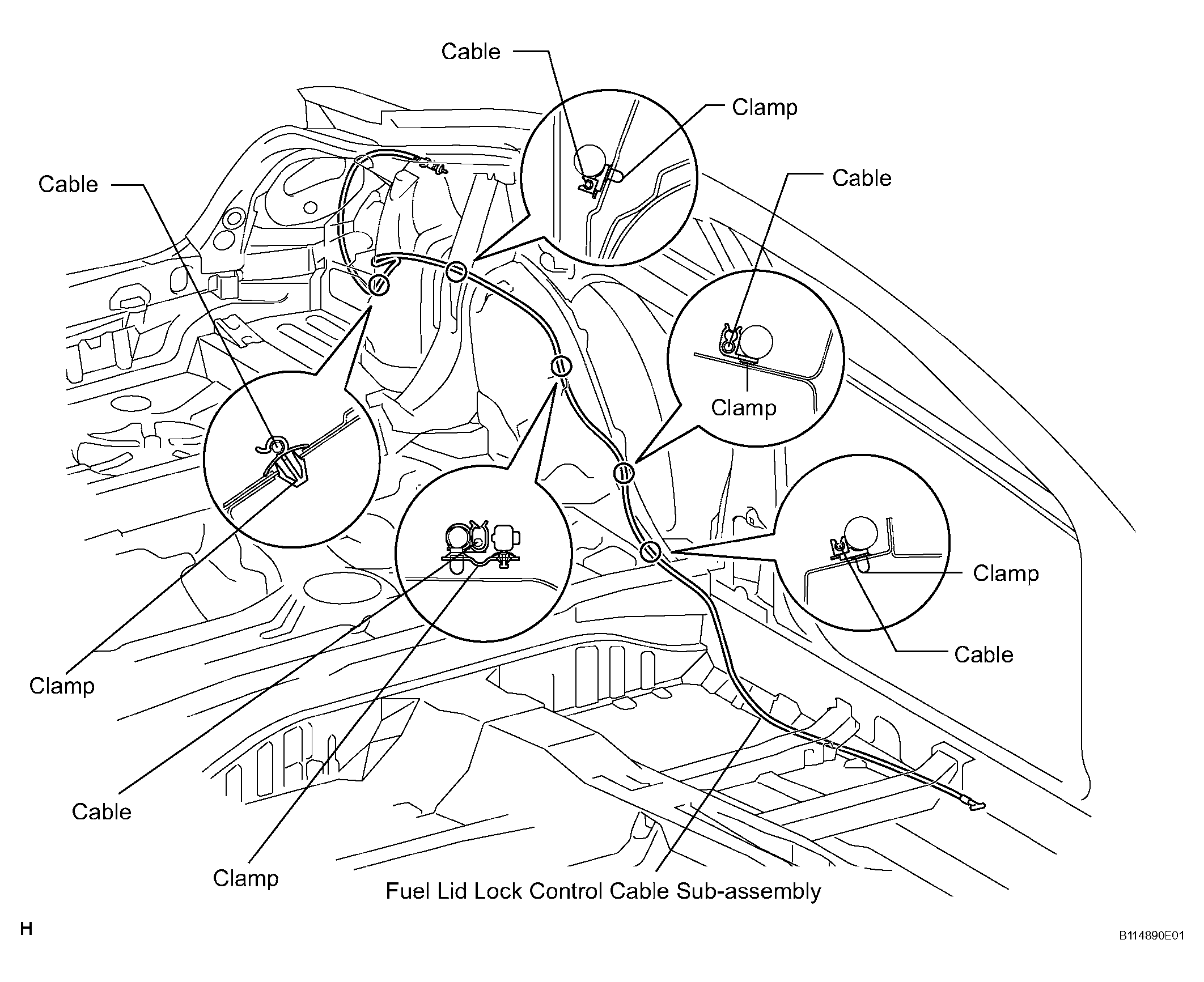

  Fig 3: Installing Fuel Lid Lock Control Cable To Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the floor mat.
INSTALL NO. 1 SIDE TRIM ASSEMBLY LH (See INSTALLATION )
INSTALL FRONT DOOR SCUFF PLATE LH (See INSTALLATION )
INSTALL REAR SEATBACK ASSEMBLY LH (See INSTALLATION )
INSTALL REAR SEAT CUSHION ASSEMBLY (See INSTALLATION )
INSTALL REAR NO. 1 FLOOR BOARD (See INSTALLATION )
INSTALL NO. 1 DECK BOARD (See INSTALLATION )
INSTALL DECK BOARD SUB-ASSEMBLY
INSTALL TONNEAU COVER ASSEMBLY
INSTALL FRONT SEAT ASSEMBLY LH
1. Install the front seat (see INSTALLATION ).
INSTALL FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY
1. Install the cable.
2. Install the cover in the direction indicated by arrow mark.
3. Install the screw.

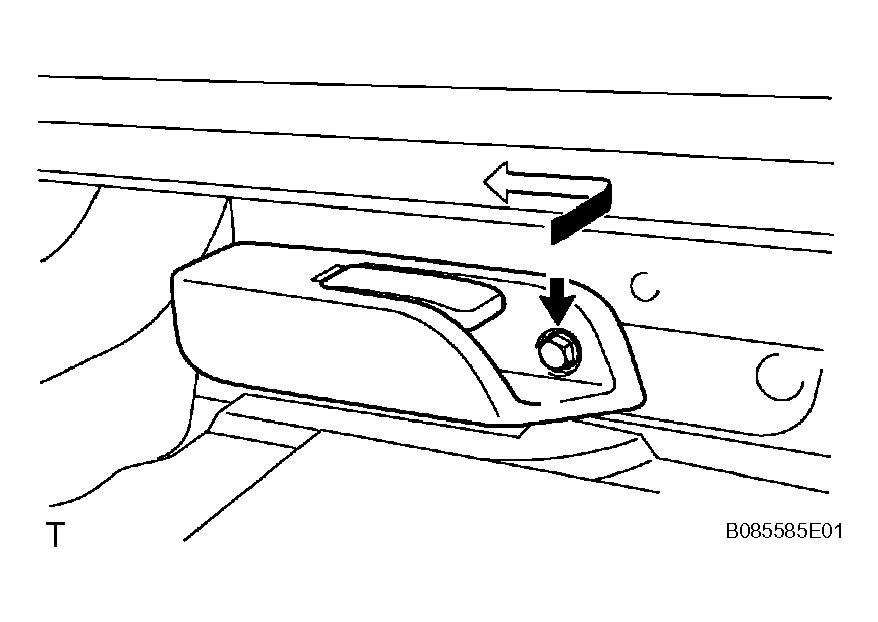

  Fig 4: Installing Fuel Lid Lock Open Lever Cover Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
