Fuel Lid Lock Control: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY
1. Remove the screw.
2. Remove the cover in the direction indicated by the arrow mark in the illustration.
3. Remove the cable.

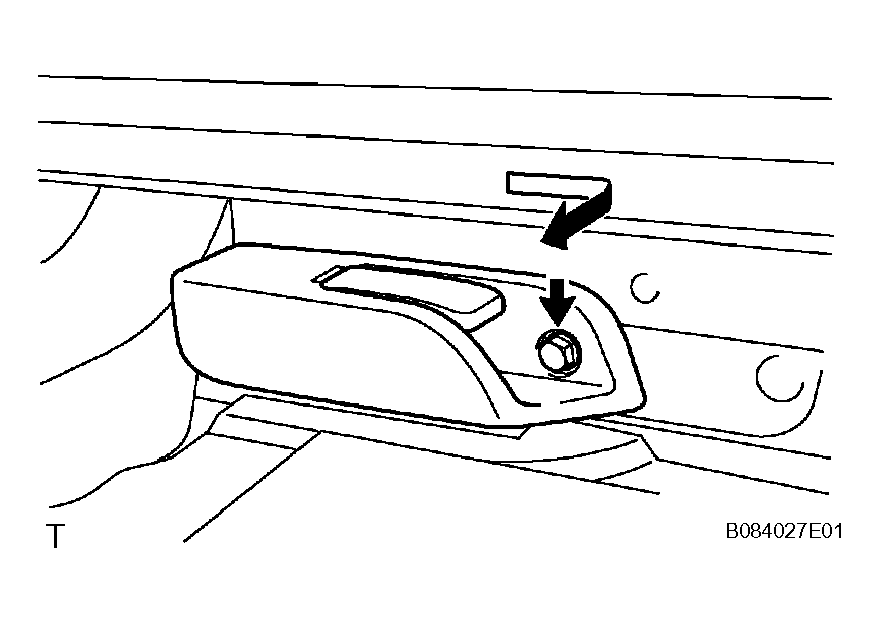

Fig 1: Removing Fuel Lid Lock Open Lever Cover Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SEAT ASSEMBLY LH
1. Remove the front seat (see REMOVAL ).
REMOVE TONNEAU COVER ASSEMBLY
REMOVE DECK BOARD SUB-ASSEMBLY
REMOVE NO. 1 DECK BOARD (See REMOVAL )
REMOVE REAR NO. 1 FLOOR BOARD (See REMOVAL )
REMOVE REAR SEAT CUSHION ASSEMBLY (See REMOVAL )
REMOVE REAR SEATBACK ASSEMBLY LH (See REMOVAL )
REMOVE FRONT DOOR SCUFF PLATE LH (See REMOVAL )
REMOVE NO. 1 SIDE TRIM ASSEMBLY LH (See REMOVAL )
REMOVE FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY
1. Remove the floor mat.
  HINT:

  It is not necessary to fully remove the floor mat. Partially remove it so that the cable can be removed later.
2. Remove the cable from the clamps as shown in the illustration.

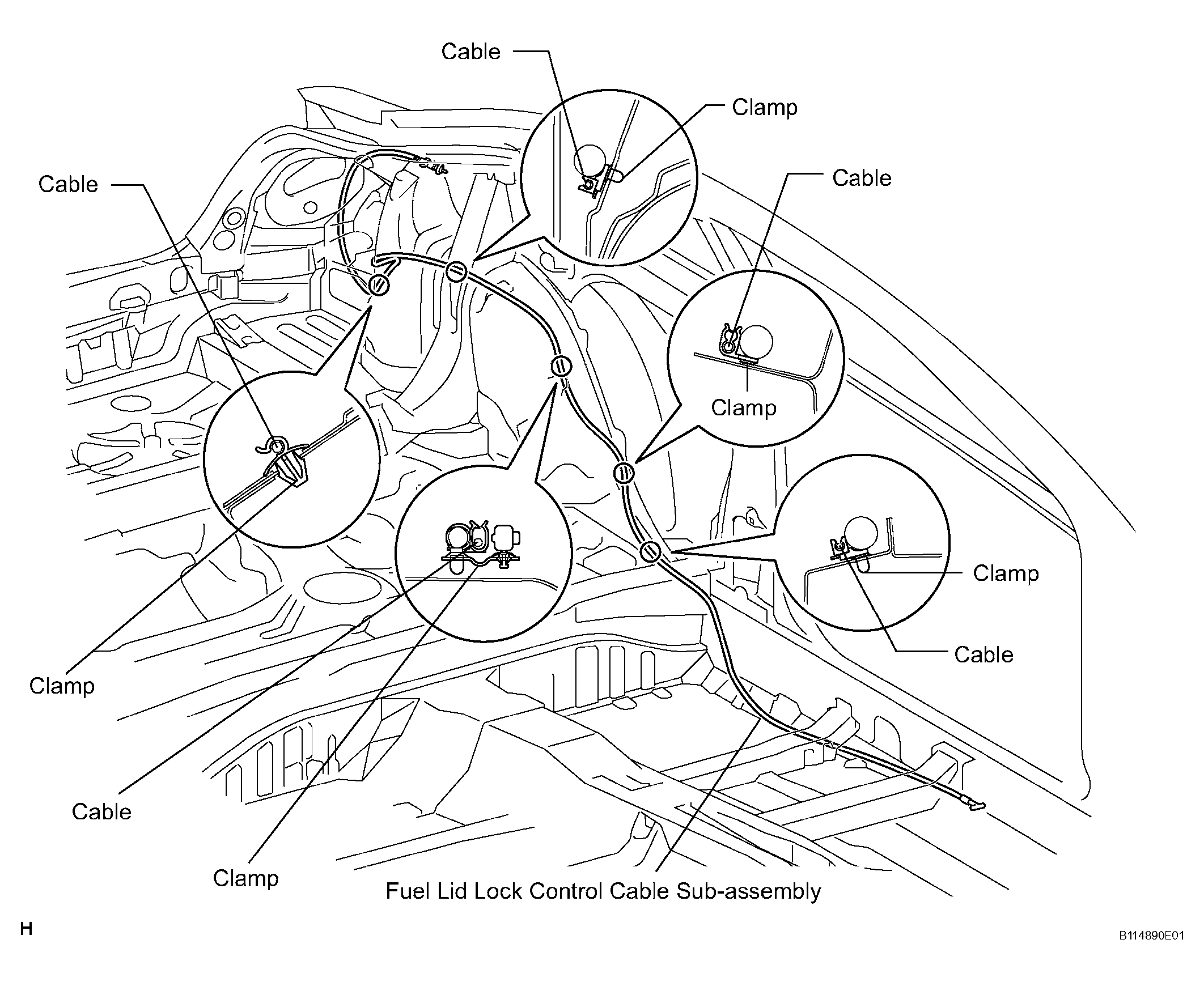

  Fig 2: Removing Fuel Lid Lock Control Cable From Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Detach the claws and remove the cable.

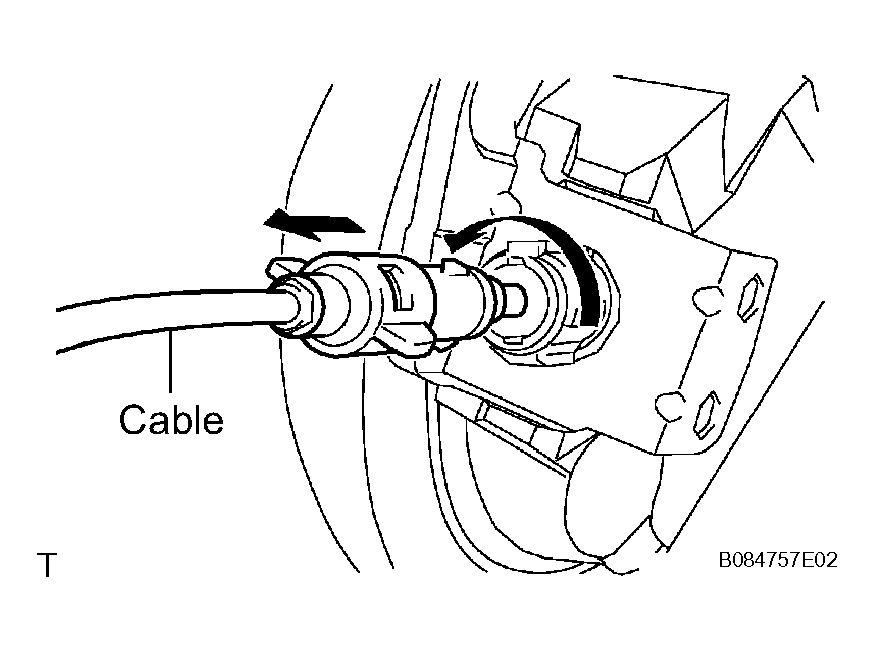

  Fig 3: Removing Fuel Lid Lock Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL FILLER OPENING LID LOCK RETAINER
1. Remove the lock retainer as shown in the illustration.

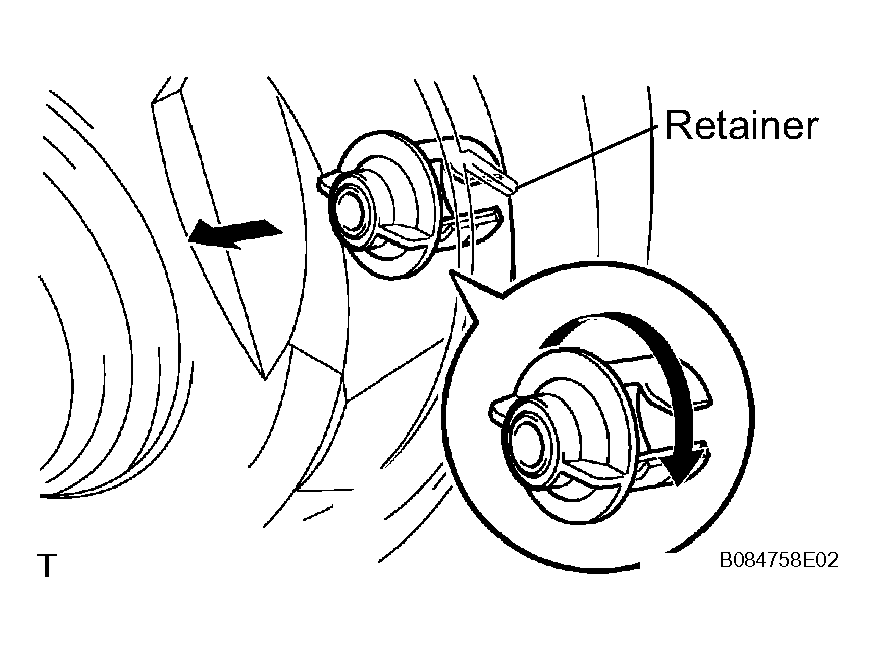

  Fig 4: Removing Fuel Filler Opening Lid Lock Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
