Outer Rear View Mirror: Disassembly

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If the mirror shatters during removal, flying debris may cause injuries. Be sure to wear protective clothing, gloves, glasses, etc. when performing these procedures.

NOTE: When replacing the mirror body, prevent damage to the mirror body by placing a protective cloth on the work area.

DISCONNECT MIRROR
1. Face the mirror holder upward and look at the bottom of the mirror. Find the 2 grooves between the mirror holder and holder base. Insert a screwdriver into a groove and twist it to release the claw. Then repeat for the other groove.
  HINT:

  Tape the screwdriver tip before use.

  CAUTION: To prevent the mirror from shattering and causing flying debris, apply tape to the front of the mirror.

  NOTE: To prevent damage to the vehicle, apply protective tape on the mirror holder base near the lower edge of the mirror. A piece of cloth can also be used.

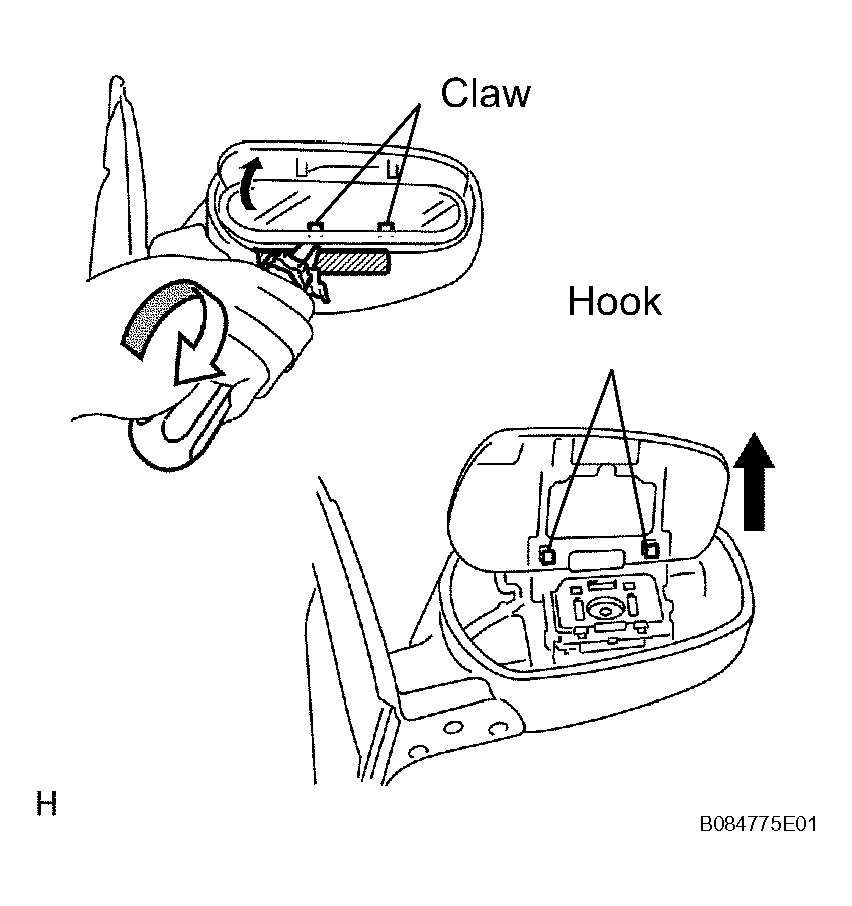

  Fig 1: Releasing Mirror Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Lift up the lower part of the mirror holder and then release the 2 hooks on the top of the mirror.
3. Remove the mirror holder.
REMOVE MIRROR GARNISH
1. Detach the 7 claws.
2. Remove the garnish.
REMOVE SIDE TURN SIGNAL LIGHT LENS LH
1. Disconnect the connector.

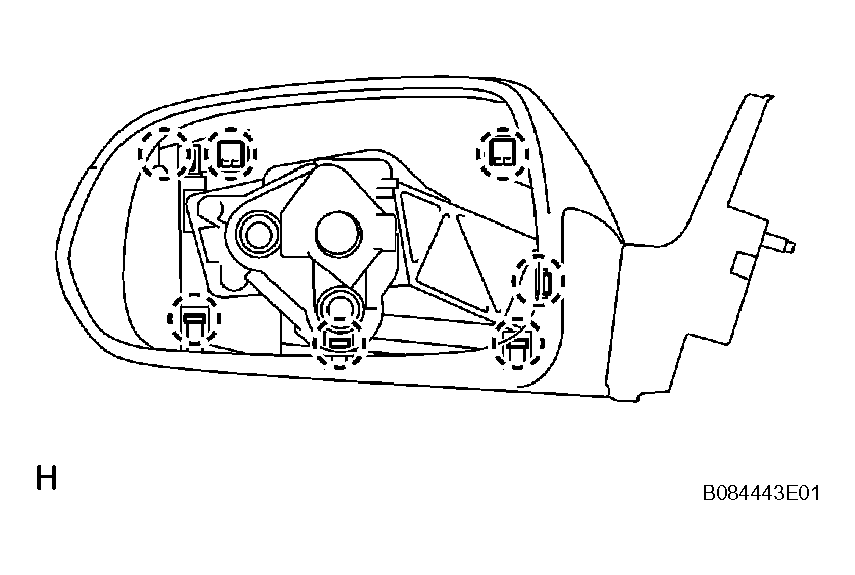

  Fig 2: Detaching Mirror Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 screws and lens.

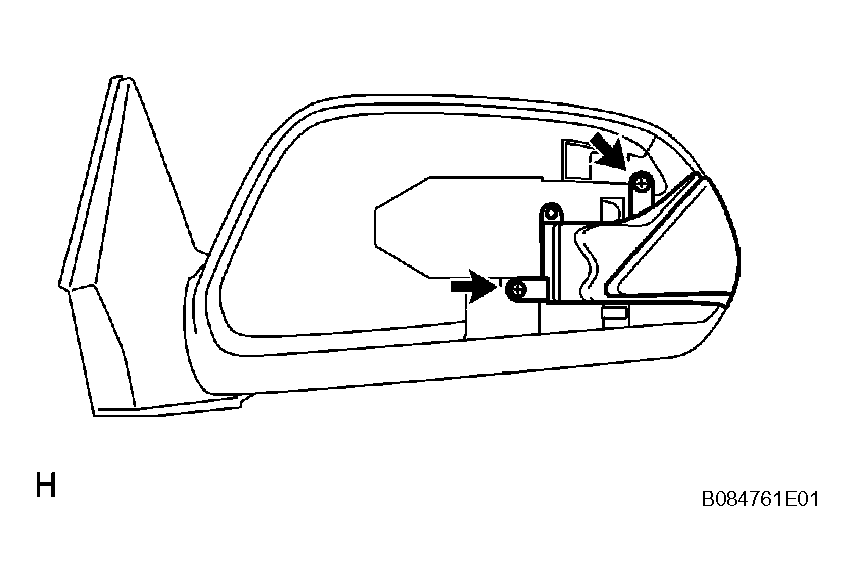

Fig 3: Removing Side Turn Signal Light Lens Screws - LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
