Sliding Roof Switch Assembly: Inspection

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT MAP LIGHT ASSEMBLY

Measure the resistance of the switch.

Standard resistance

TESTER CONNECTION AND SPECIFIED CONDITION

Tester Connection	Switch Condition	Specified Condition
1 (OPE) - 5 (E)	OPEN	Below 1 Ω
2 (CLOSE) - 5 (E)	CLOSE	Below 1 Ω
1 (OPEN) - 5 (E)	OFF	10 kΩ or higher
2 (CLOSE) - 5 (E)	OFF	10 kΩ or higher

If the result is not as specified, replace the map light assembly.

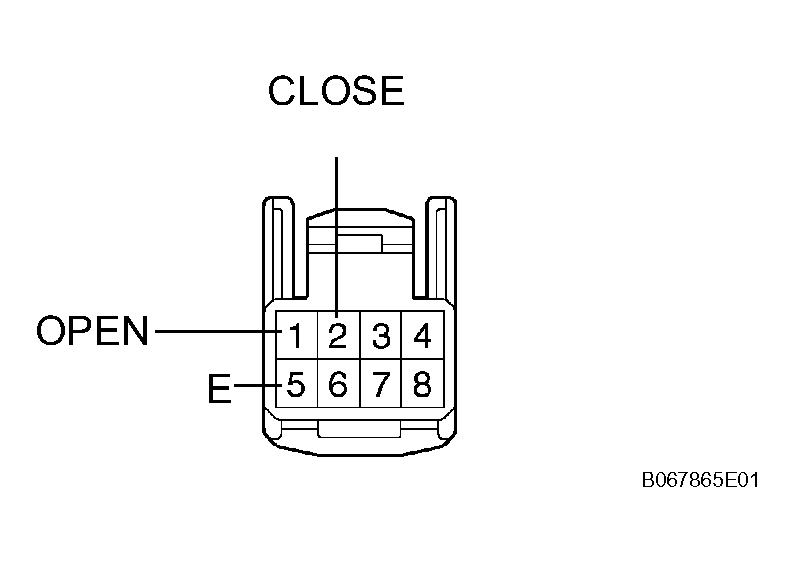

Fig 1: Identifying Map Light Connector Terminals
