Display Diagnosis

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

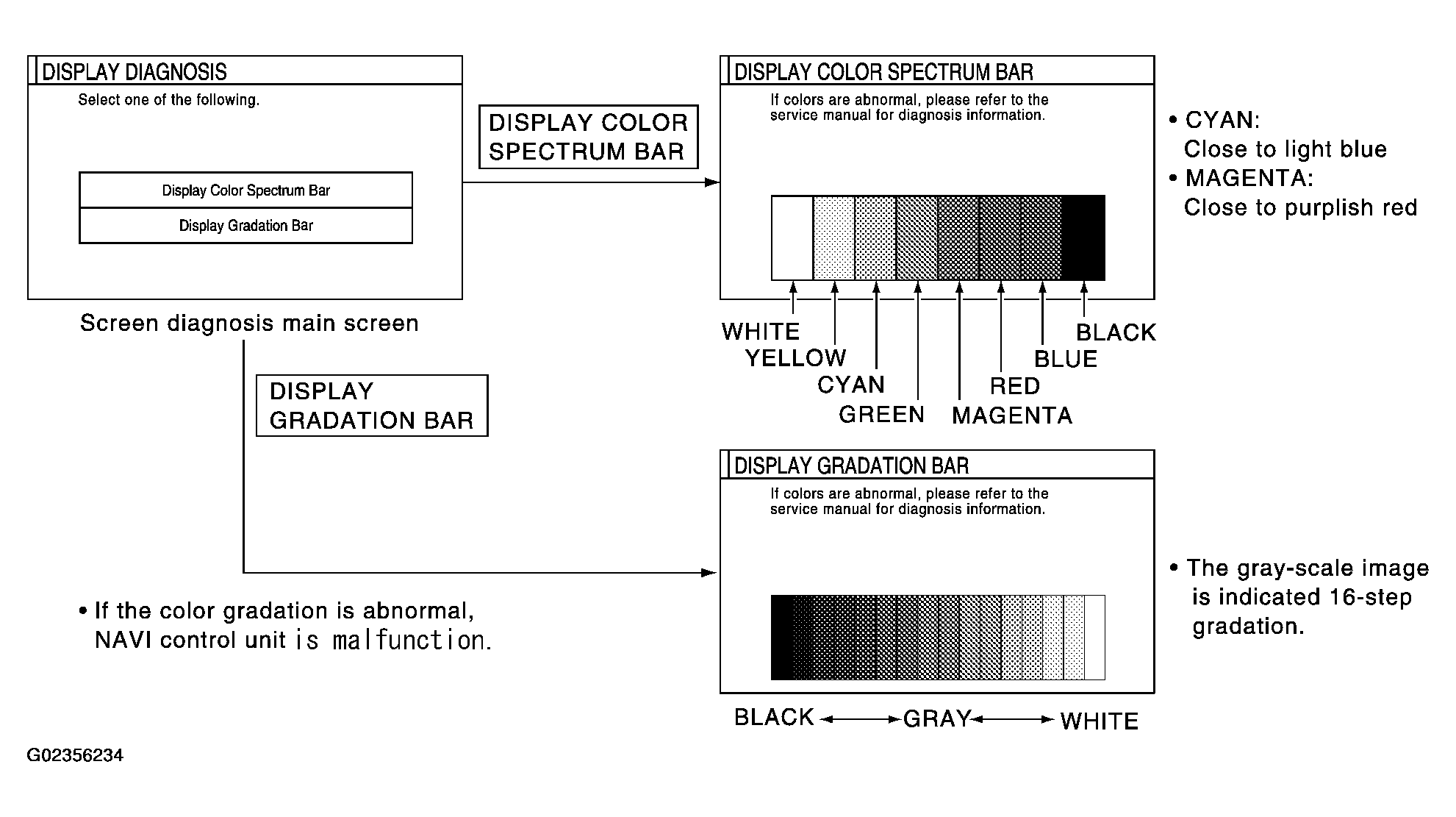

Fig 1: Displaying Diagnosis

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: When Display Color Spectrum Bar screen is completed after "PREVIOUS" switch is pushed, the screen color changes once. This is normal.

When RGB signal error occurred in the RGB system, tone of the color bar will change as follows.
R (red) signal error: Screen looks bluish.

G (green) signal error: Screen looks reddish.

B (blue) signal error: Screen looks yellowish.
When the color of the screen looks unusual, refer to "COLOR OF RGB IMAGE IS NOT PROPER (BLUISH) ", "COLOR OF RGB IMAGE IS NOT PROPER (REDDISH) ", "COLOR OF RGB IMAGE IS NOT PROPER (YELLOWISH) ".
