WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

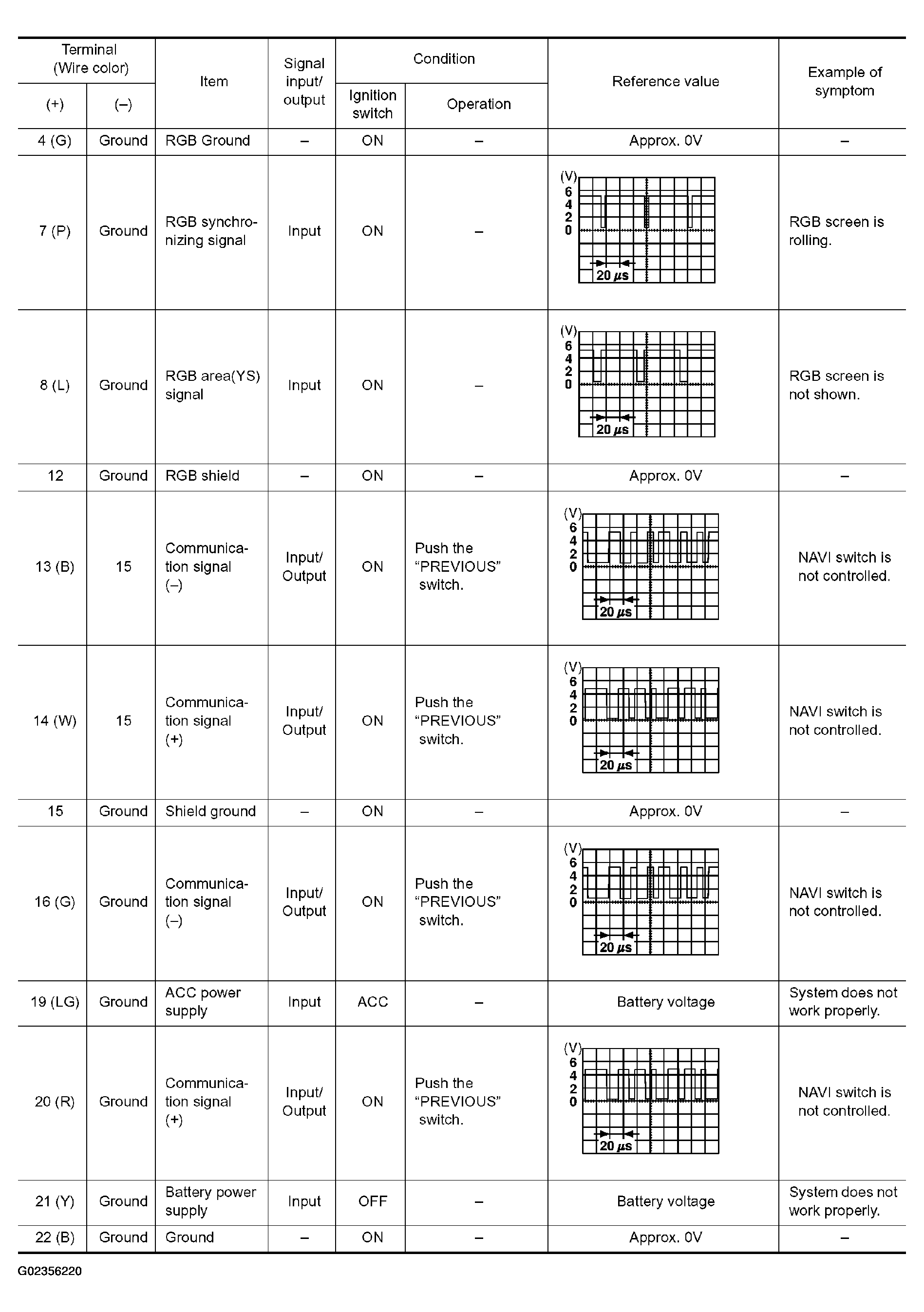

Fig 1: Display Unit Terminals & Reference Value Chart (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

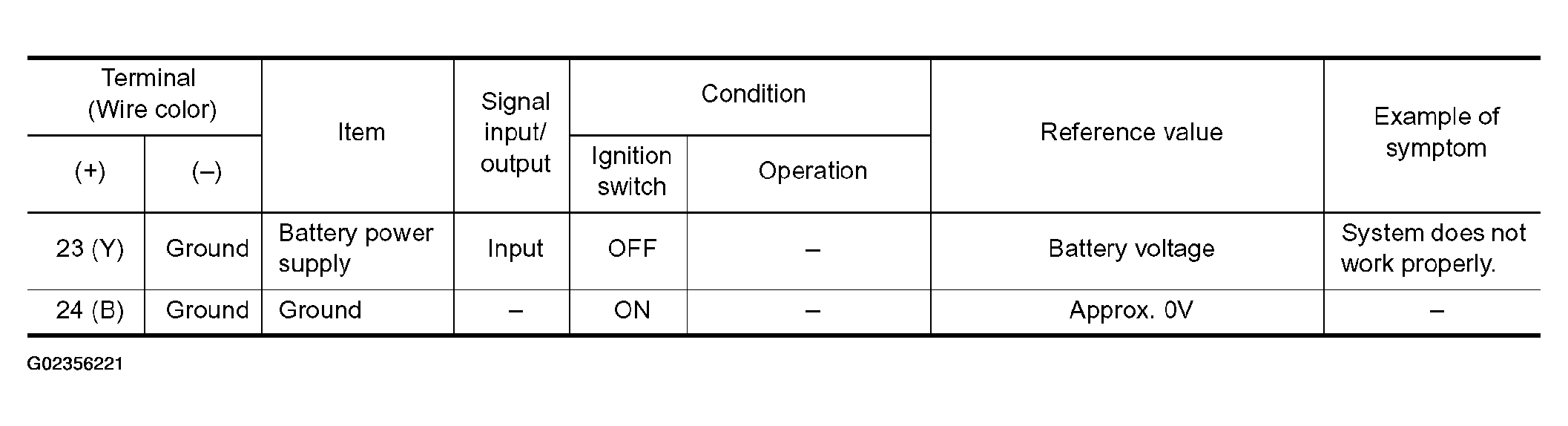

Fig 2: Display Unit Terminals & Reference Value Chart (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Display Unit Terminals & Reference Value Chart (3 Of 3)
