Terminals and Reference Value for NAVI Control Unit

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Measure using circuit tester and oscilloscope.
Measure with connector connected unless otherwise specified.
CAUTION: Confirm voltage between negative terminal on each unit and body ground is approximately 0V.
If ignition ON is required in measurement condition, measures with engine running to prevent battery discharge.

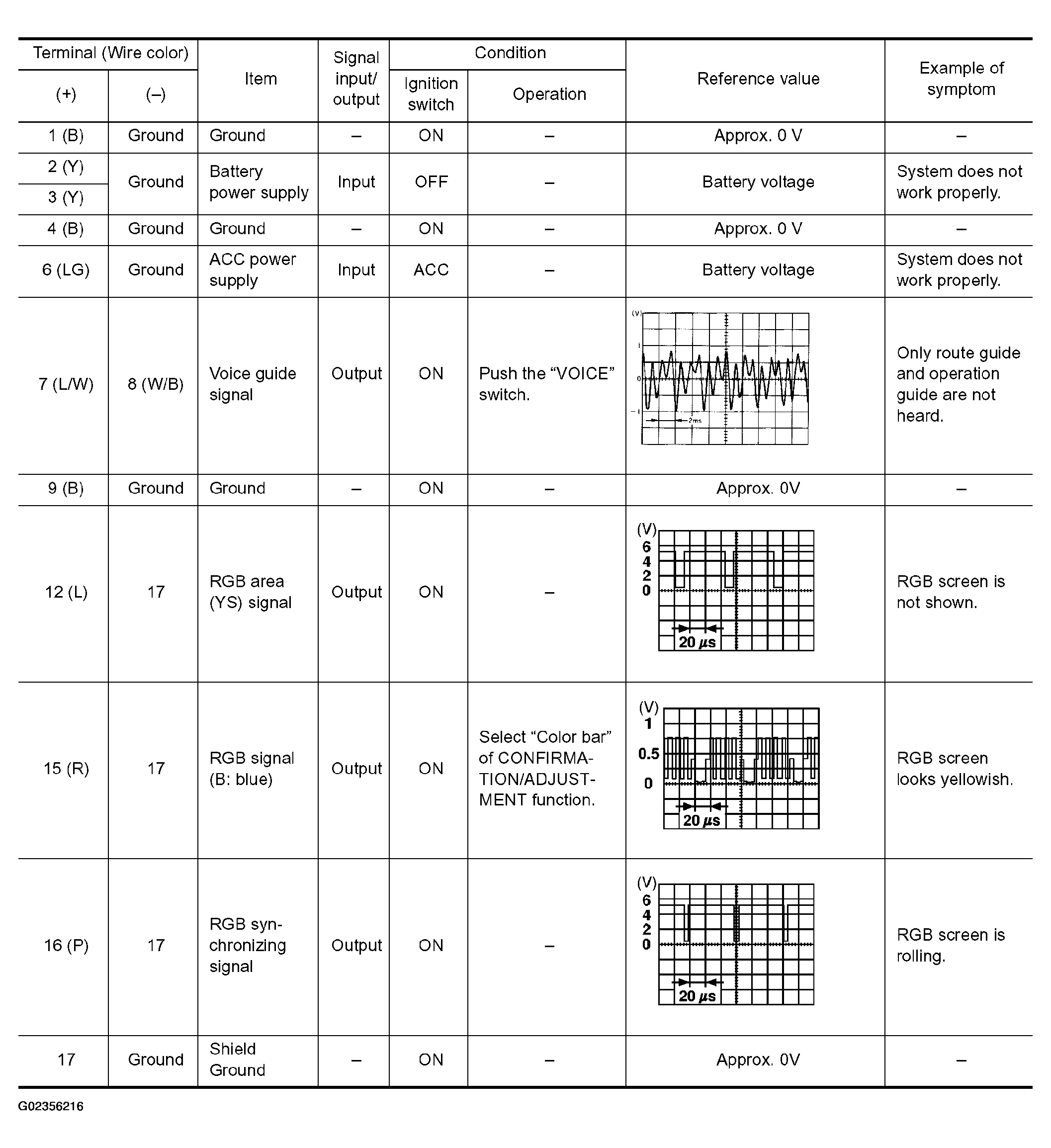

Fig 1: NAVI Control Unit Terminals & Reference Value Chart (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

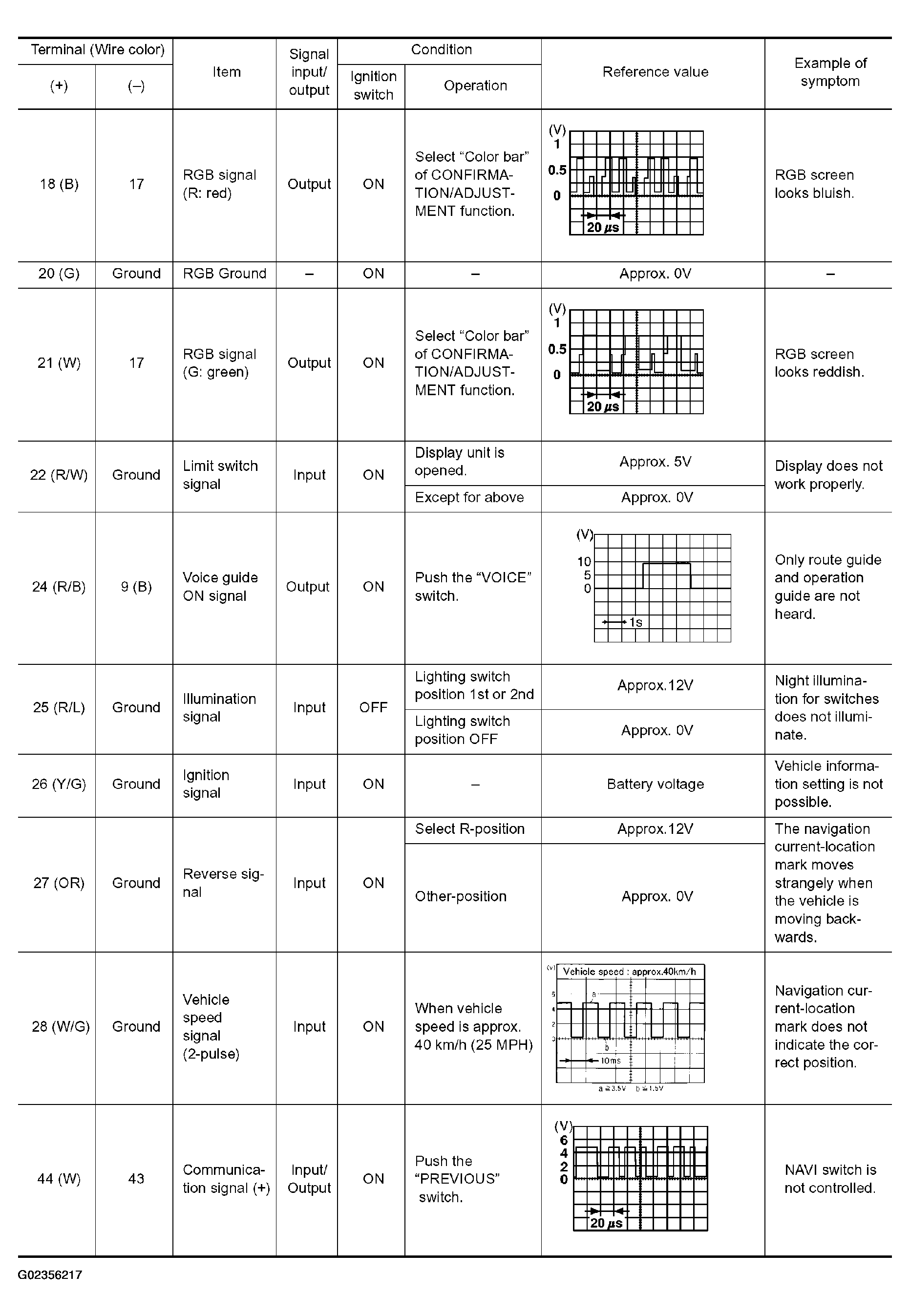

Fig 2: NAVI Control Unit Terminals & Reference Value Chart (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

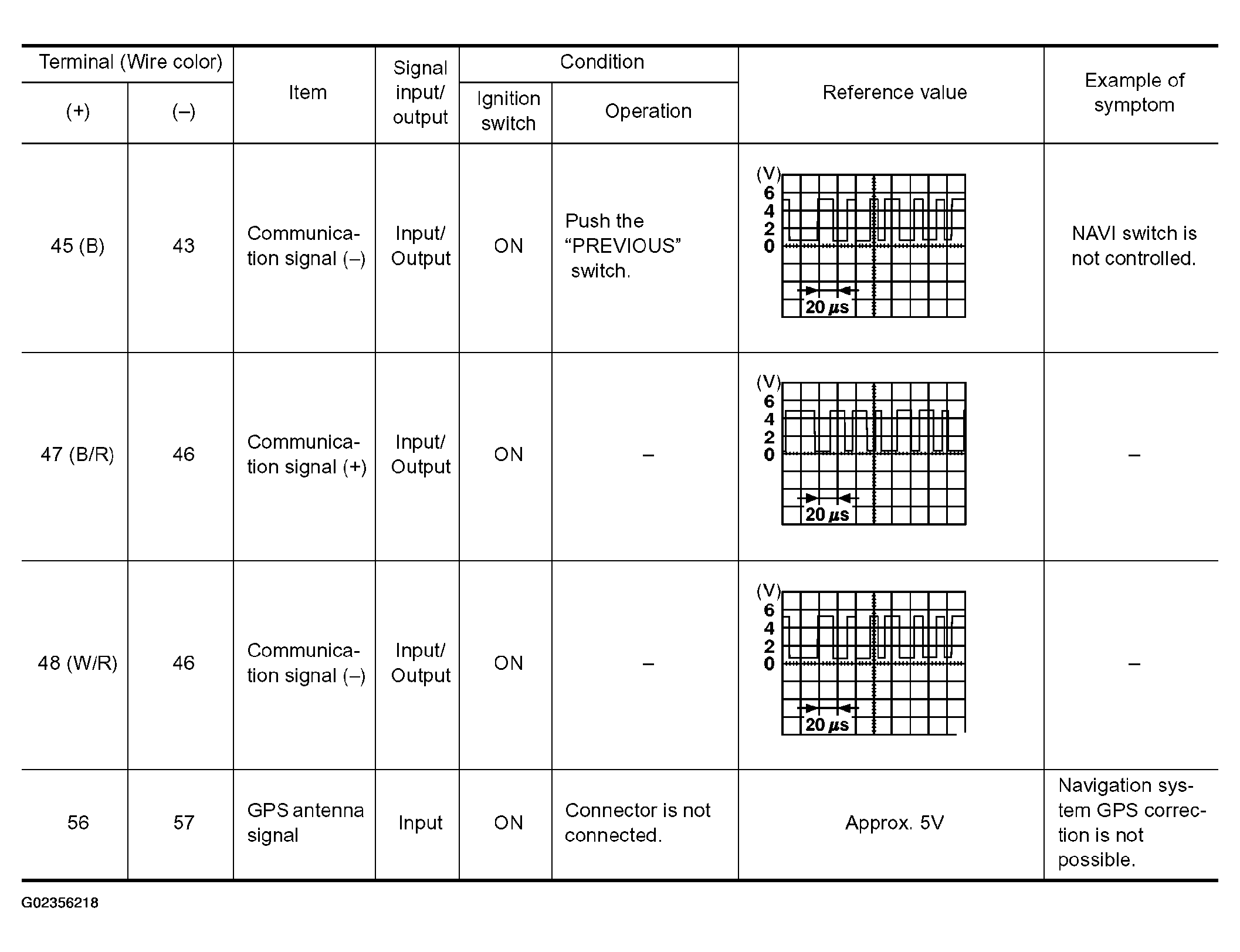

Fig 3: NAVI Control Unit Terminals & Reference Value Chart (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
