Switches And Their Control Function

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Switches And Their Control Function Diagram (1 Of 2)
G04746144

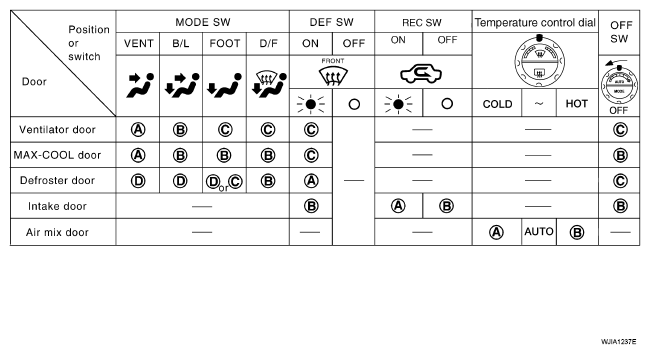

Fig 2: Switches And Their Control Function Diagram (2 Of 2)
G04746145
