Inspection Flow
WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

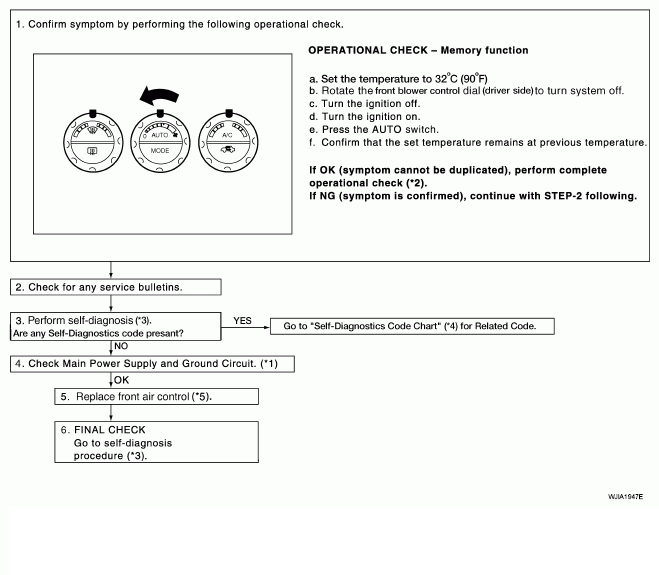

INSPECTION FLOW CHART - MEMORY FUNCTION REFERENCES
| *1. POWER SUPPLY AND GROUND CIRCUIT FOR FRONT AIR CONTROL |
| *2. OPERATIONAL CHECK |
| *3. A/C SYSTEM SELF-DIAGNOSIS FUNCTION |
| *4. SELF-DIAGNOSIS CODE CHART |
| *5. CONTROL UNIT |
