Switches And Their Control Function
WARNING:
This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

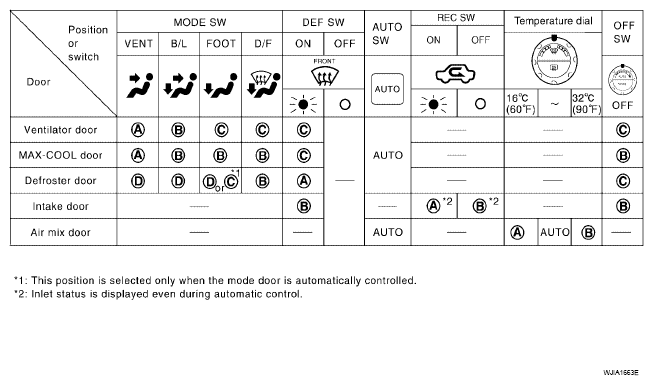

Fig 1: Function Diagram - Switches (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

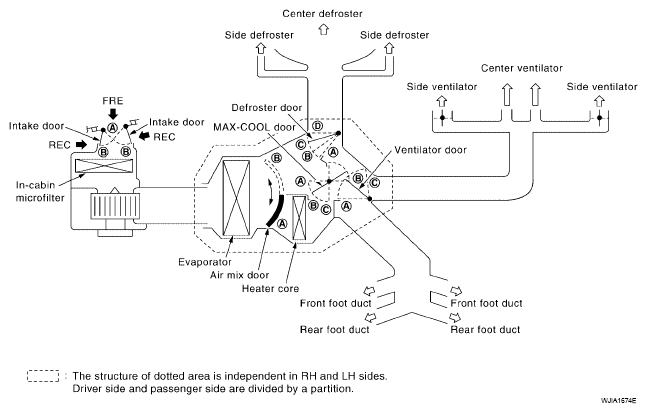

Fig 2: Function Diagram - Switches (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
