Installation (M/T Models)

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Installation is in the reverse order of removalafter the following.
    • Be sure the dowel pin is installed in the crankshaft.
    • When installing the flywheel (3) to the crankshaft(2), be sure to correctly align crankshaft side dowel pin (1) to the flywheel side dowel pin hole (A) as shown below.
      • Oil seal (4)

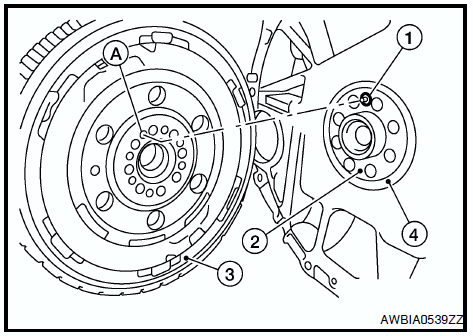

        • Fig 1: Aligning Crankshaft Dowel Pin With Flywheel
        G00529963Courtesy of NISSAN NORTH AMERICA, INC.
    • There is a locator mark (B) on the clutch cover side of the flywheel (4). Refer to this for ease of installation.
      • Crankshaft dowel pin (1)
      • Oil seal (2)
      • Crankshaft (3)
      • Flywheel (4)
      • Dowel pin hole (A)
      • Dowel pin locator mark (B)

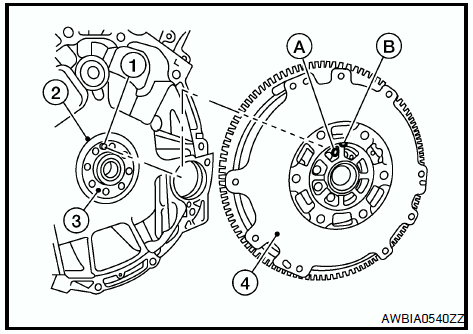

        • Fig 2: Identifying Locator Mark On Clutch Cover
        G00529964Courtesy of NISSAN NORTH AMERICA, INC.
    • Tighten the flywheel bolts in a diagonal pattern in two steps. Refer to figure below.

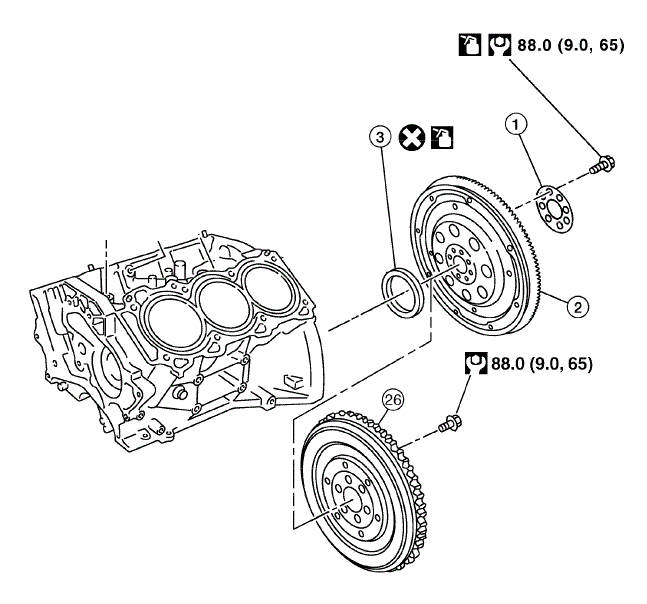

      • Fig 3: Exploded View Of Drive Plate And Flywheel With Torque Specifications
      G00529965Courtesy of NISSAN NORTH AMERICA, INC.
