Removal and Installation: Notes

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

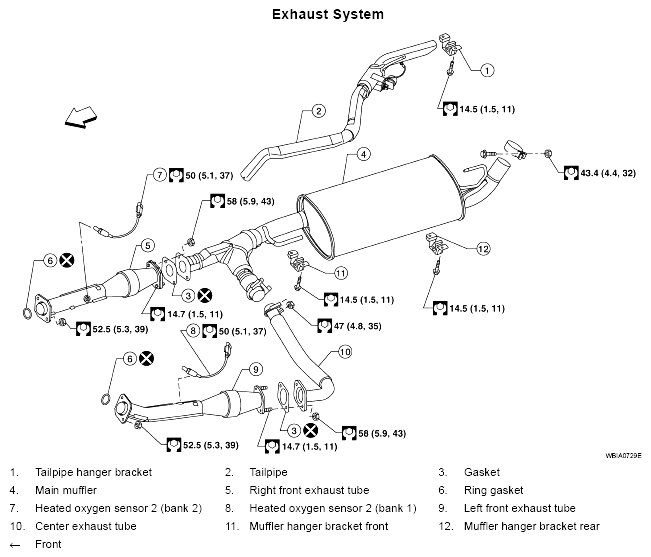

Fig 1: Exhaust System Replacement Components With Torque Specifications
G04912270
CAUTION:
  • Be sure to use genuine exhaust system parts or equivalents which are specially designed for heat resistance, corrosion resistance, and shape.
  • Perform the operation with the exhaust system fully cooled. The system will be hot just after the engine stops.
  • Be careful not to cut your hand on the heat insulator edge.
