Tightening Torque

WARNING: This page is about a different car, the 2004 Infiniti M45 and 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

*1: Parts to be tightened in particular orders.

1)-: Order of tightening when tightening two or more times separately.

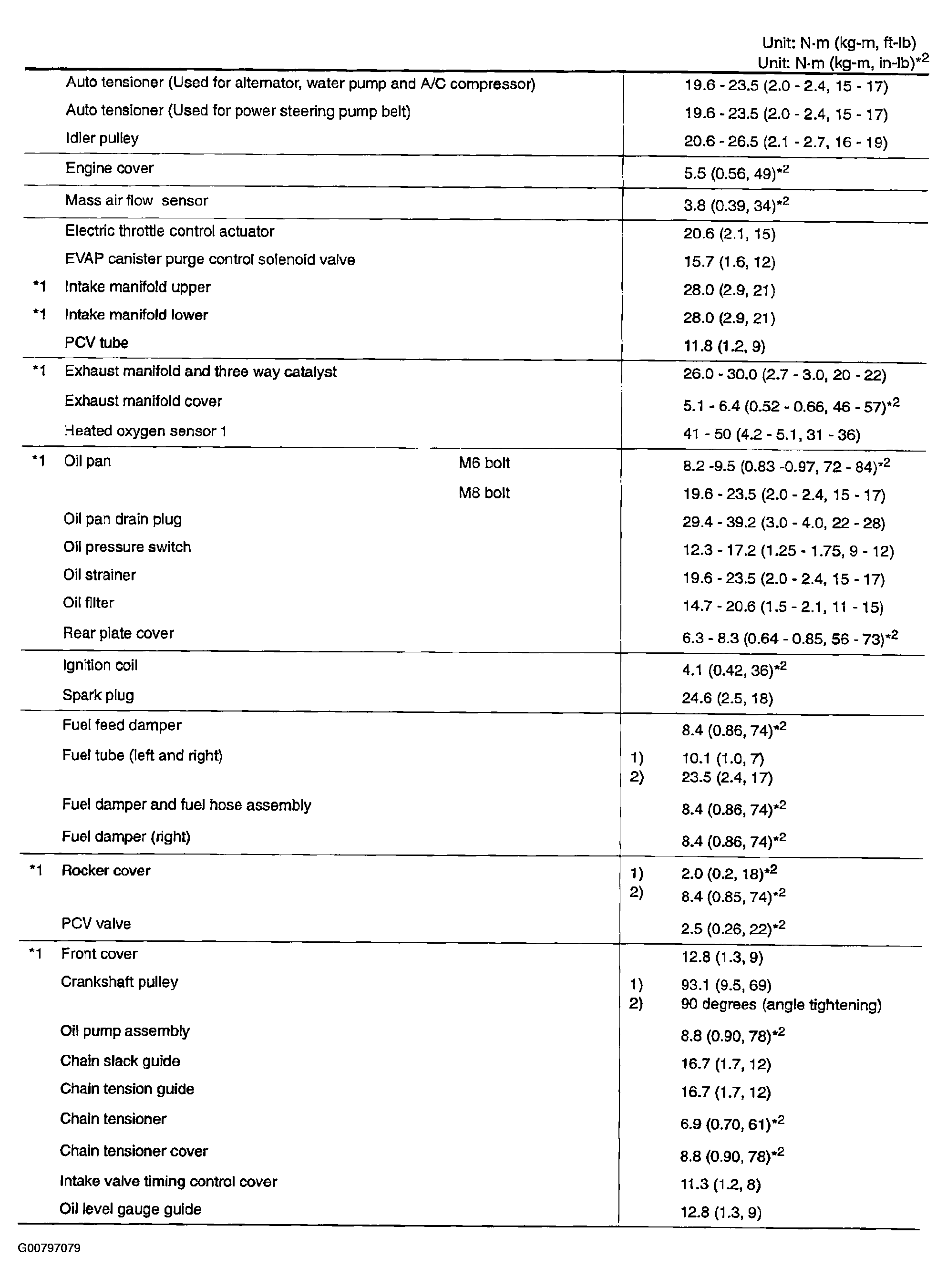

Fig 1: Tightening Torque (SDS) Information (1 of 2)
G00797079Courtesy of NISSAN MOTOR CO., U.S.A.

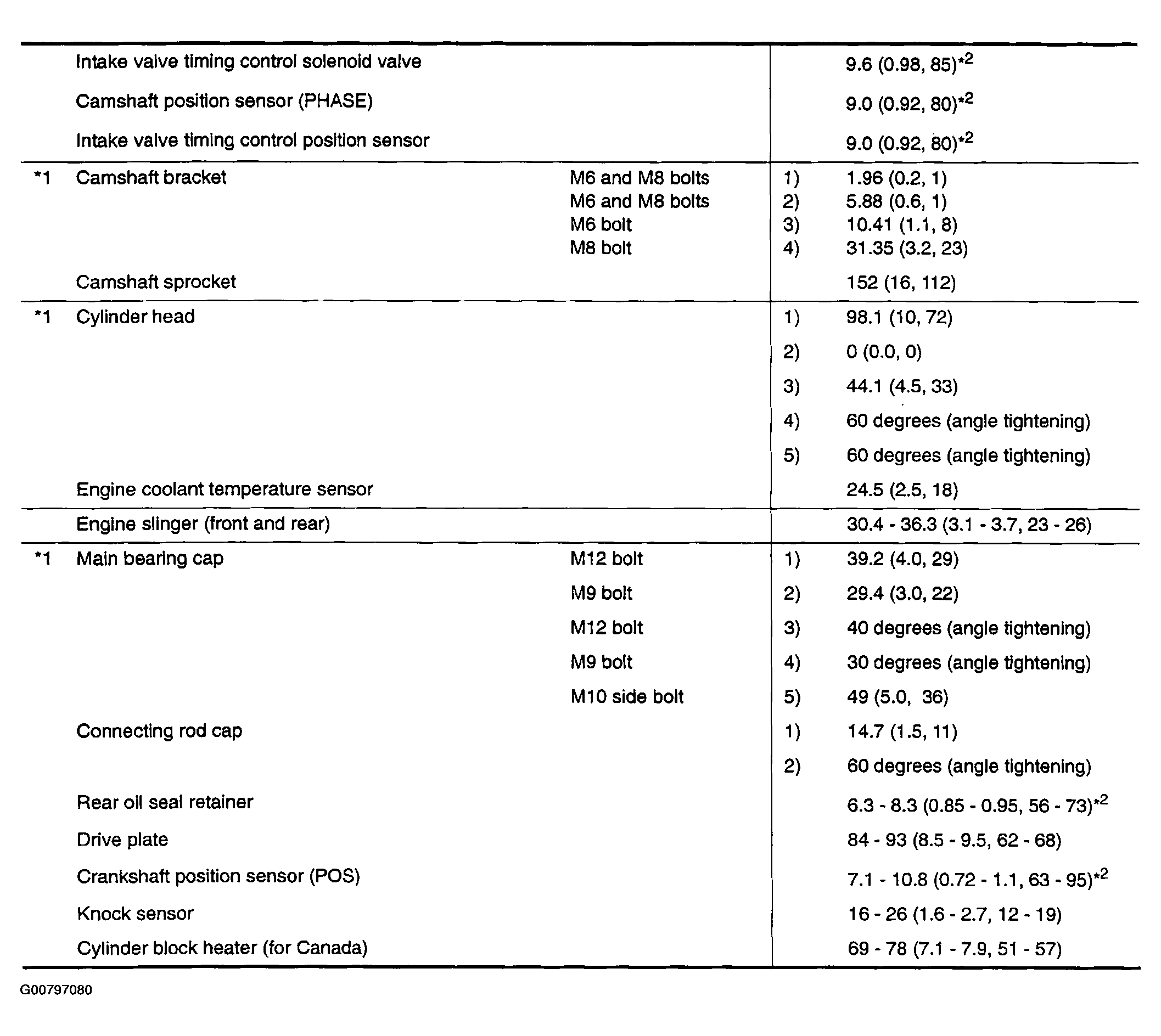

Fig 2: Tightening Torque (SDS) Information (2 of 2)
G00797080Courtesy of NISSAN MOTOR CO., U.S.A.
