Cross-Sectional View
WARNING:
This page is about a different car, the 2007 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

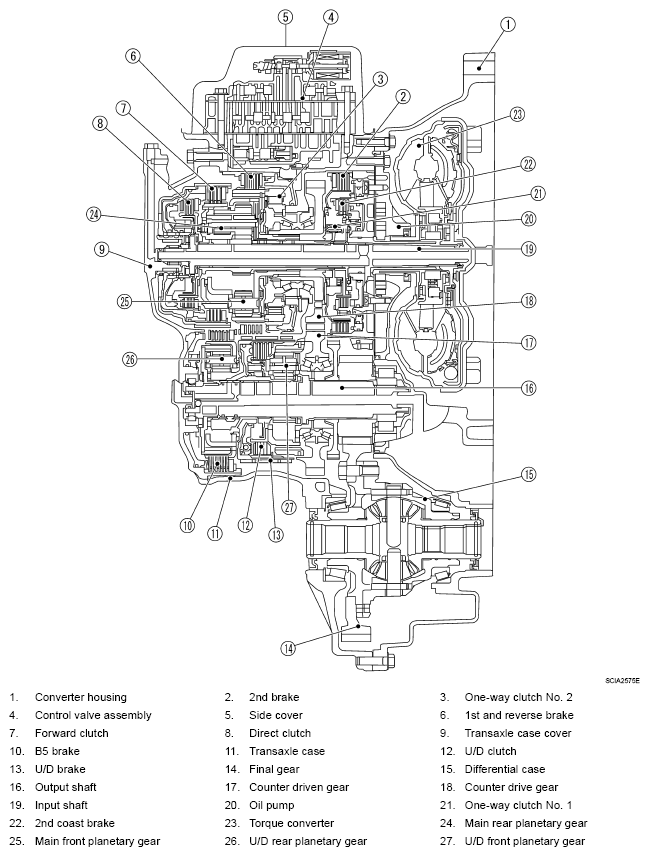

Fig 1: Cross-Sectional View - A/T Control System
Courtesy of NISSAN MOTOR CO., U.S.A.
