WARNING: This page is about a different car, the 2007 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

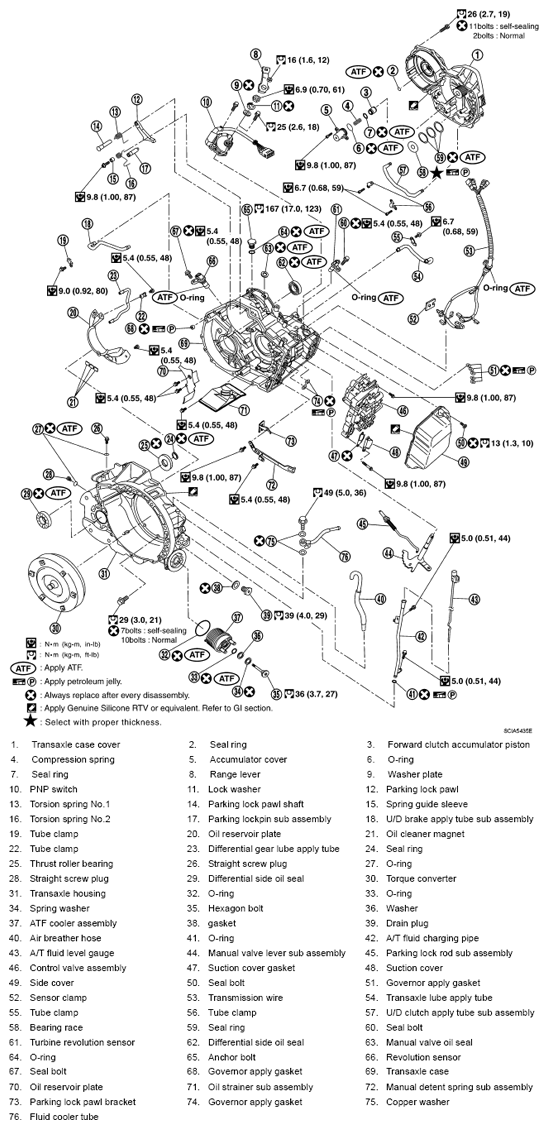

Fig 1: Exploded View Of Transaxle Components (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

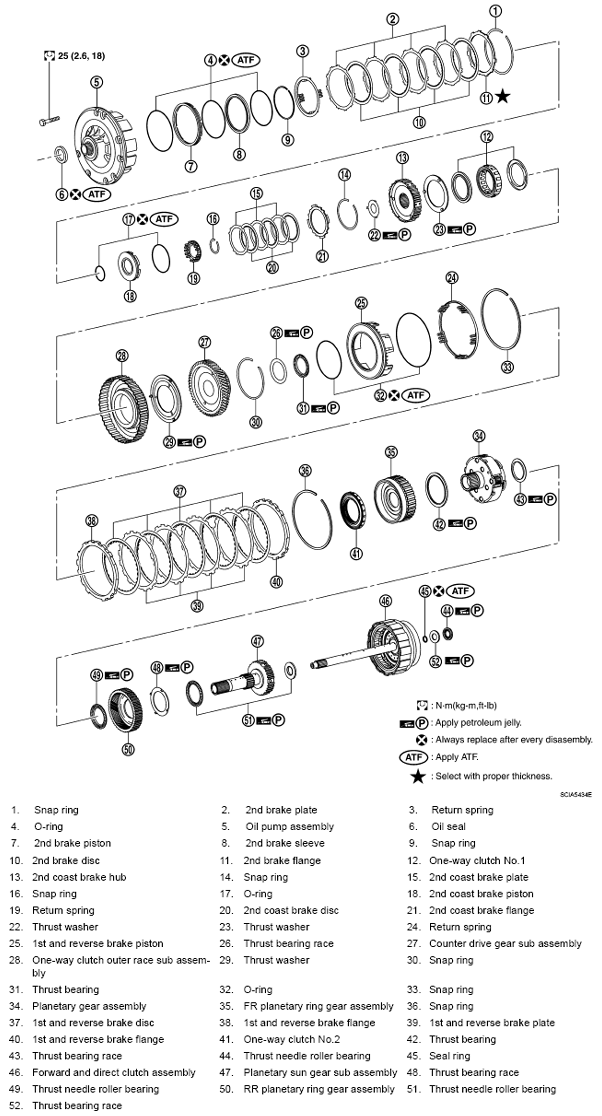

Fig 2: Exploded View Of Transaxle Components With Torque Specification (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

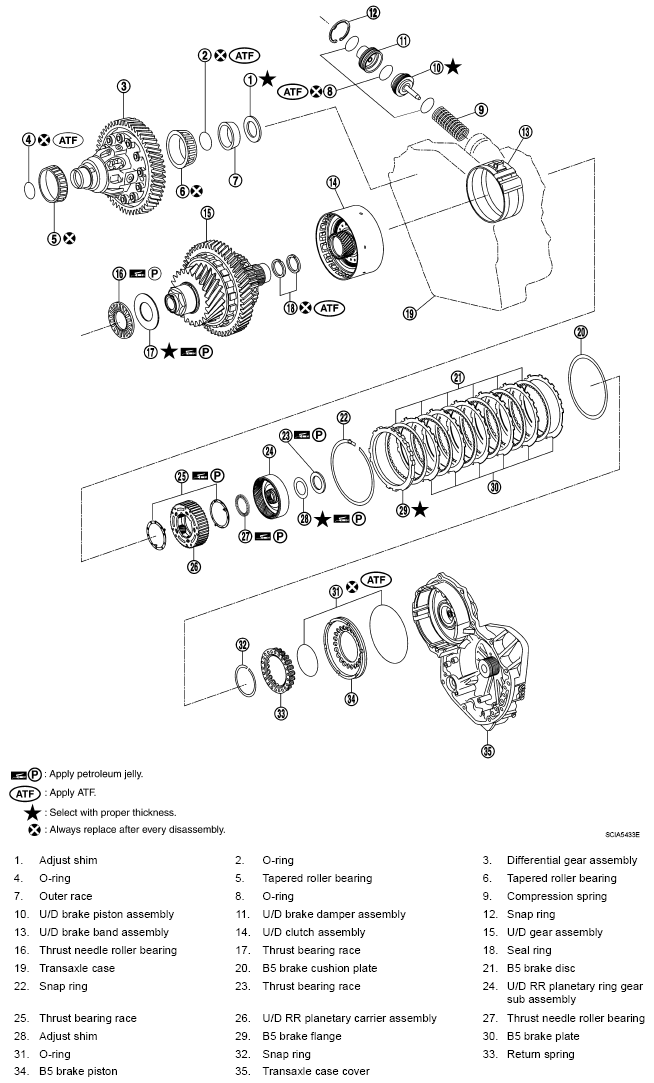

Fig 3: Exploded View Of Transaxle Components With Torque Specifications (3 Of 3)
