Control Cable

WARNING: This page is about a different car, the 2007 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

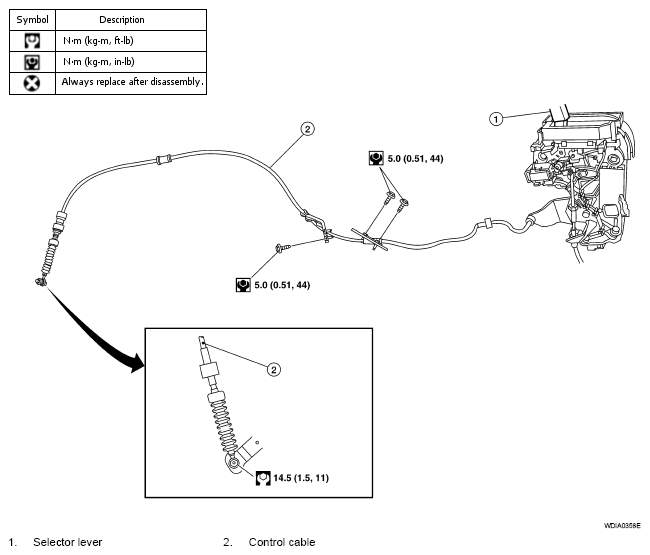

Fig 1: Selector Lever And Control Cable With Torque Specifications
G04906214Courtesy of NISSAN MOTOR CO., U.S.A.
