Center Console Assembly: Removal

WARNING: This page is about a different car, the 2007 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

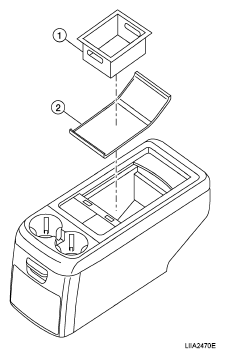

Remove storage bin insert (1) and console mat (2).

Fig 1: Identifying Storage Bin Insert And Console Mat
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove top cover assembly.

Fig 2: Identifying Cover Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Open the front bin (1), remove the bolts (A), and center console (2).

Fig 3: Identifying Center Console Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
