Center Stack Trim Panel: Removal

WARNING: This page is about a different car, the 2007 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Remove instrument lower panel LH. Refer to "INSTRUMENT LOWER PANEL LH ".
Remove glove box. Refer to "GLOVE BOX ".
Remove the screws (A) and center lower trim (1).

Fig 1: Identifying Screws And Center Lower Trim
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove center stack lower trim RH and LH.

Fig 2: Identifying Center Stack Lower Trim RH And LH
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove lower screws using power tool.

Fig 3: Locating Lower Screws
Courtesy of NISSAN MOTOR CO., U.S.A.
Pull to release clips and remove center stack trim panel.
Disconnect both power point electrical connectors.

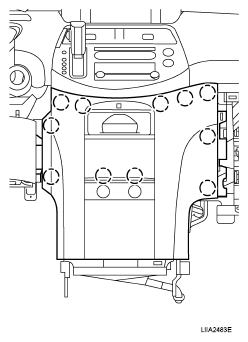

Fig 4: Identifying Center Stack Trim Panel Clips
Courtesy of NISSAN MOTOR CO., U.S.A.
