WARNING: This page is about a different car, the 2007 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Switches And Control Function Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

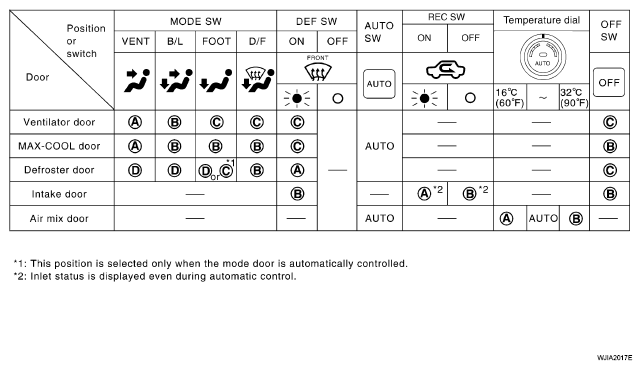

Fig 2: Air Conditioner Control Switches And Control Function Chart
