Control Valve: Installation

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lip seal (1) to the transaxle case.

    ← Front of vehicle

    G00597792Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install the CVT unit connector (A) to the transaxle case.
    CAUTION: Connect the CVT unit connector with the stopper facing up, and then press in until it clicks.
    G00597791Courtesy of NISSAN MOTOR CO., U.S.A.

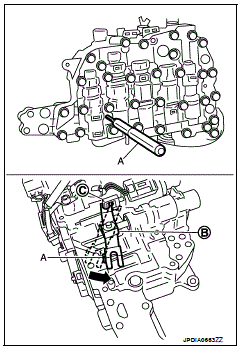

  3. Press in the ratio control valve (B) in the (←) direction, and then fix the linkage in the position shown with the linkage fixing pin (A) from the back of control valve through the hole for fixing.
    G00597793Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Check that one end of linkage engages with the step motor end (C) and that the linkage is in the direction shown.
  5. Install the control valve to the transaxle case.
    CAUTION:
    • Never drop the linkage fixing pin. If it is dropped, repeat the installation procedure from step 3.
    • Never pinch the harness into between the control valve and the transaxle case.
  6. Fix the control valve using the control valve bolts (A) and (B).

    ← Front of vehicle

    Bolt length

    Bolt Nominal length (mm) Quantity
    A 54 10
    B 44 1
    G00597790Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Pull the linkage fixing pin out.
  8. Connect the connectors (A) and (B).

    ← Clips

    ← Front of vehicle

    CAUTION:
    • Never pinch the harness into between the control valve and the transaxle case.
    • Securely insert the connector until it clicks and locks.
    G00597787Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install the bracket (1).

    ← Bolt

    ← Front of vehicle

    G00597789Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Install the oil strainer assembly (1) using the oil strainer assembly bolts (A) and (B).

    ← Front of vehicle

    Bolt length

    Bolt Nominal length (mm) Quantity
    A 12 2
    B 44 1
    CAUTION:
    • Never reuse O-ring.
    • Apply NISSAN CVT fluid NS-2 when installing the O-ring.
    NOTE: Remove the bracket and adjust the position again if the bolt hole positions are not aligned.
    G00597788Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Install the collar to the manual shaft.
    CAUTION: Never drop the collar.
  12. Assemble the manual plate (1) while aligning with the groove (A) of the manual valve, and then tighten washer (2) the lock nut (3) to the specified torque.
    CAUTION: Assemble the manual plate while aligning its end with the cutout (←) of the manual valve.

    ← Front of vehicle

    G00597794Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Install the snap ring of CVT unit connector, and then connect the CVT unit harness connector.
  14. Install the magnet while aligning it with the convex side of oil pan.
    CAUTION: Completely eliminate the iron powder from the magnet area of oil pan and the magnet.
  15. Install the oil pan gasket to the oil pan.
    CAUTION:
    • Completely wipe out any moisture, oil, and old gasket from the oil pan gasket surface and bolt hole of oil pan and transaxle case.
    • Never reuse oil pan gaskets.
  16. Install the oil pan assembly to the transaxle case with the following procedure.
    1. Install the oil pan assembly to the transaxle case, and then temporarily tighten the oil pan bolt.
      CAUTION: Never reuse oil pan bolts.
    2. Tighten the oil pan bolts in the order shown to the specified torque.
      Fig 1: Oil Pan Bolts With Torque Specifications and Tightening Sequence
      G00597795Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Tighten the oil pan bolts again clockwise in the order shown to the specified torque.
  17. Fill CVT fluid from CVT fluid charging pipe to the specified level.

    CVT fluid : Refer to Changing CVT Fluid

    Fluid capacity : Refer to CHECKING CVT FLUID

    CAUTION:
    • Use only Genuine NISSAN CVT Fluid NS-2. Never mix with other fluid.
    • Using CVT fluid other than Genuine NISSAN CVT Fluid NS-2 will deteriorate in driveability and CVT durability, and may damage the CVT, which is not covered by the warranty.
    • When filling CVT fluid, take care not to scatter heat generating parts such as exhaust.
    • Sufficiently shake the container of CVT fluid before using.
    • Delete CVT fluid deterioration date with CONSULT-III after changing CVT fluid. Refer to PRECAUTIONS FOR TCM AND CVT ASSEMBLY REPLACEMENT .
  18. With the engine warmed up, drive the vehicle in an urban area.
    NOTE: When ambient temperature is 20°C (68°F), it takes about 10 minutes for the CVT fluid to warm up to 50° to 80°C (122° to 176°F).
  19. Check CVT fluid level and condition. Refer to CHECKING CVT FLUID .
  20. Connect negative battery terminal. Refer to BATTERY .
