Wiring Diagram - CVT - PRSCVT

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

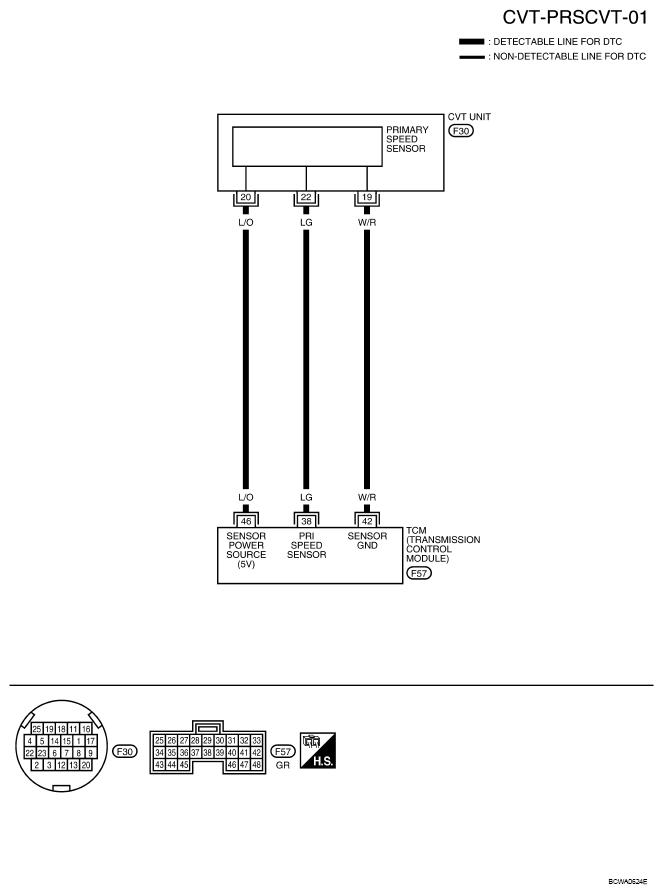

Fig 1: Wiring Diagram - CVT-PRSCVT-01

Courtesy of NISSAN MOTOR CO., U.S.A.

TCM terminal data are reference values, measured between each terminal and ground.

TCM TERMINAL DATA REFERENCE VALUES

Terminal	Wire color	Item	Condition		Data (Approx.)
38	LG	Input speed sensor (Primary speed sensor)	Courtesy of NISSAN MOTOR CO., U.S.A.	When driving [M1 position, 20 km/h (12 MPH)].	660 Hz
42	W/R	Sensor ground	Always		0 V
46	L/O	Sensor power	Courtesy of NISSAN MOTOR CO., U.S.A.	-	5.0 V
46	L/O	Sensor power	Courtesy of NISSAN MOTOR CO., U.S.A.	-	0 V
