Intake Sensor
WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

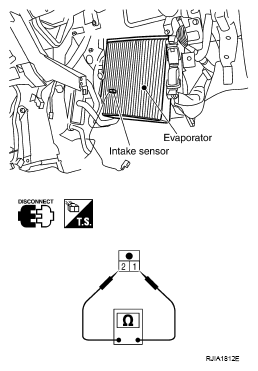

After disconnecting intake sensor connector, measure resistance between terminals 1 and 2 at sensor harness side, using INTAKE SENSOR TEMPERATURE/SENSOR CHART .
INTAKE SENSOR TEMPERATURE/SENSOR CHART
| Temperature °C (°F) | Resistance kΩ |
|---|---|
| -15 (5) | 18.63 |
| -10 (14) | 14.14 |
| -5 (23) | 10.85 |
| 0 (32) | 8.40 |
| 5 (41) | 6.57 |
| 10 (50) | 5.18 |
| 15 (59) | 4.12 |
| 20 (68) | 3.30 |
| 25 (77) | 2.66 |
| 30 (86) | 2.16 |
| 35 (95) | 1.77 |
| 40 (104) | 1.46 |
| 45 (113) | 1.21 |
If NG, replace intake sensor. Refer to "INTAKE SENSOR ".
