Navigation System: Schematic

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

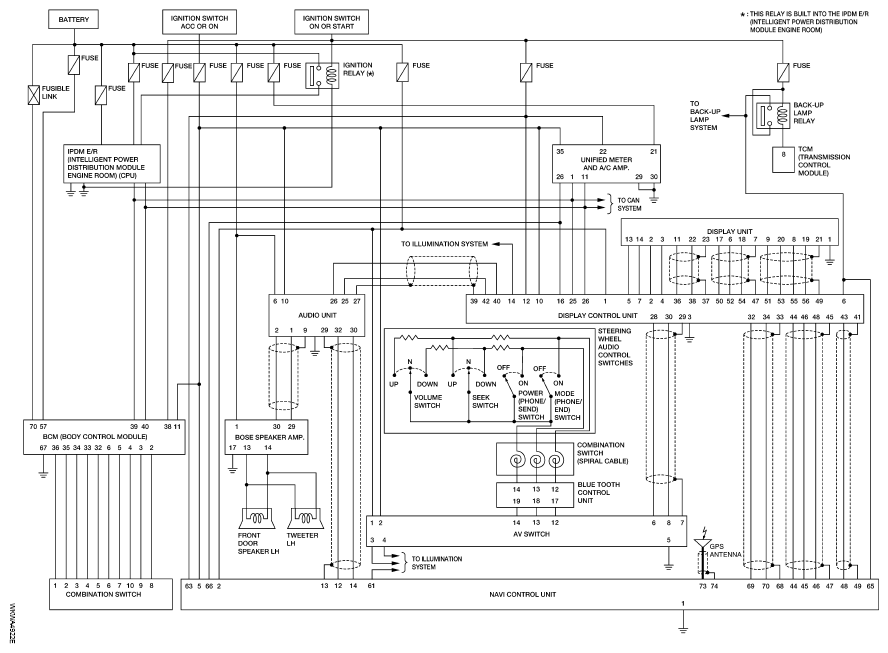

Fig 1: Schematic - Navigation System
G04918434Courtesy of NISSAN MOTOR CO., U.S.A.

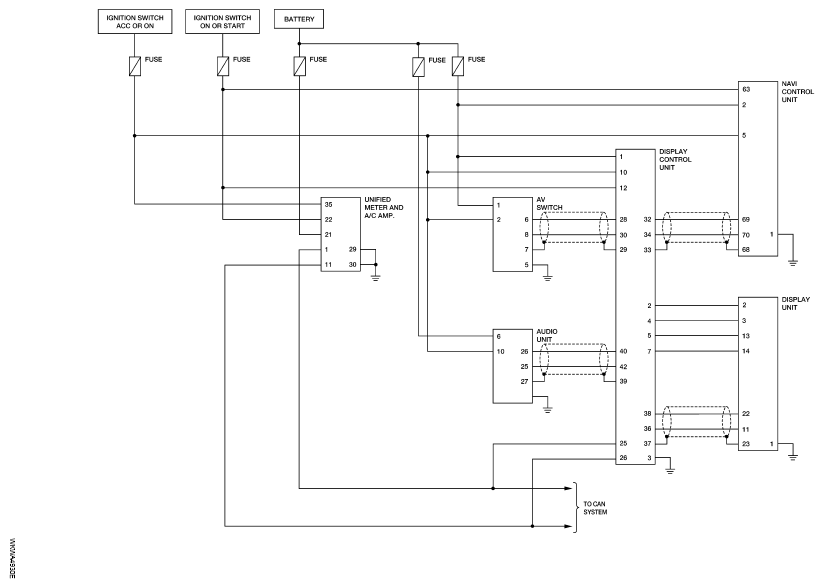

Fig 1: Schematic - Navigation System
G04918442Courtesy of NISSAN MOTOR CO., U.S.A.
