Removal and Installation: Notes

WARNING: This page is about a different car, the 2004 Nissan Murano and 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

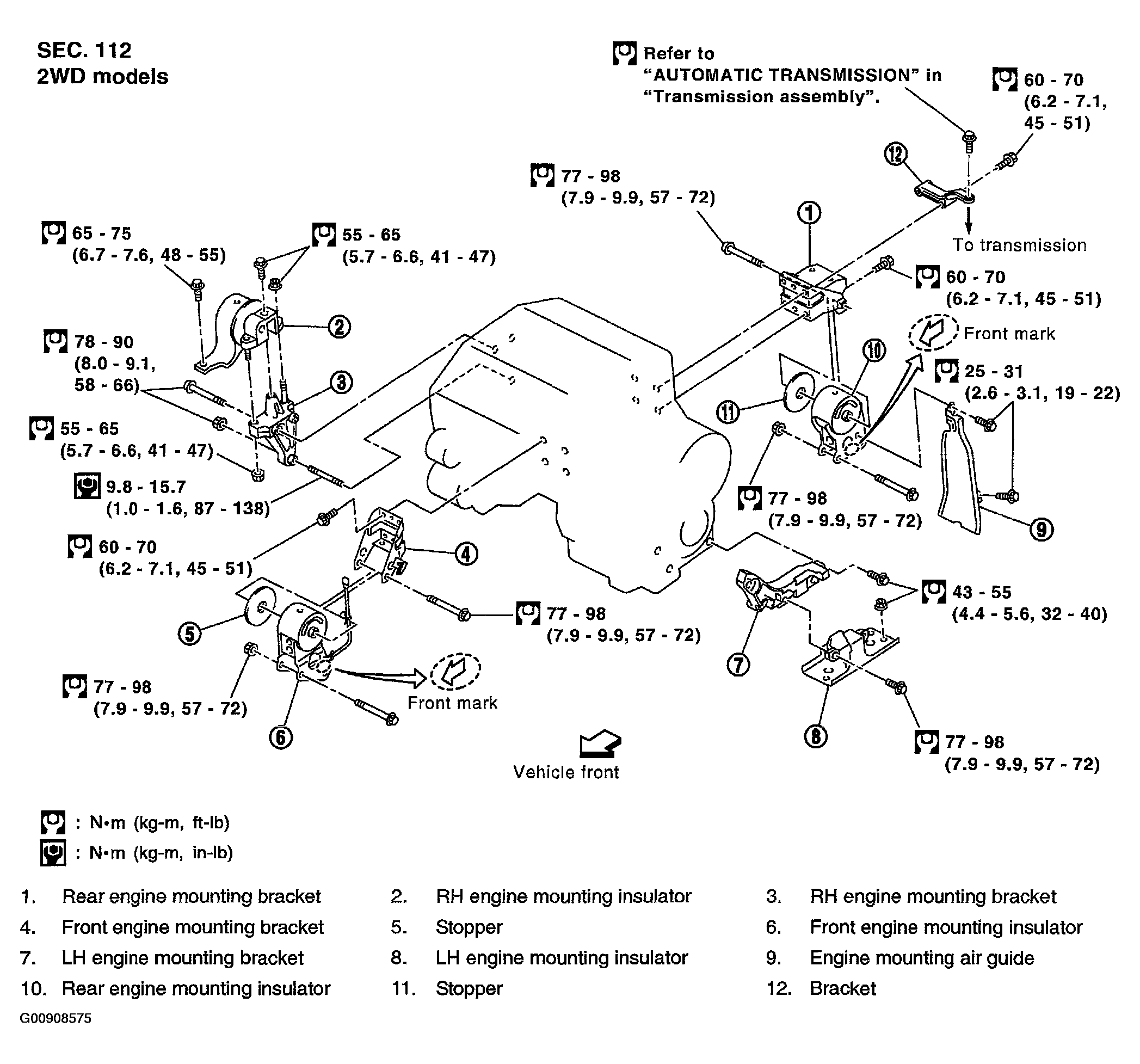

Fig 1: Exploded View Of Engine Mounts & Transmission Mounts With Torque Specifications (2WD)

Courtesy of NISSAN MOTOR CO., U.S.A.

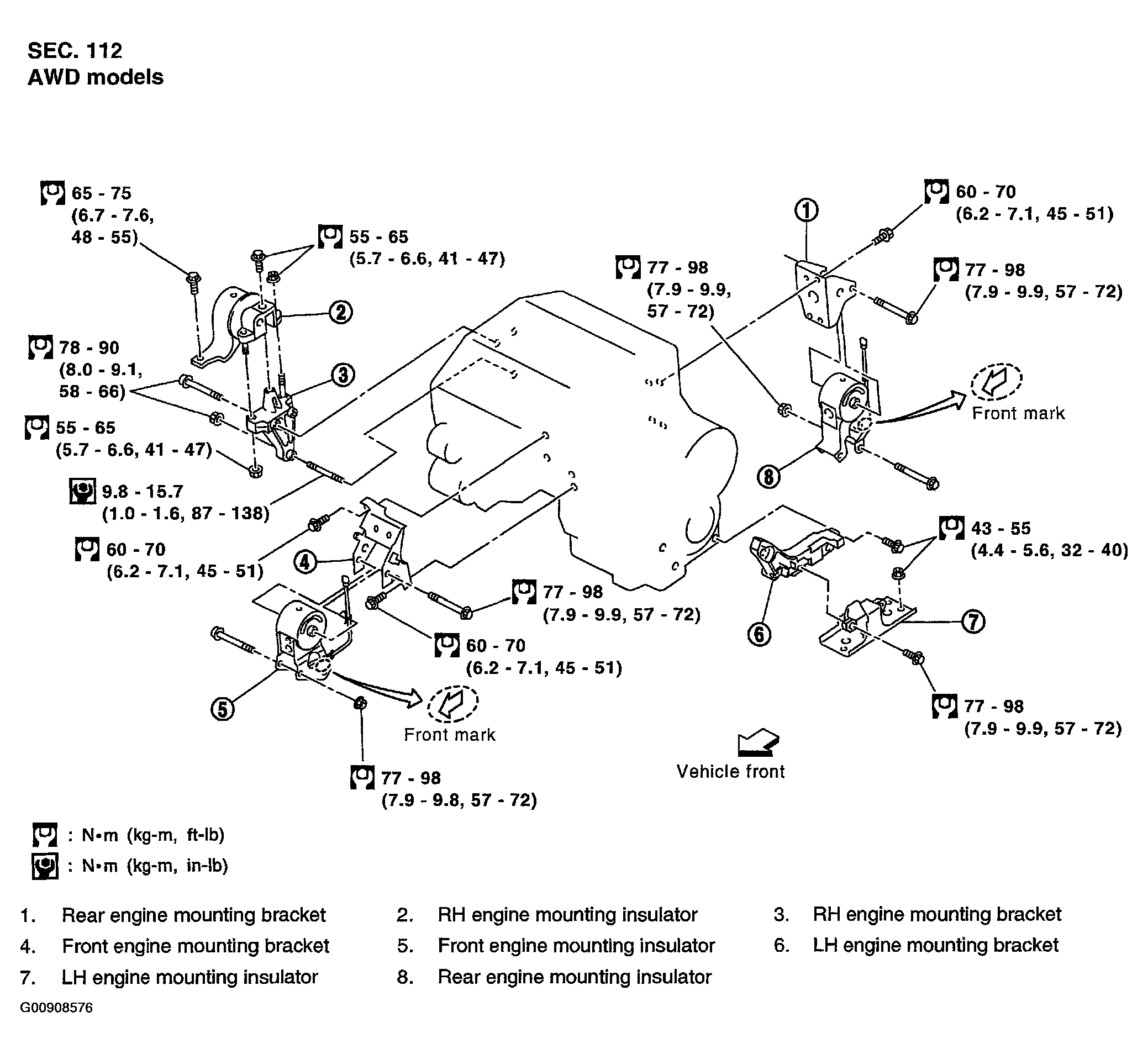

Fig 2: View Of Engine Mounts (AWD)

Courtesy of NISSAN MOTOR CO., U.S.A.

WARNING:

Situate vehicle on a flat and solid surface.
Place chocks at front and back of rear wheels.
For engines not equipped with engine slingers, attach proper slingers and bolts described in PARTS CATALOG.

CAUTION:

Always be careful to work safely, avoid forceful or uninstructed operations.
Do not start working until exhaust system and engine coolant are cool enough.
If items or work required are not covered by the engine section, refer to the applicable sections.
Always use the support point specified for lifting.
Use either 2-point lift type or separate type lift as best you can. If board-on type is used for unavoidable reasons, support at the rear axle jacking point with transmission jack or similar tool before starting work, in preparation for the backward shift of center of gravity.
For supporting points for lifting and jacking point at rear axle, refer to GARAGE JACK AND SAFETY STAND .
