Component Locations

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

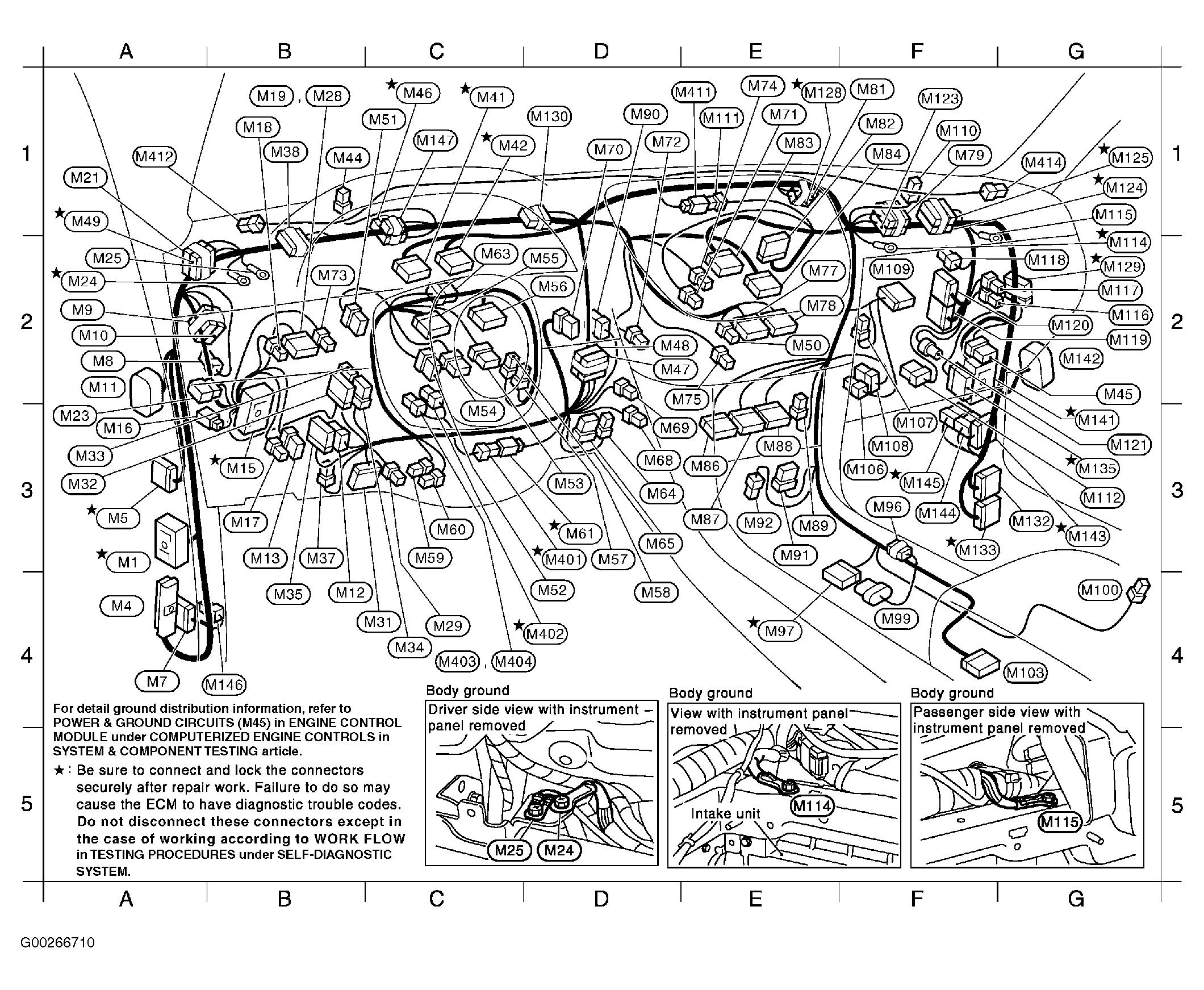

Fig 1: Locating Main Harness Connectors (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

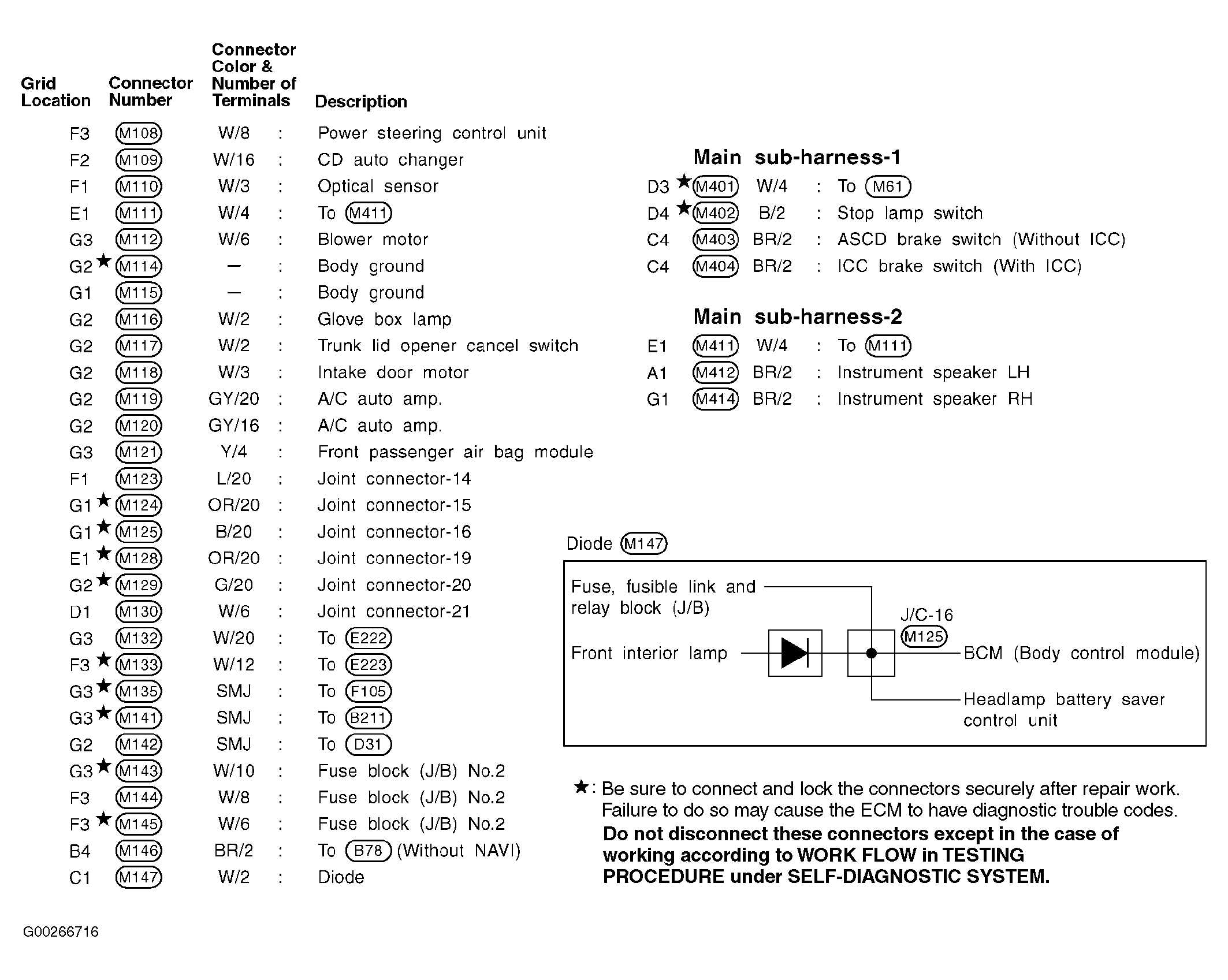

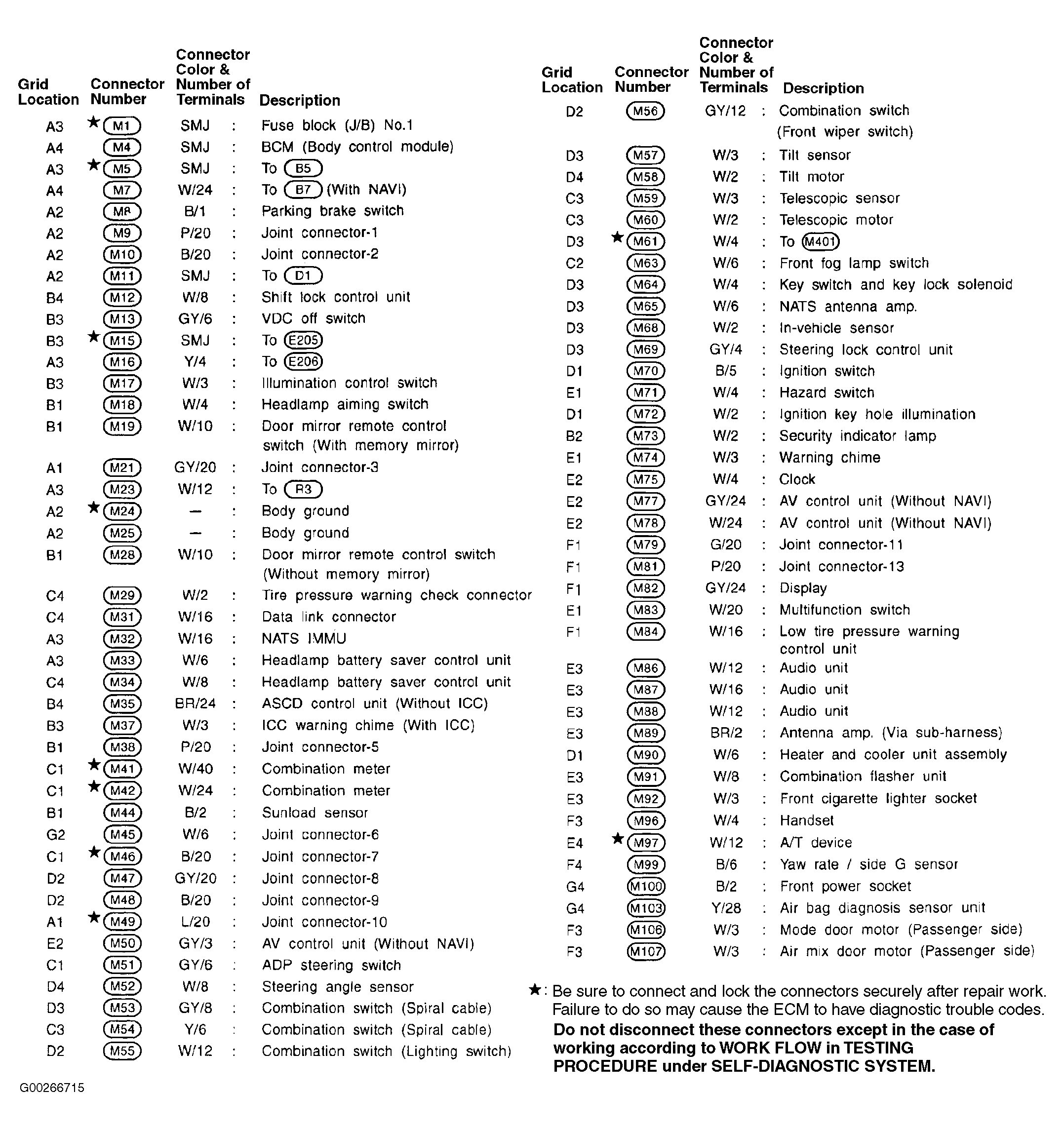

Fig 2: Locating Main Harness Connectors (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Locating Main Harness Connectors (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

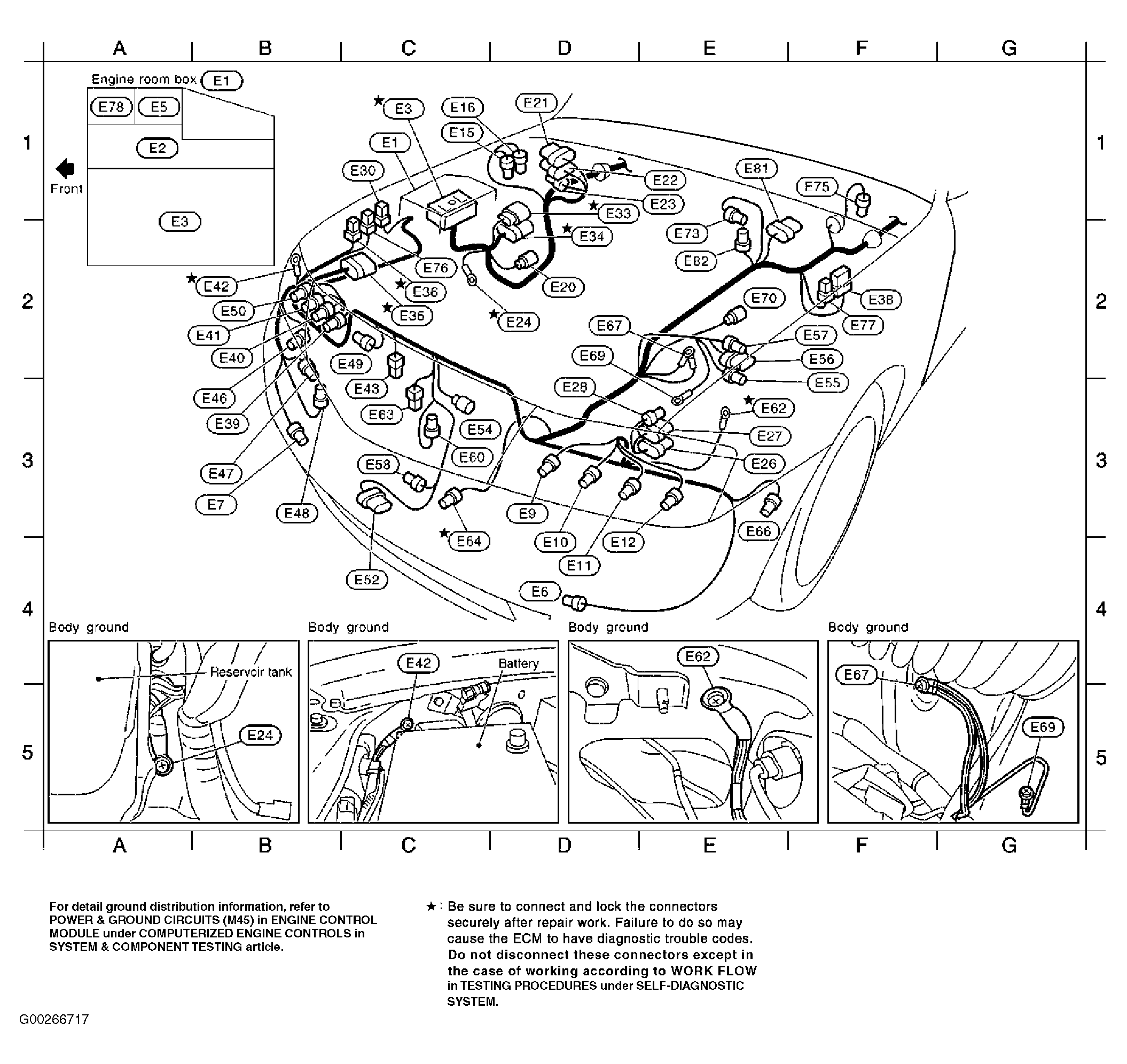

Fig 4: Locating Engine Compartment Harness Connectors (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

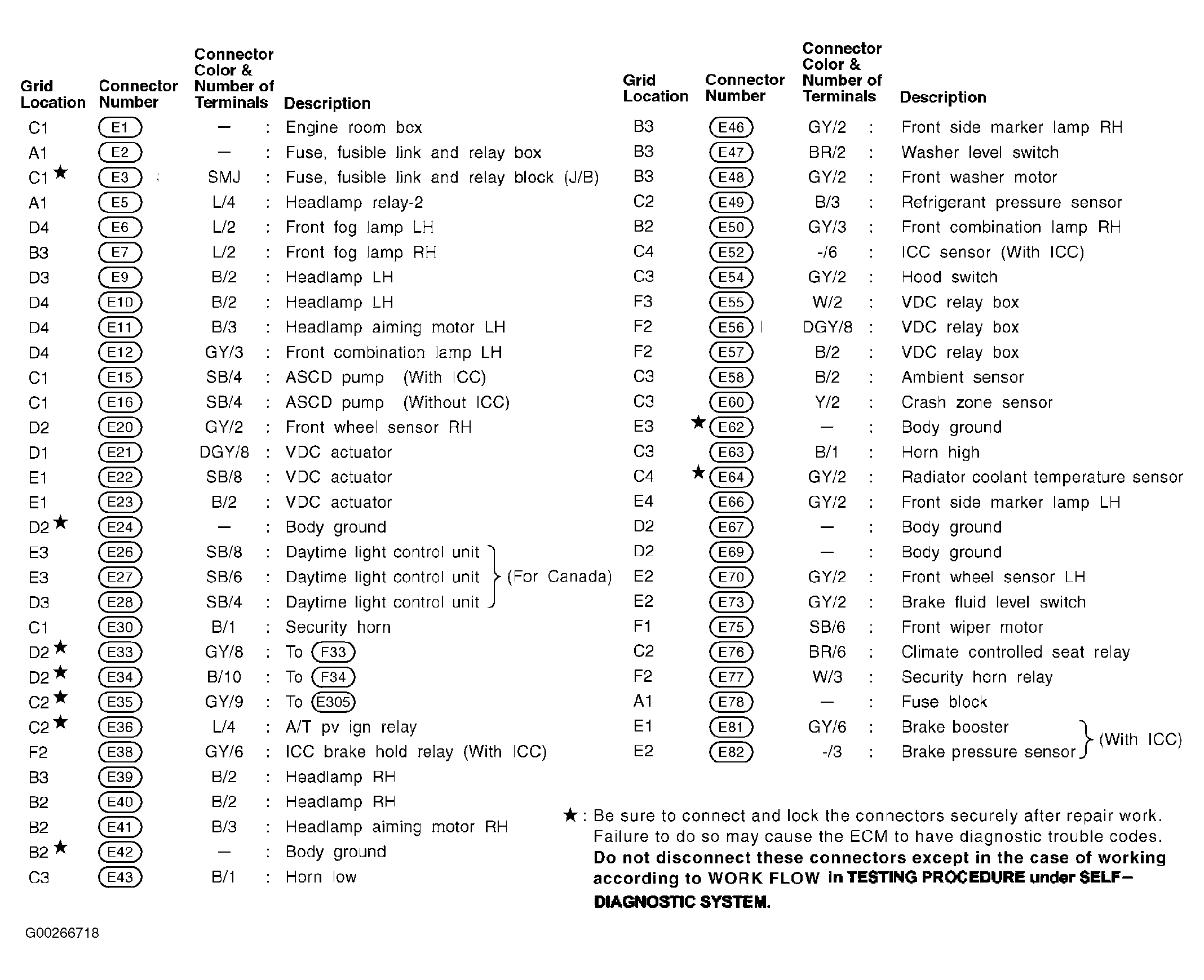

Fig 5: Locating Engine Compartment Harness Connectors (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

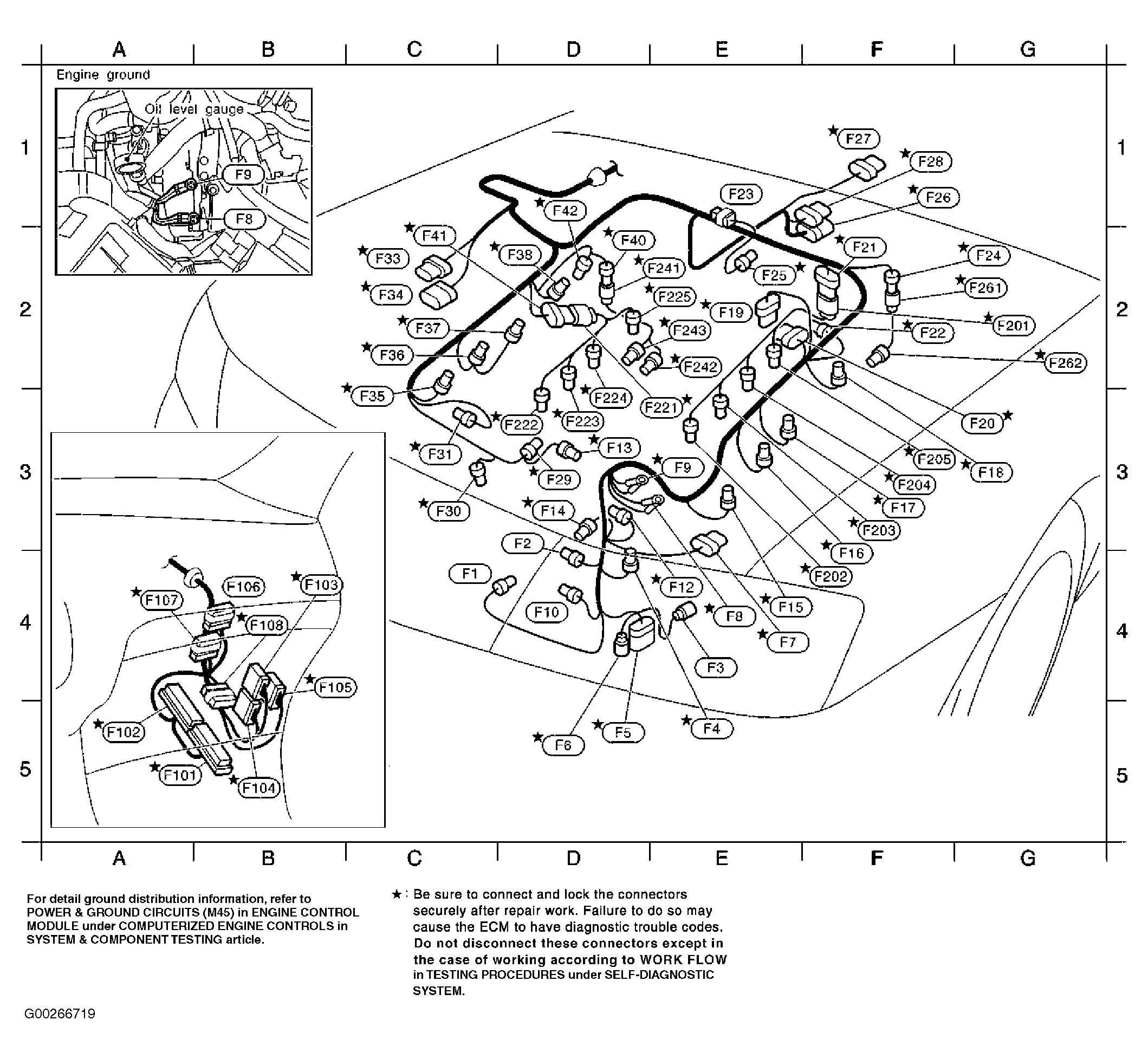

Fig 6: Locating Engine Control Harness Connectors (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

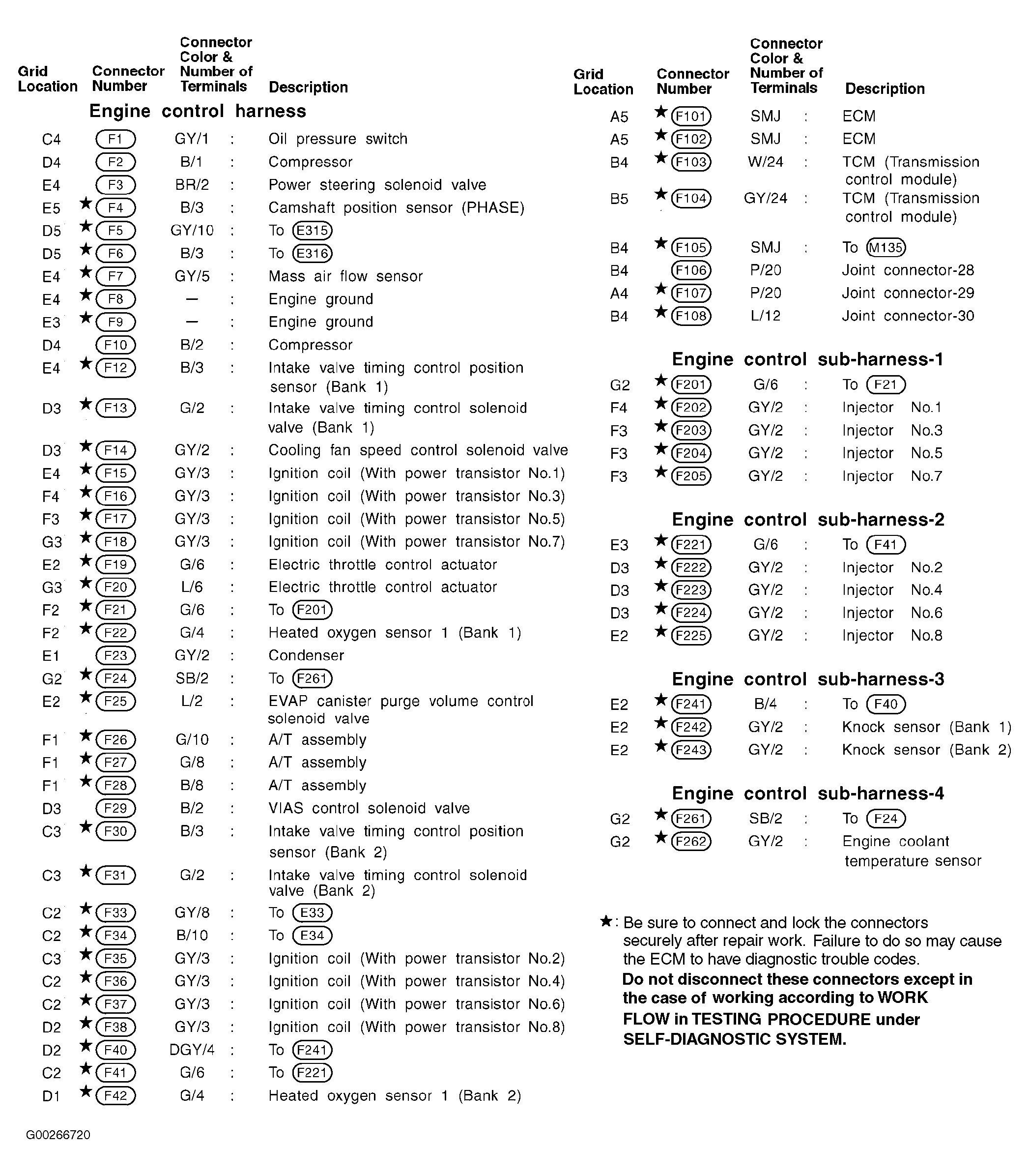

Fig 7: Locating Engine Control Harness Connectors (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

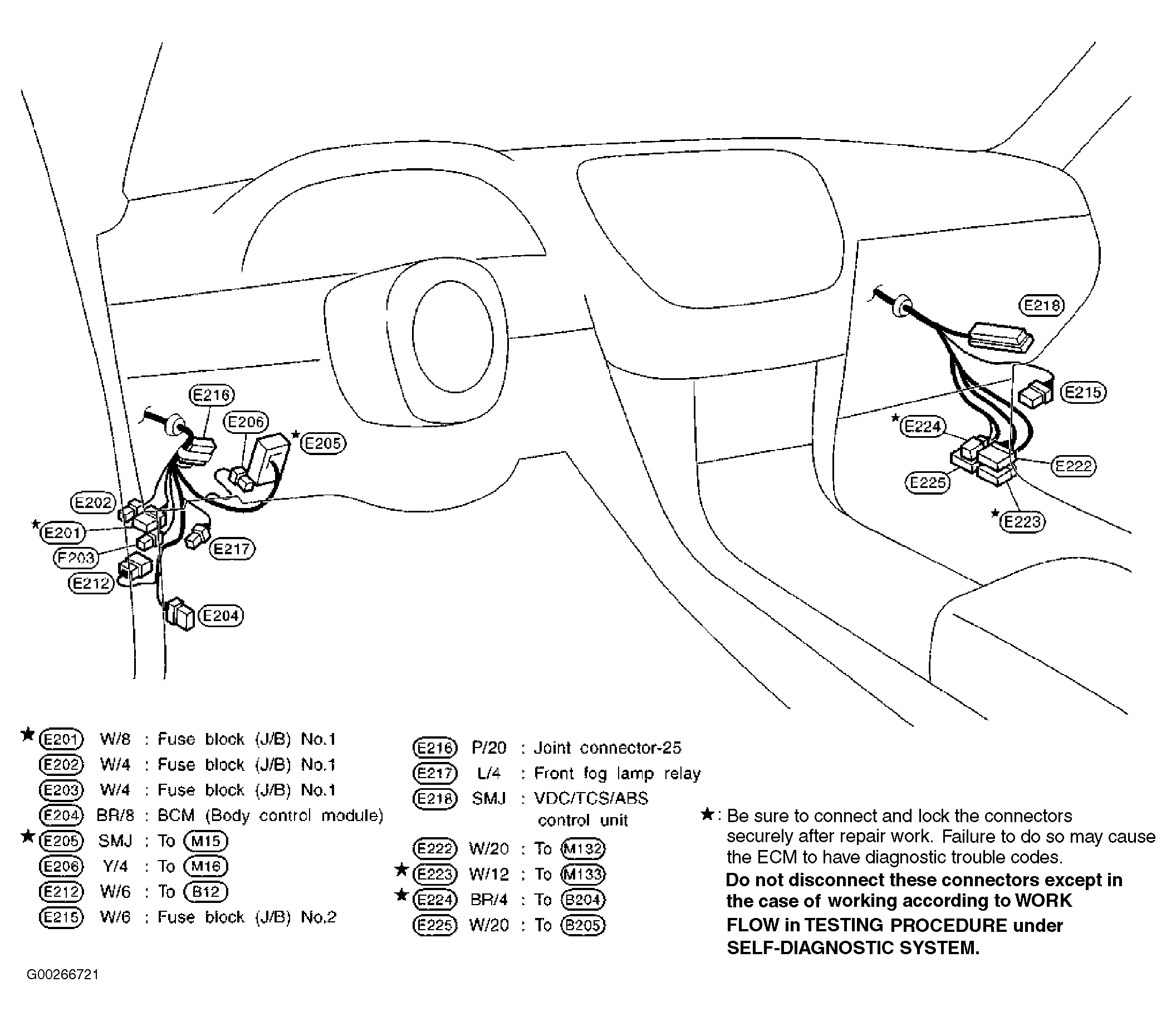

Fig 8: Locating Passenger Compartment Engine Control Related Component Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.

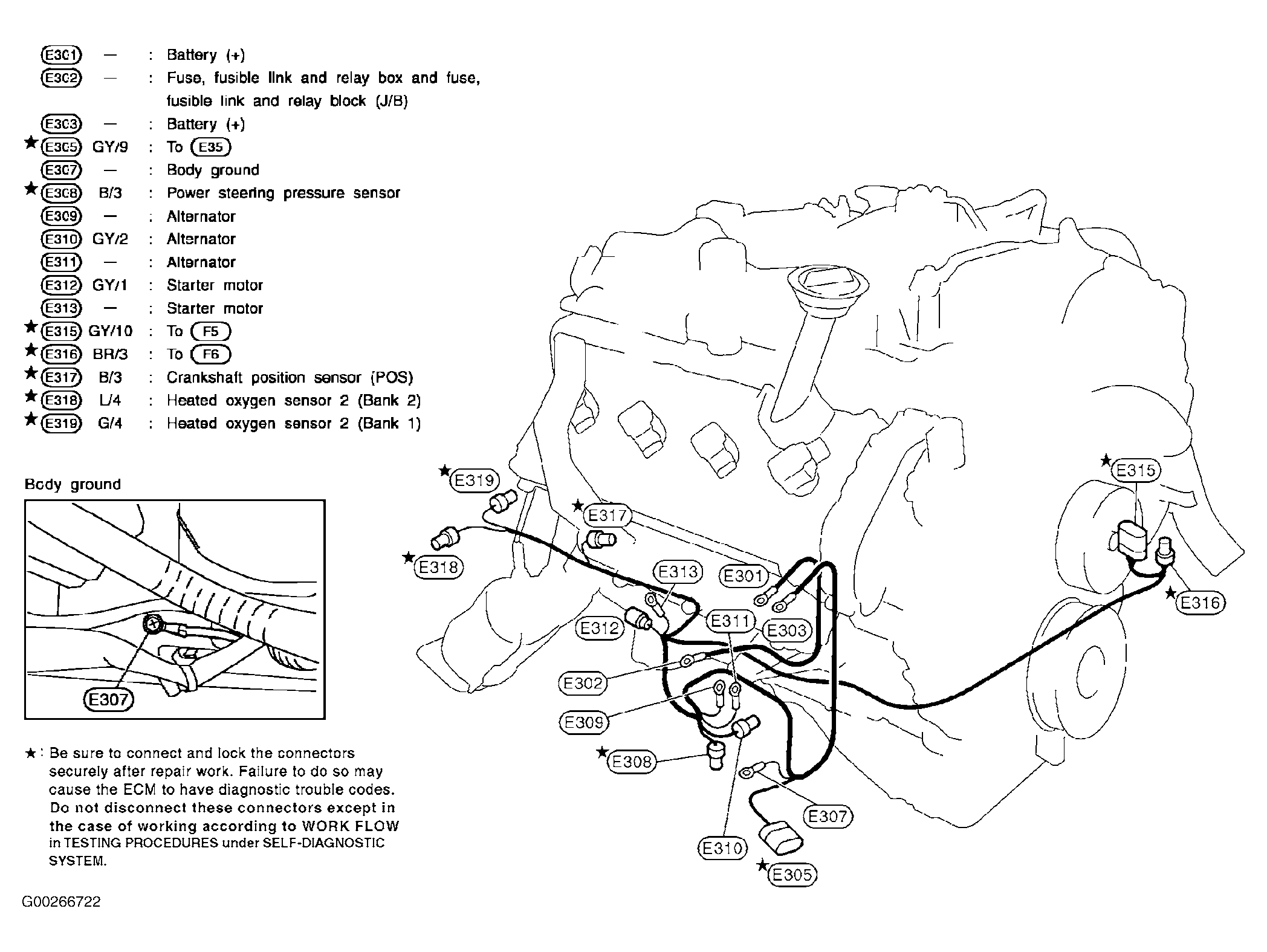

Fig 9: Locating Engine Harness Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.
