Front Air Control

WARNING: This page is about a different car, the 2011 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Removal

Remove cluster lid C. Refer to "EXPLODED VIEW ".
Remove the front air control from cluster lid C.

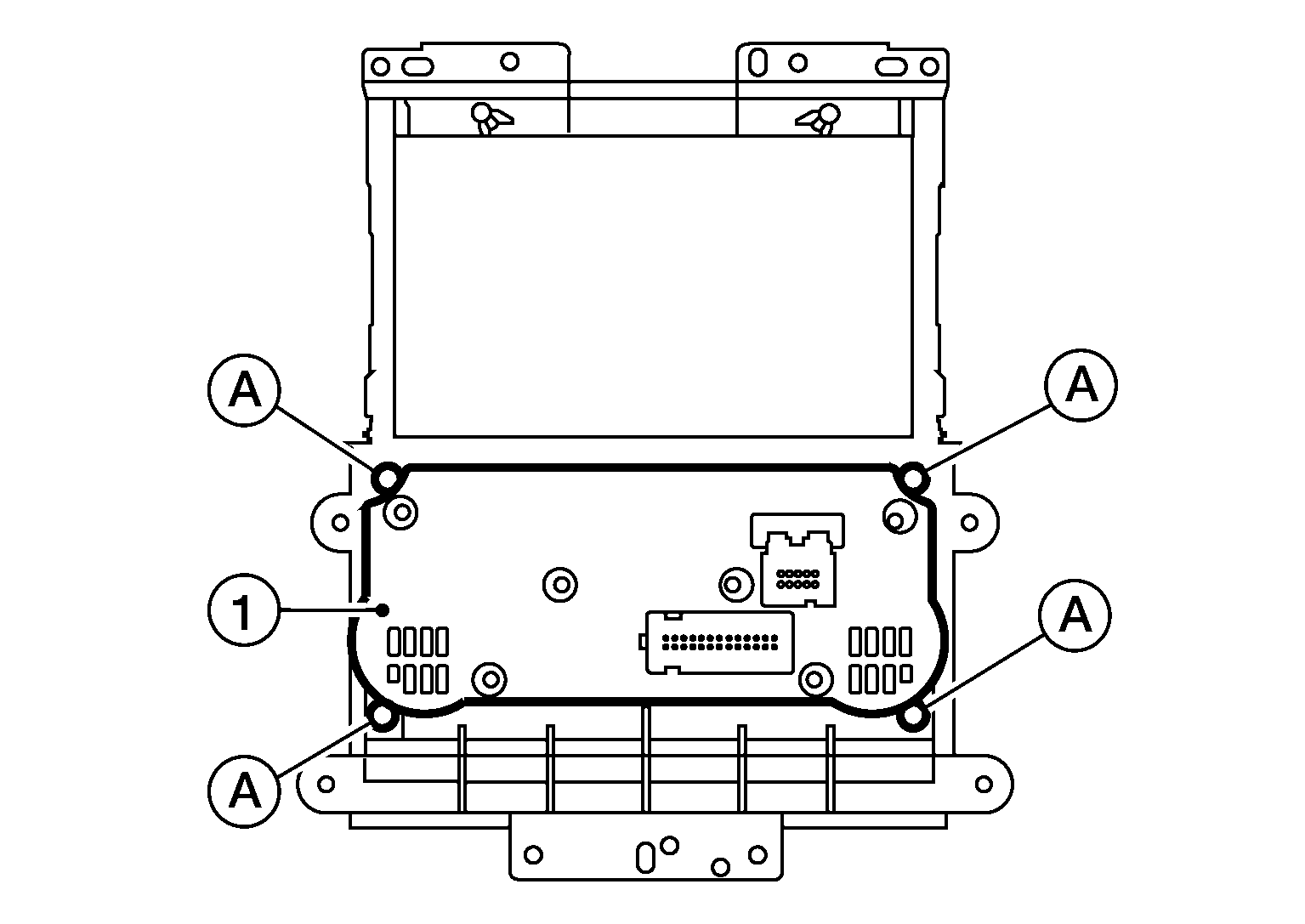

- For type 1, remove the four screws (A) securing the front air control (1) to cluster lid C.

  Fig 1: Identifying Front Air Control And Screws
- For type 2, remove the four screws securing the front air control to cluster lid C.

  Fig 2: Identifying Front Air Control And Cluster Lid C

Installation

Installation is in the reverse order of removal.
