Pantograph Jack

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Never get under the vehicle while it is supported only by the jack. Always use safety stands to support the frame when you have to get under the vehicle.
  • Place wheel chocks at both front and back of the wheels on the ground.

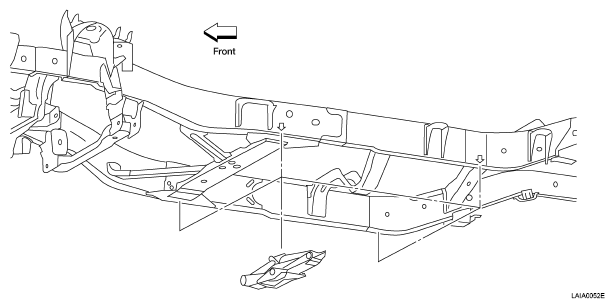

Fig 1: Identifying Pantograph Jack
G04893672Courtesy of NISSAN NORTH AMERICA, INC.
