Removal and Installation: Notes

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

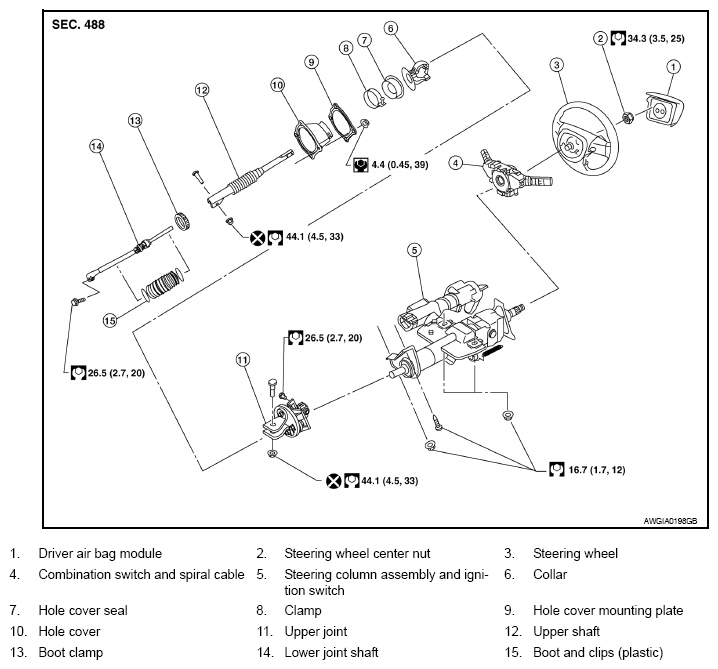

Fig 1: Exploded View Of Steering Column With Torque Specifications
G08167262Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
  • Do not exert any axial load or impact to the steering column.
  • Do not move the steering gear while the steering column assembly is removed.
  • Any time the ignition switch has been removed and installed, the keys must be re-registered in the BCM. Refer to CONSULT Operation Manual IVIS/NVIS.
