Removal and Installation: Removal

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the display unit screws (A).
  3. Pull out the display unit (1), then disconnect the display unit connectors and remove the display unit (1).

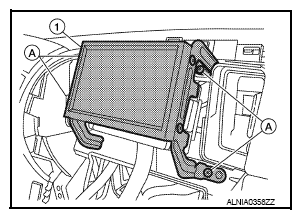

    Fig 1: Identifying Display Unit And Screws
    G08170004Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove the A/C auto amp.screws (A), remove the (C103) fasteners (B) from the display unit assembly brackets and remove the A/C auto amp. (1).
  5. Remove the display unit bracket unit screws (C) and remove the display unit brackets (2).

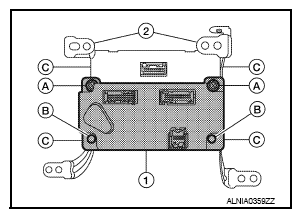

Fig 2: Identifying Fasteners, A/C Auto Amp., Display Unit Brackets And Screws
G08170005Courtesy of NISSAN NORTH AMERICA, INC.
