Diagnosis Procedure

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Regarding Wiring Diagram information, refer to "WIRING DIAGRAM - WITHOUT NAVIGATION SYSTEM ".

CHECK CONTINUITY HORIZONTAL SYNCHRONIZING (HP) SIGNAL CIRCUIT

Turn ignition switch OFF.
Disconnect display unit connector M93 and AV control unit connector M45.

Check continuity between display unit harness connector M93 (A) terminal 8 and AV control unit harness connector M45 (B) terminal 45.

A		B		Continuity
Connector	Terminal	Connector	Terminal	Continuity
M93	8	M45	45	Yes

Check continuity between display unit harness connector M93 (A) terminal 8 and ground.

A		-	Continuity
Connector	Terminal	-	Continuity
M93	8	Ground	No

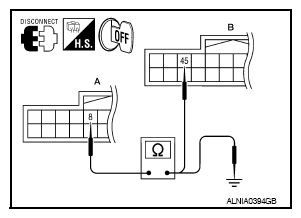

Fig 1: Checking Continuity Between Display Unit Connector M93 (A) Terminal 8 And AV Control Unit Connector M45 (B) Terminal 45

Courtesy of NISSAN NORTH AMERICA, INC.

Are continuity results as specified?

YES: GO TO 2

NO: Repair harness or connector.

CHECK HORIZONTAL SYNCHRONIZING (HP) SIGNAL

Connect display unit connector M93 and AV control unit connector M45.
Turn ignition switch ON.

Check signal between display unit harness connector M93 terminal 8 and ground.

(+)		(-)	Condition	Reference signal
Connector	Terminal	(-)	Condition	Reference signal
M93	8	Ground	Receive audio signal

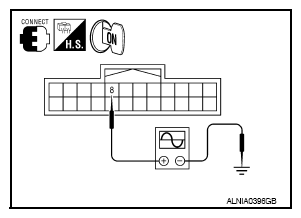

Fig 2: Checking Signal Between Display Unit Connector M93 Terminal 8 And Ground

Courtesy of NISSAN NORTH AMERICA, INC.

Are voltage readings as specified?

YES: Replace AV control unit. Refer to "REMOVAL AND INSTALLATION ".

NO: Replace display unit. Refer to "REMOVAL AND INSTALLATION ".
