BOSE System

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

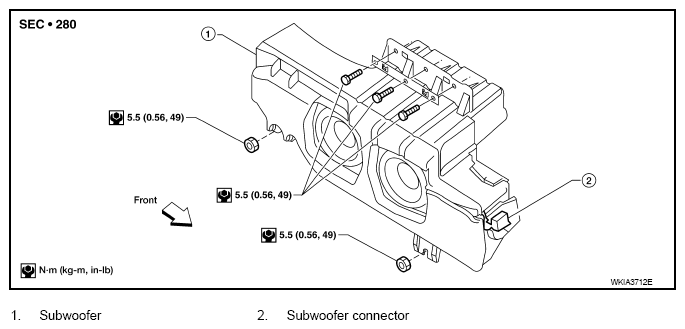

Fig 1: Subwoofer, Connector And Nut With Torque Specification
G08169775Courtesy of NISSAN NORTH AMERICA, INC.

Removal

  1. Remove the luggage side lower finisher LH. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove subwoofer bolts and nuts.
  3. Disconnect the subwoofer connector and remove the subwoofer.

Installation

Installation is in the reverse order of removal.
