Operation Procedure

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start the engine.
  2. Turn the audio system off.
  3. While pressing the "SETTING" button, turn the volume control dial counterclockwise 30 clicks or more. (When the self-diagnosis mode is started, a short beep will be heard.)
    Fig 1: Turning Volume Control Dial Counterclockwise
    G08169548Courtesy of NISSAN NORTH AMERICA, INC.
  4. The initial trouble diagnosis screen will be displayed, and items "Self-Diagnosis" and "Confirmation/Adjustment" can be selected.

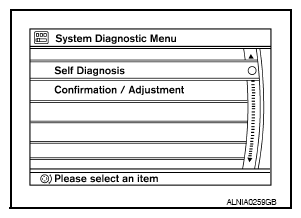

Fig 2: Display - System Diagnostic Menu Screen
G08169549Courtesy of NISSAN NORTH AMERICA, INC.
