AV CONTROL UNIT: Diagnosis Description: Self-Diagnosis
WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
- Perform self-diagnosis by selecting "Self-Diagnosis".

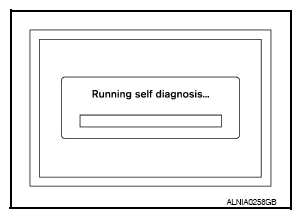

- Self-diagnosis subdivision screen is displayed, and the self-diagnosis mode starts.
- A bar graph visible on the center of the self-diagnosis subdivision screen indicates progress of the trouble diagnosis.

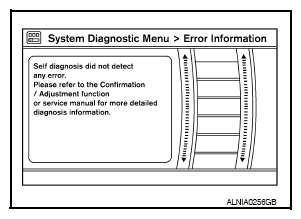

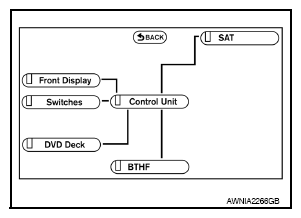

NOTE: Self-diagnosis requires approximately 10 seconds to complete. - Diagnosis results are displayed after the self-diagnosis is completed. The unit names and the connection lines are color-coded according to the diagnostic results.
Diagnosis results Unit Connection line
Normal Green Green
Connection malfunction Gray Yellow
Unit malfunction Note Red Green
NOTE:- Only the AV control unit is displayed in red.
- If multiple malfunctions occur at the same time for a single unit, the screen switch colors are determined according to the following order of priority: red > yellow > gray.
- Select a component on the "Self-Diagnosis" screen and comments for the diagnosis results will be shown.
Self-Diagnosis Results
| Area with yellow connection lines | Description | Possible malfunction location/Action to take |
|---|---|---|

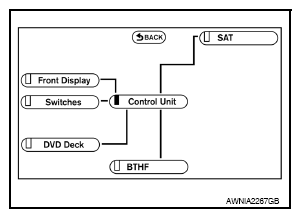

| AV control unit malfunction is detected | Replace the AV control unit. Refer to "REMOVAL AND INSTALLATION ". | |

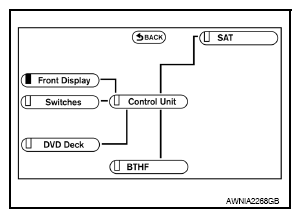

| Poor connection is detected for the display unit |
|
|

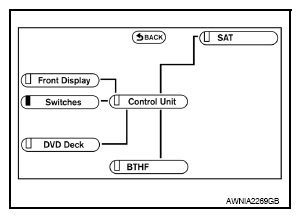

| Switch malfunction is detected | Perform A/C and AV switch assembly diagnostics. Refer to "A/C AND AV SWITCH ASSEMBLY: COMPONENT FUNCTION CHECK ". | |

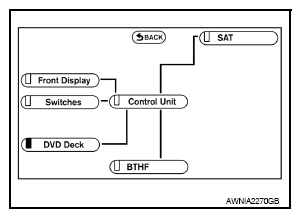

| Poor connection is detected for the DVD player. |
|
|

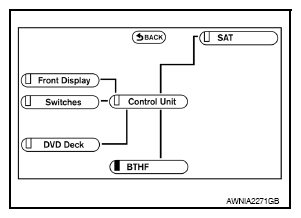

| Poor connection is detected for the Bluetooth control unit |
|
|

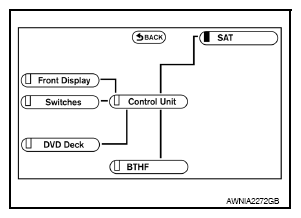

| Poor connection is detected for the satellite radio tuner. |
|
