Control System Connector Terminal Identification

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

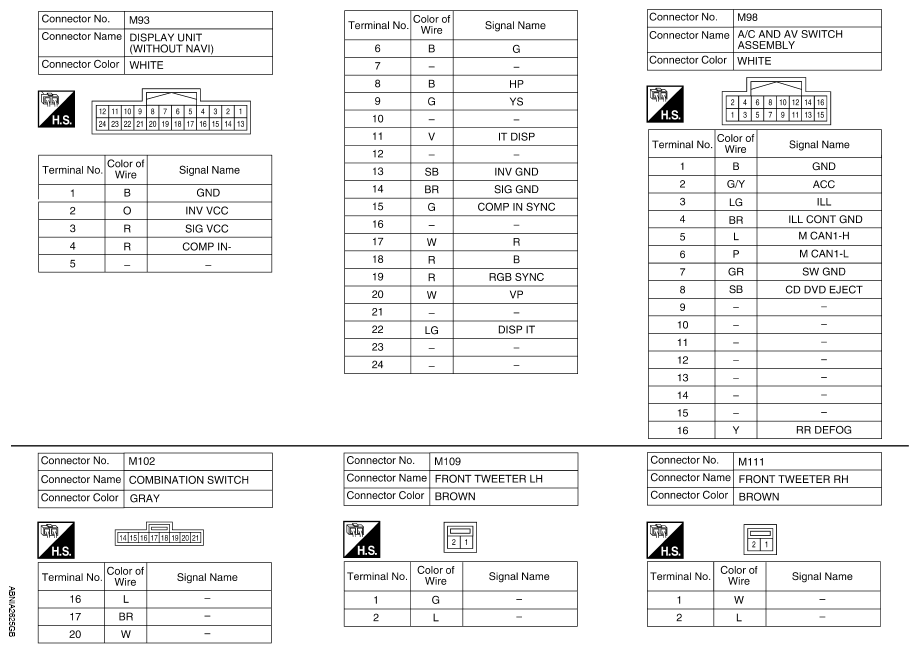

Fig 1: Identifying Bose Audio System Connectors Without Navigation System (2 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

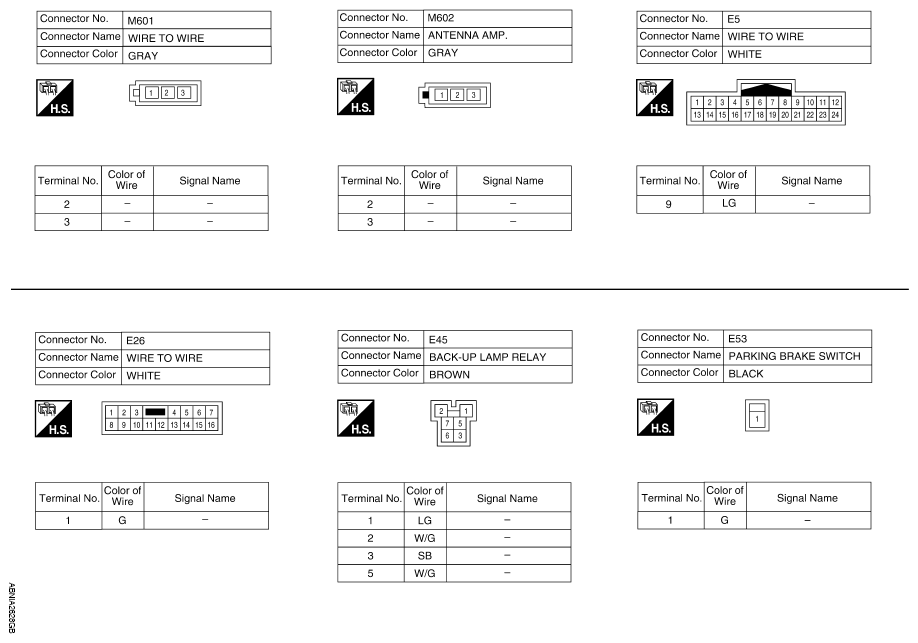

Fig 2: Identifying Bose Audio System Connectors Without Navigation System (3 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

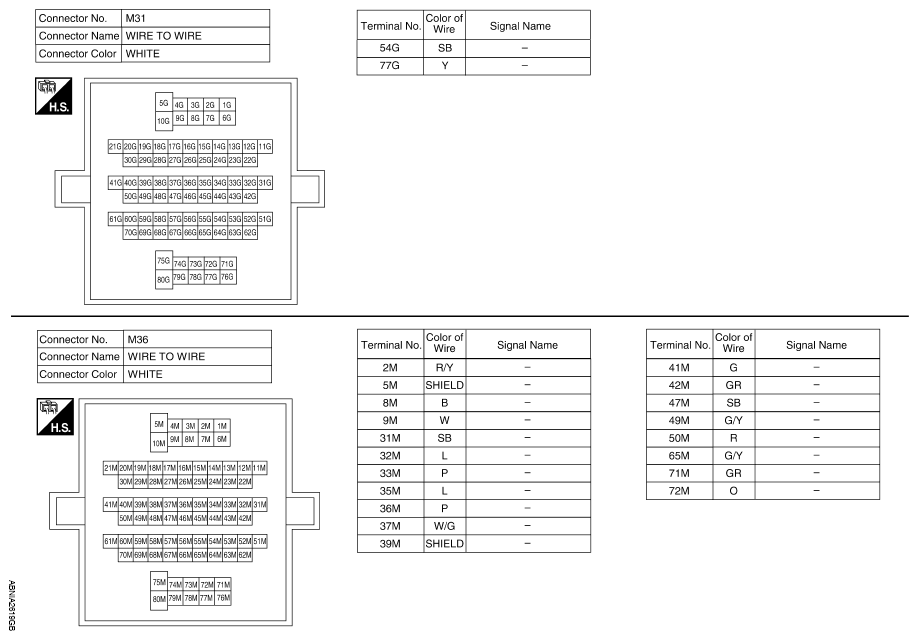

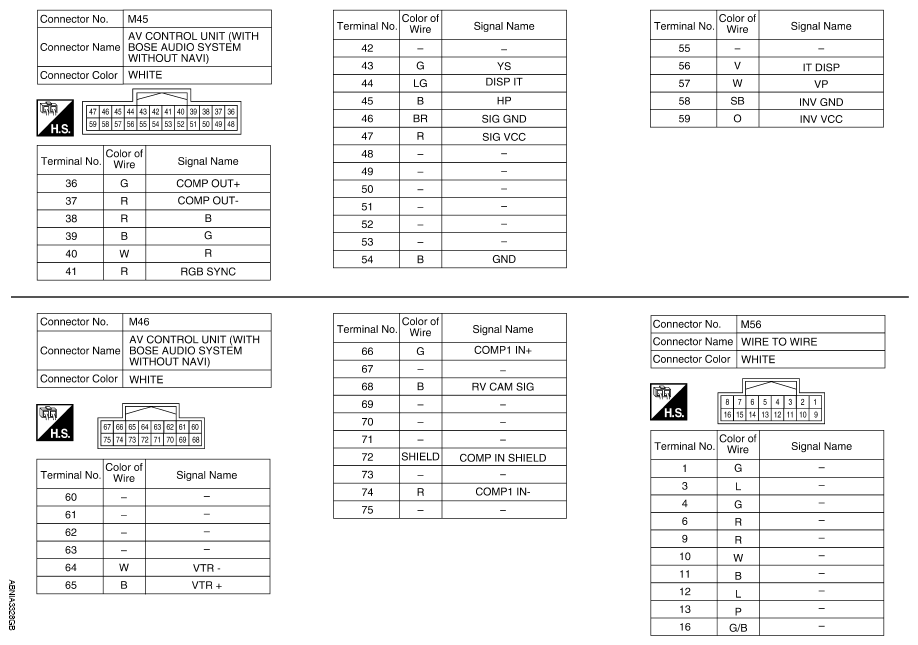

Fig 3: Identifying Bose Audio System Connectors Without Navigation System (4 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

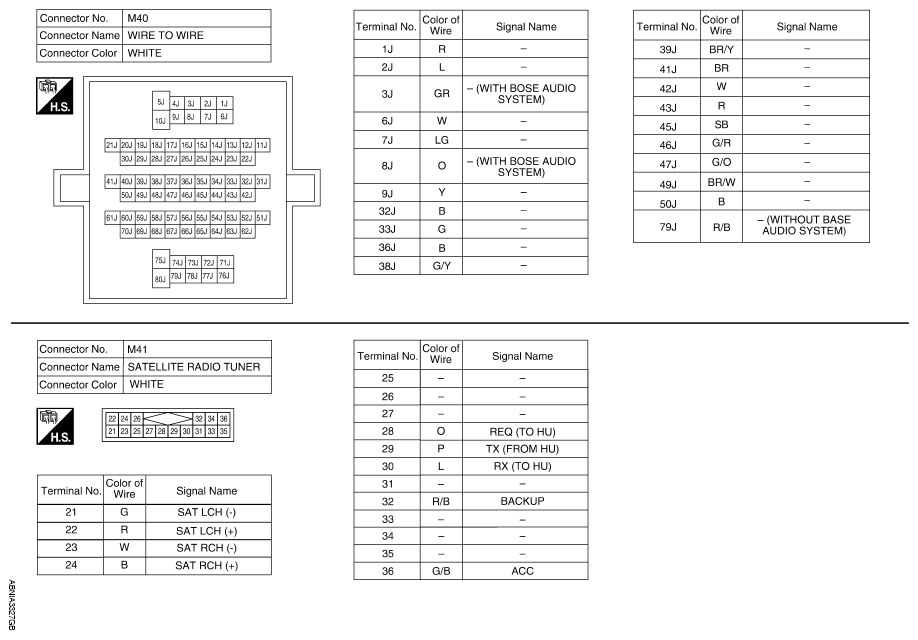

Fig 4: Identifying Bose Audio System Connectors Without Navigation System (5 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

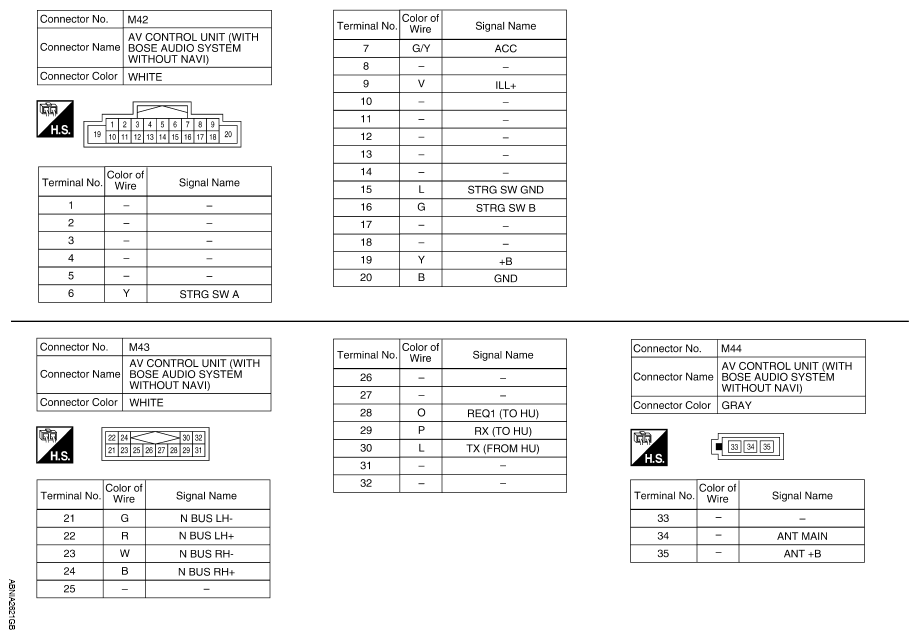

Fig 5: Identifying Bose Audio System Connectors Without Navigation System (6 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

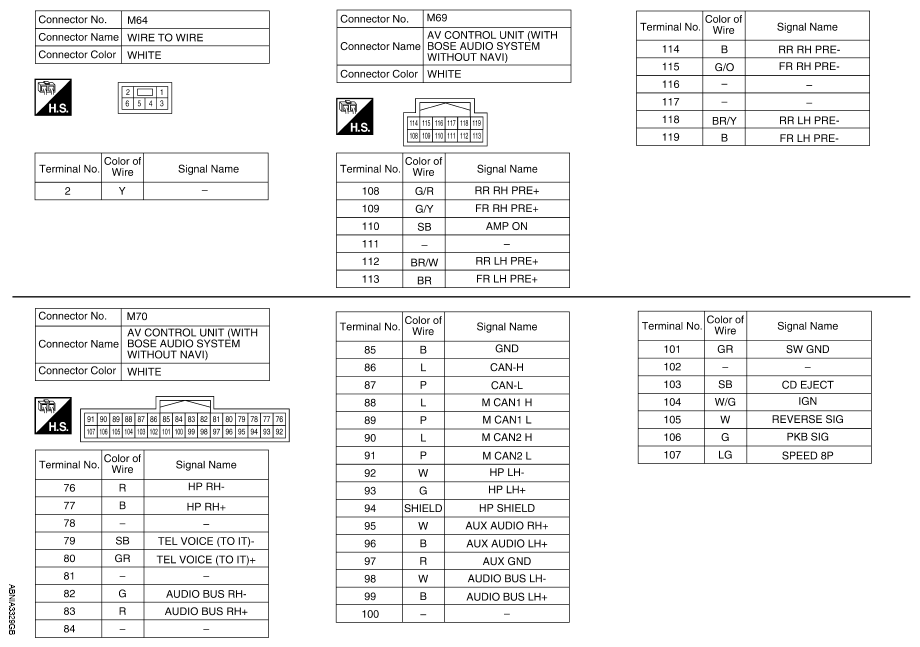

Fig 6: Identifying Bose Audio System Connectors Without Navigation System (7 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

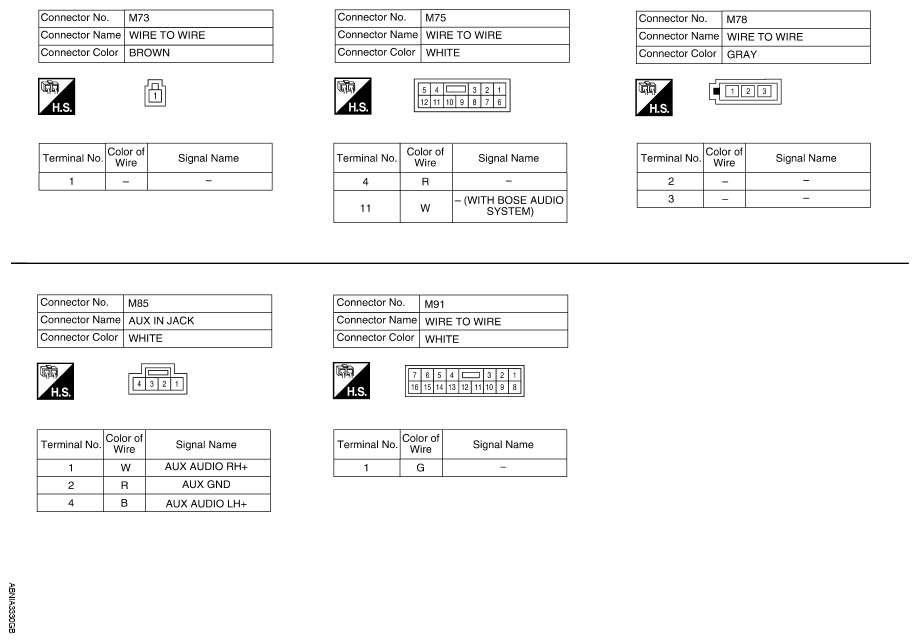

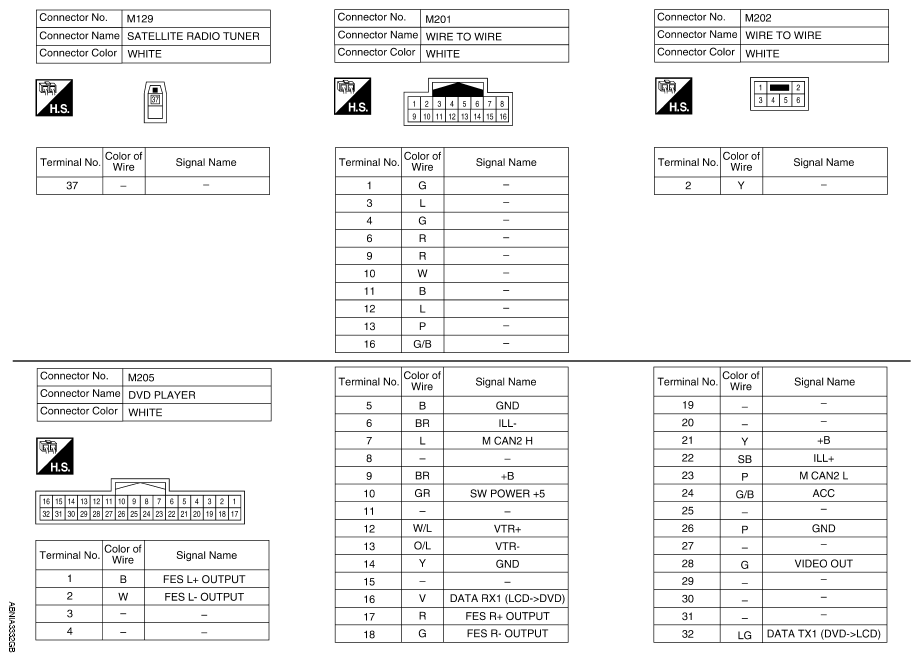

Fig 7: Identifying Bose Audio System Connectors Without Navigation System (8 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

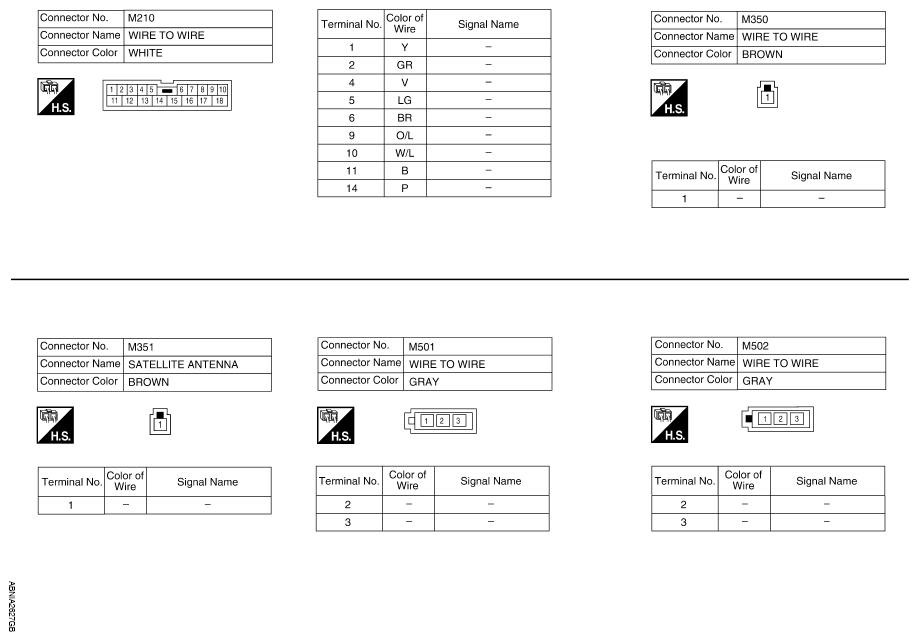

Fig 8: Identifying Bose Audio System Connectors Without Navigation System (9 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

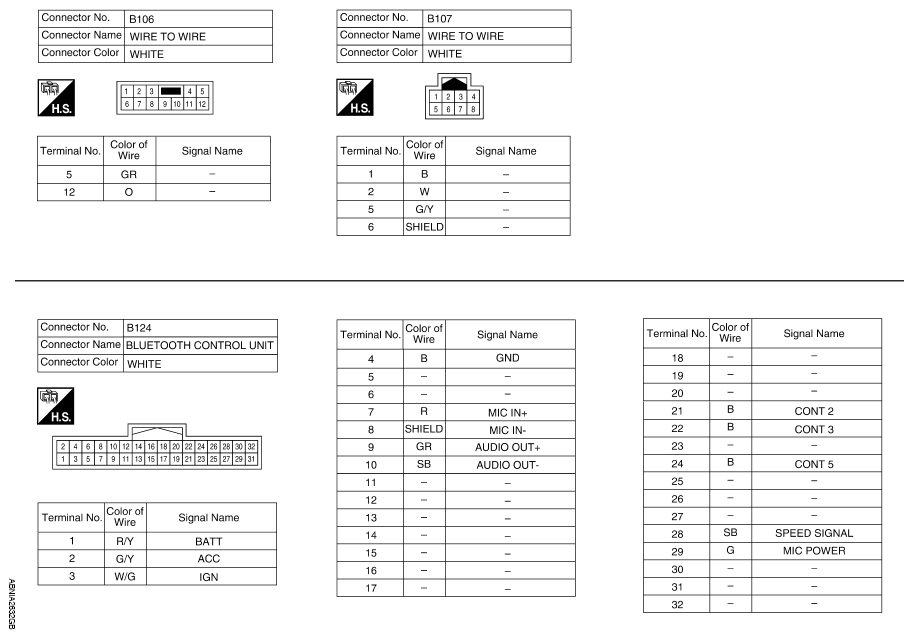

Fig 9: Identifying Bose Audio System Connectors Without Navigation System (10 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

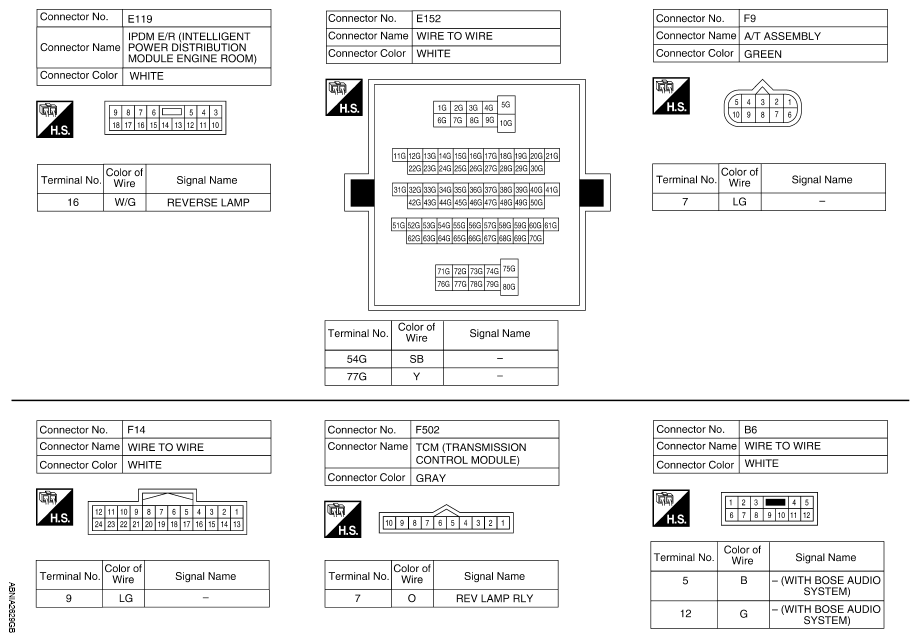

Fig 10: Identifying Bose Audio System Connectors Without Navigation System (11 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

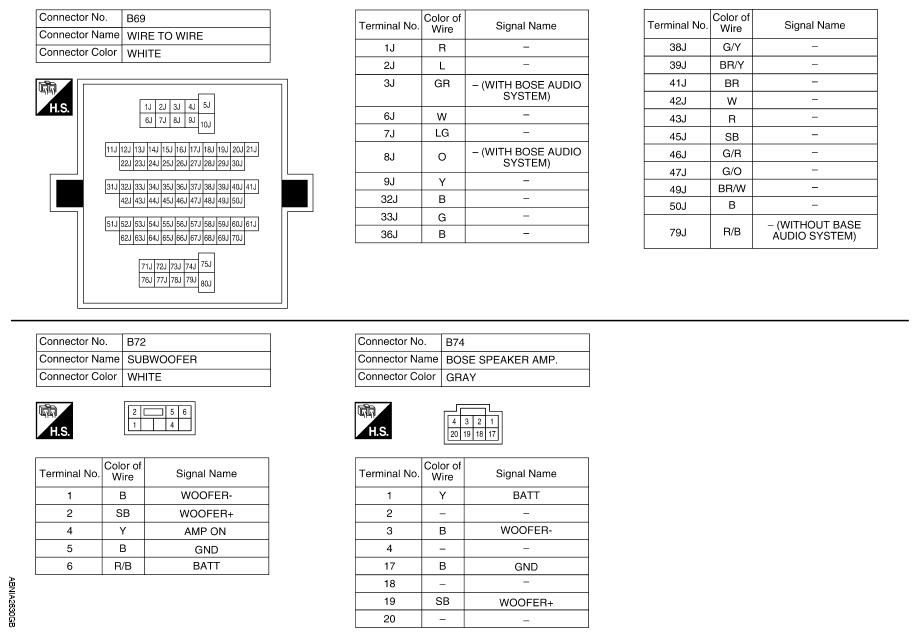

Fig 11: Identifying Bose Audio System Connectors Without Navigation System (12 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

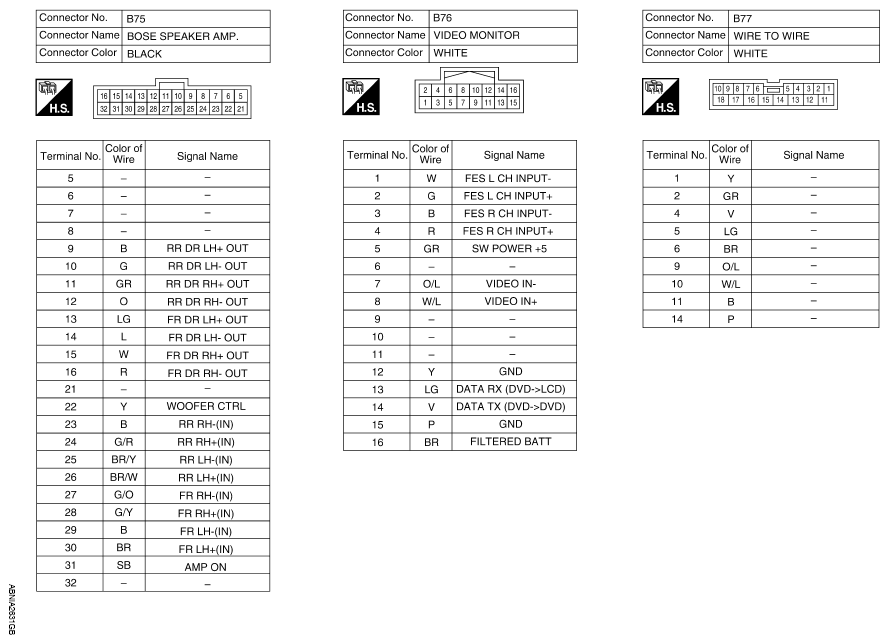

Fig 12: Identifying Bose Audio System Connectors Without Navigation System (13 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Identifying Bose Audio System Connectors Without Navigation System (14 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

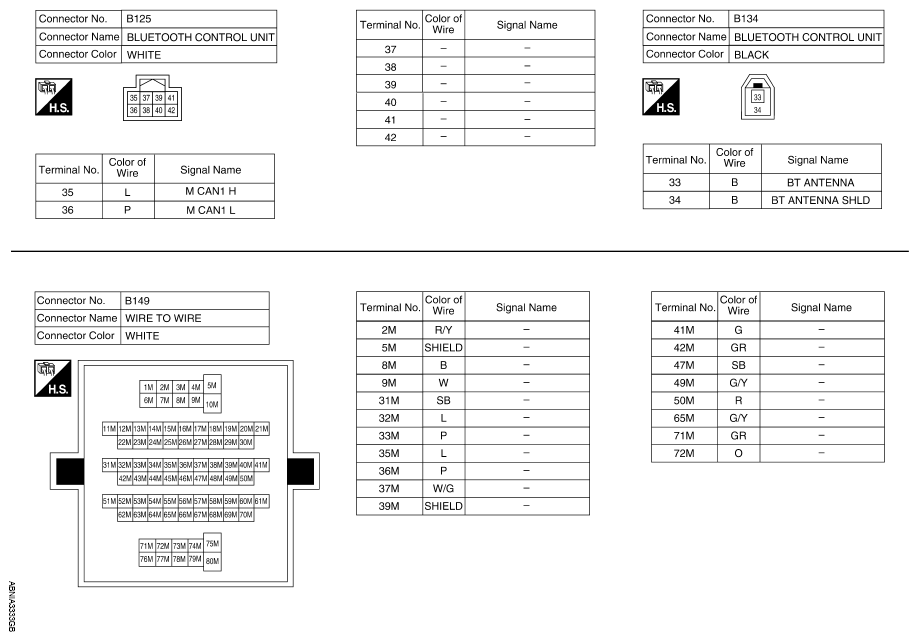

Fig 14: Identifying Bose Audio System Connectors Without Navigation System (15 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

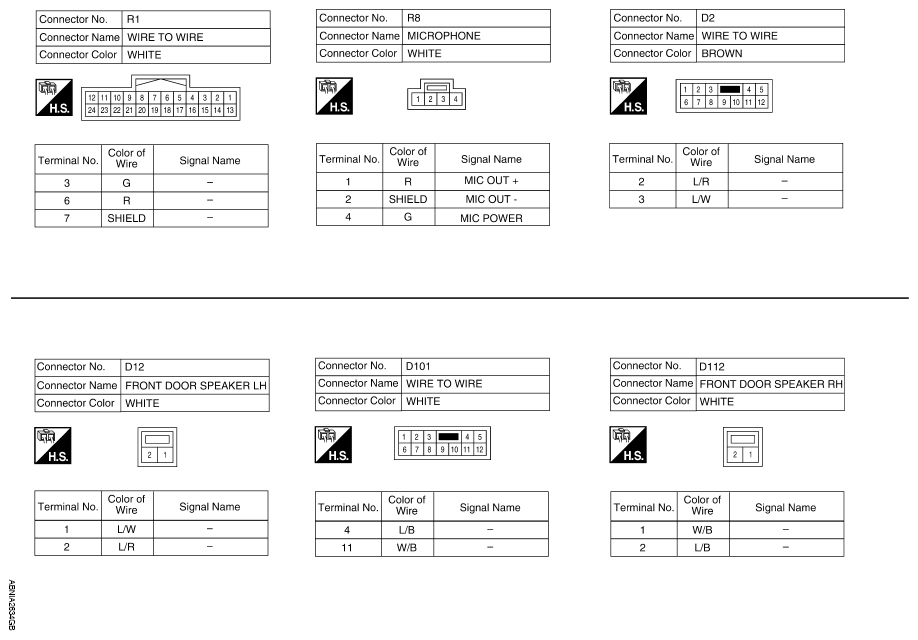

Fig 15: Identifying Bose Audio System Connectors Without Navigation System (16 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

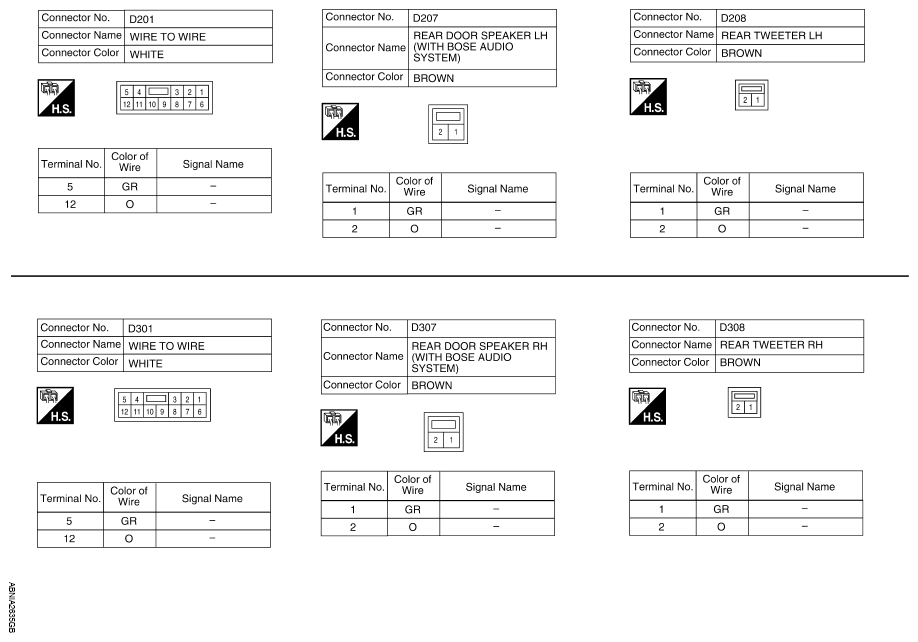

Fig 16: Identifying Bose Audio System Connectors Without Navigation System (17 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

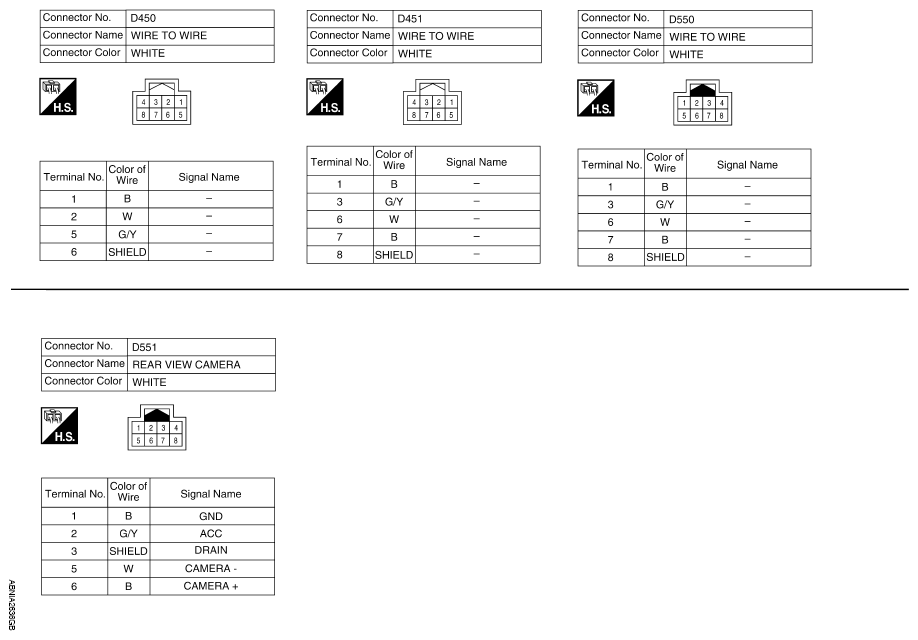

Fig 17: Identifying Bose Audio System Connectors Without Navigation System (18 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Identifying Bose Audio System Connectors Without Navigation System (19 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.
