Control System Connector Terminal Identification

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

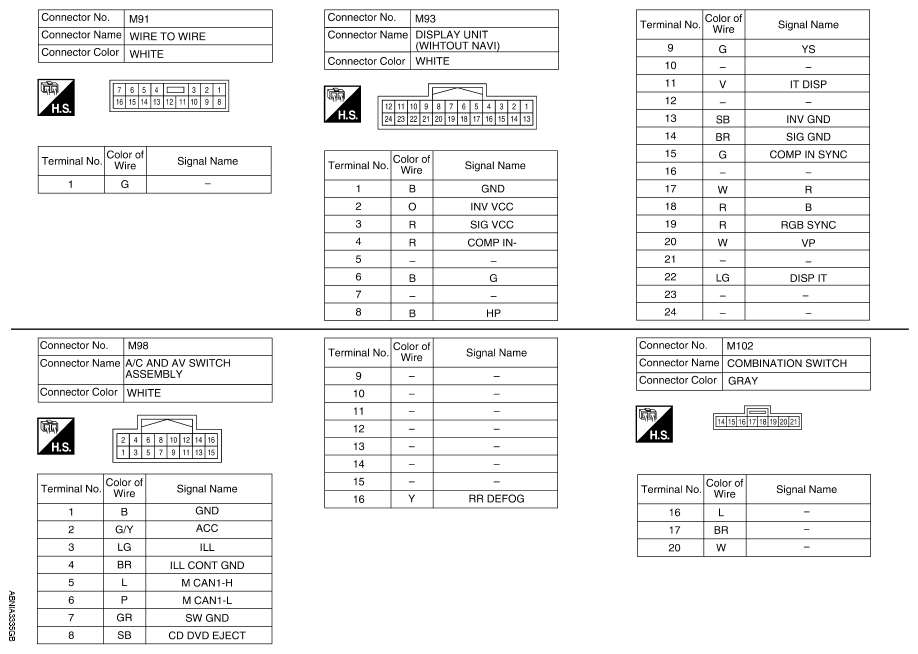

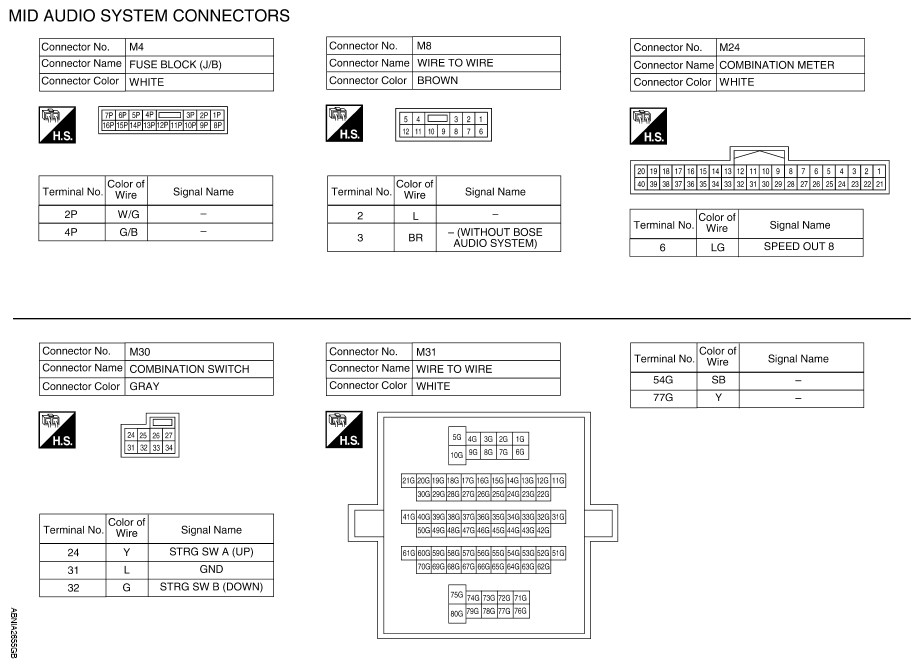

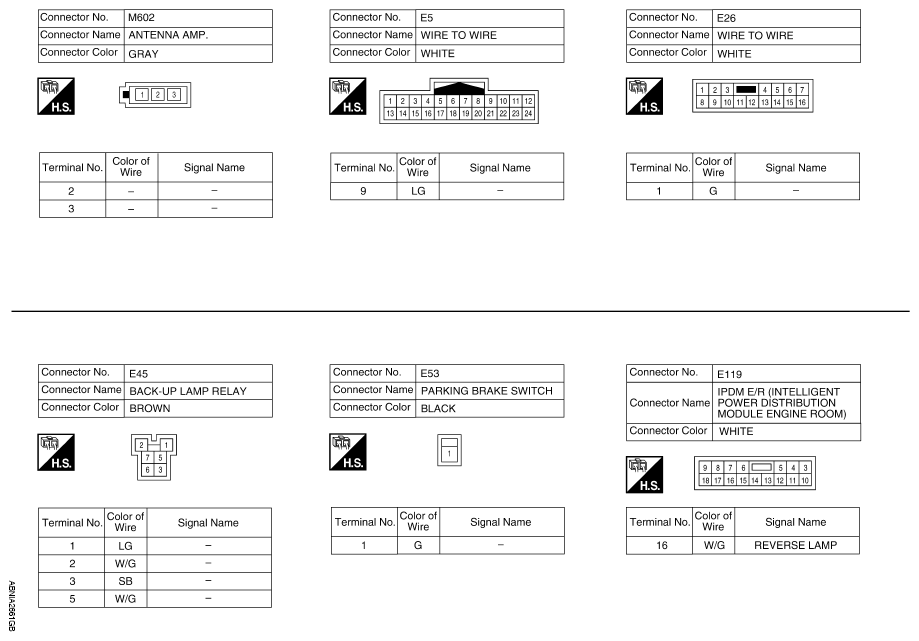

Fig 1: Identifying MID Audio System Connectors (1 Of 11)

Courtesy of NISSAN NORTH AMERICA, INC.

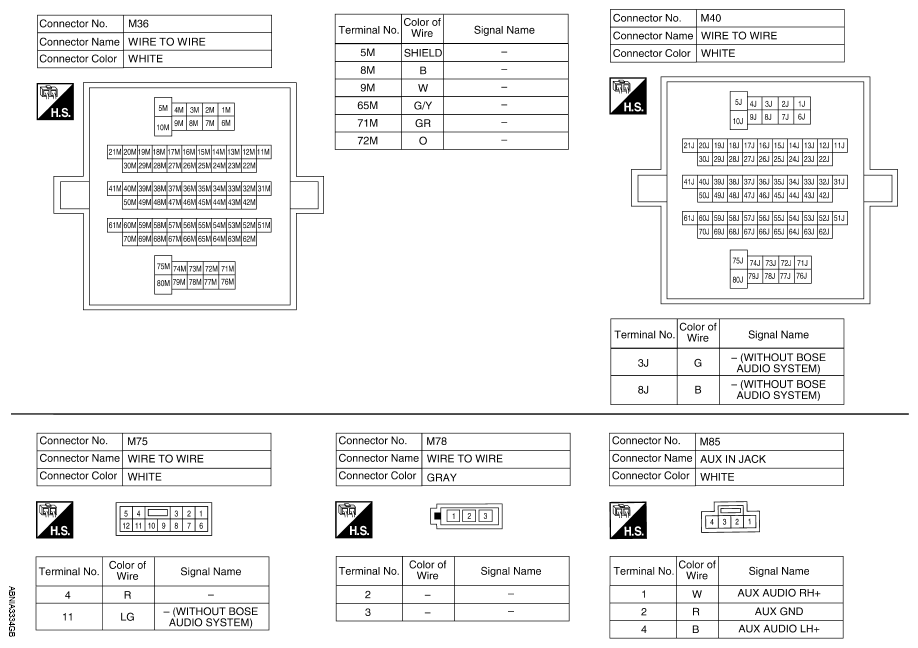

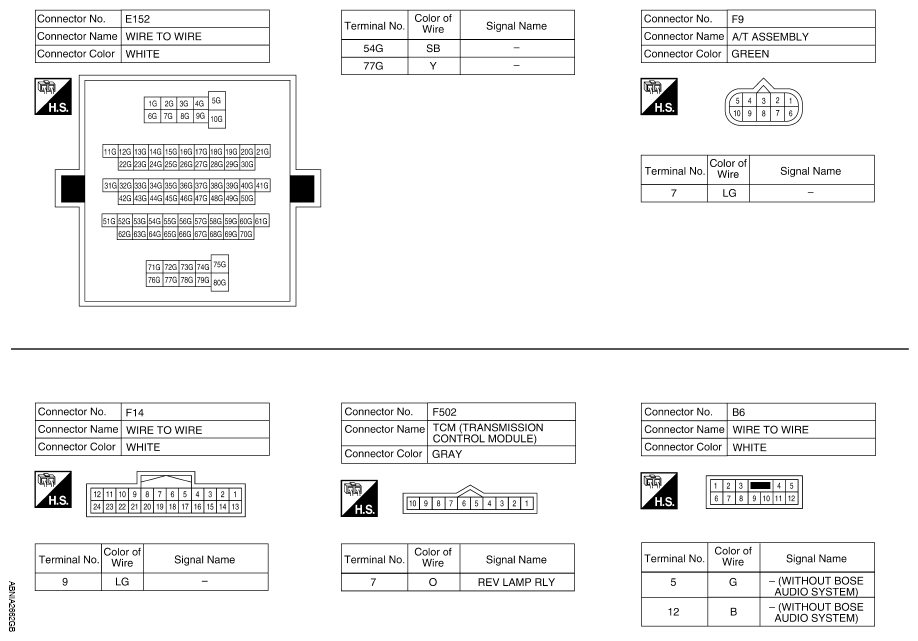

Fig 2: Identifying MID Audio System Connectors (2 Of 11)

Courtesy of NISSAN NORTH AMERICA, INC.

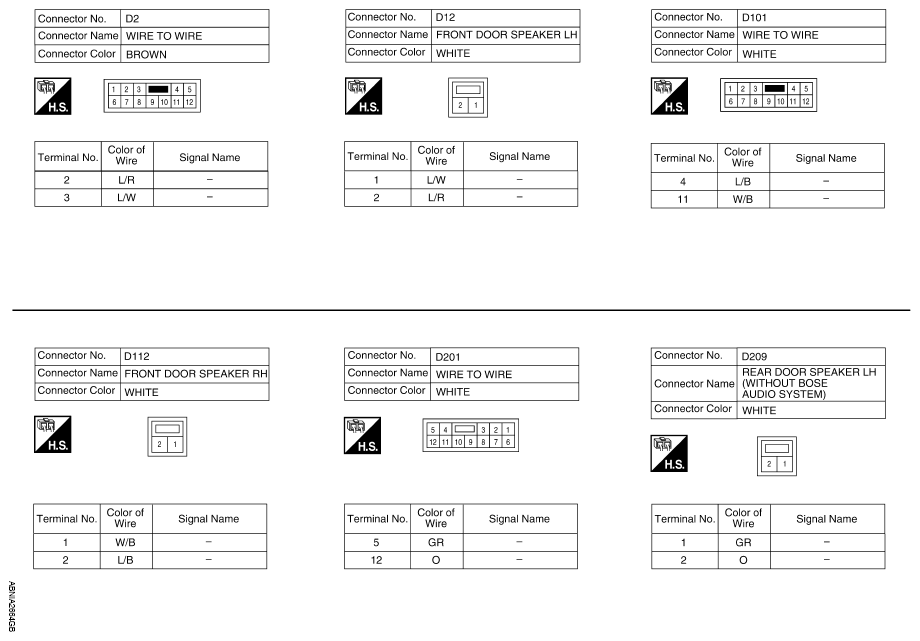

Fig 3: Identifying MID Audio System Connectors (3 Of 11)

Courtesy of NISSAN NORTH AMERICA, INC.

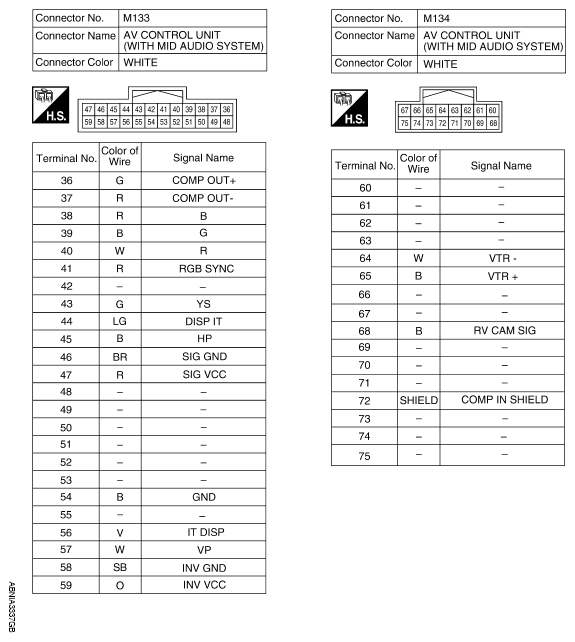

Fig 4: Identifying MID Audio System Connectors (4 Of 11)

Courtesy of NISSAN NORTH AMERICA, INC.

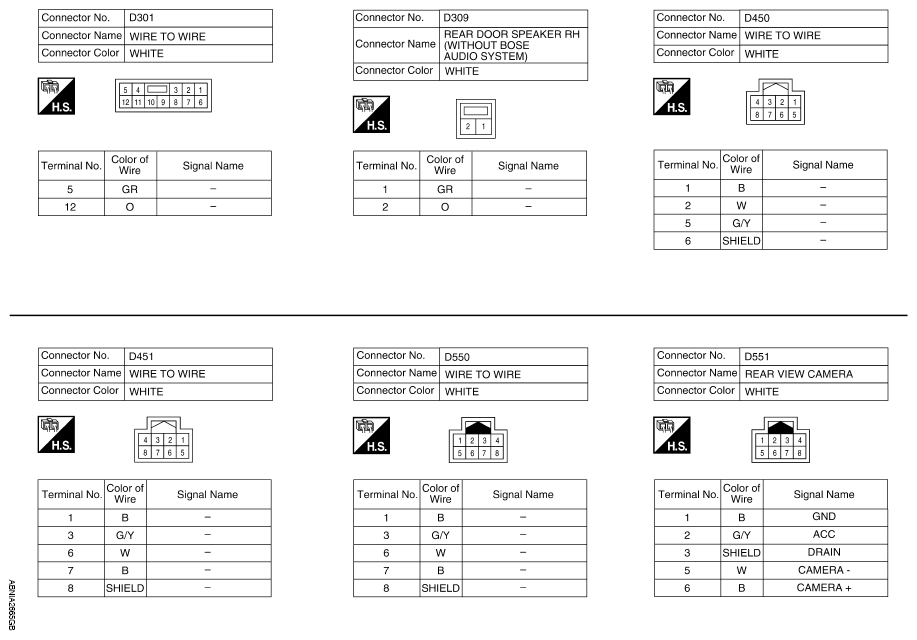

Fig 5: Identifying MID Audio System Connectors (5 Of 11)

Courtesy of NISSAN NORTH AMERICA, INC.

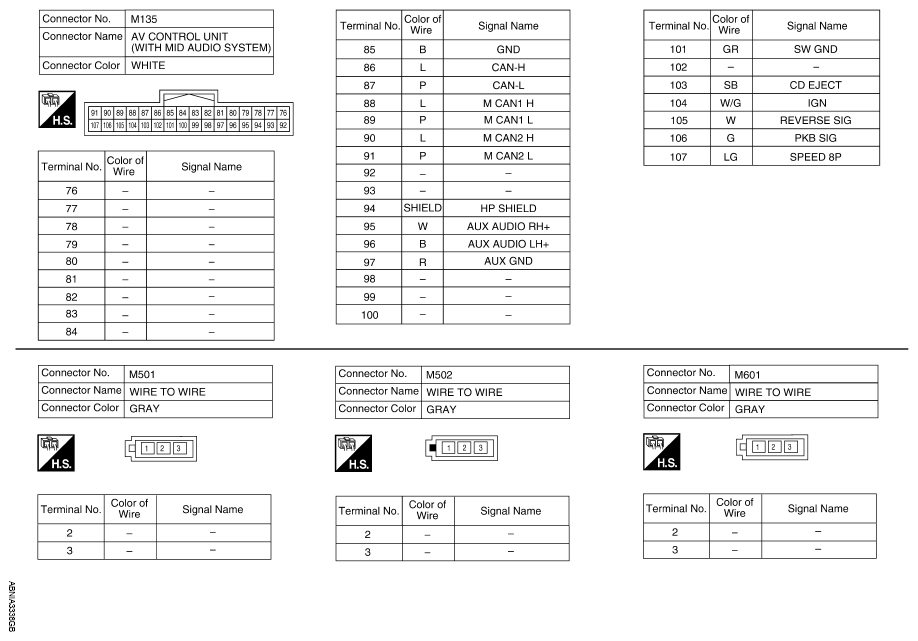

Fig 6: Identifying MID Audio System Connectors (6 Of 11)

Courtesy of NISSAN NORTH AMERICA, INC.

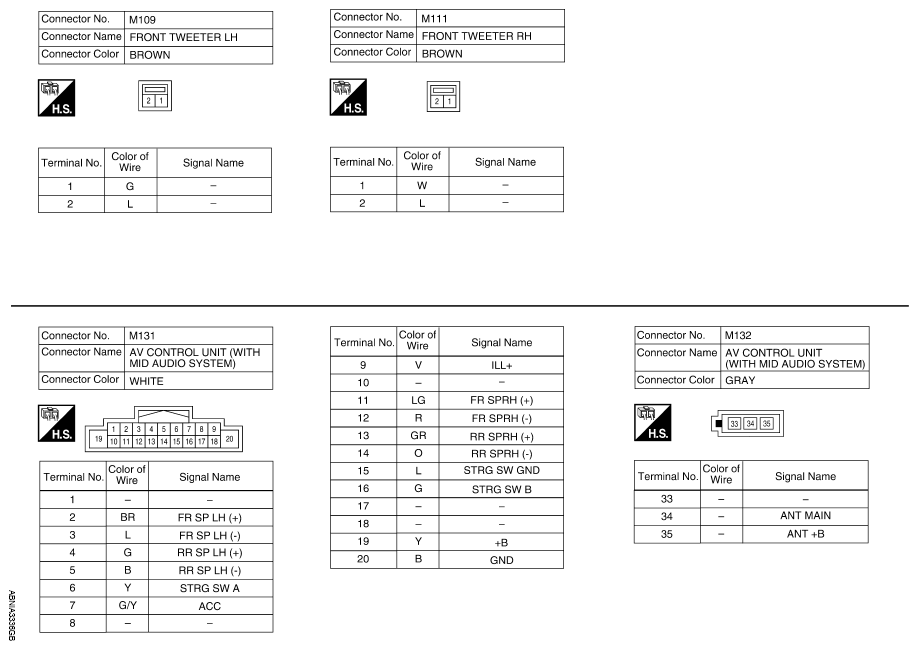

Fig 7: Identifying MID Audio System Connectors (7 Of 11)

Courtesy of NISSAN NORTH AMERICA, INC.

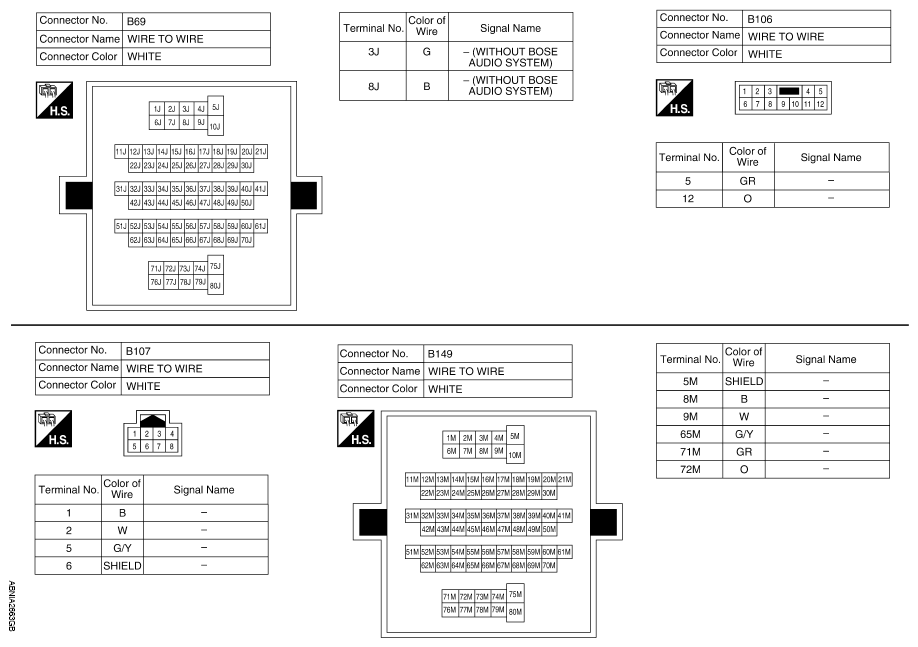

Fig 8: Identifying MID Audio System Connectors (8 Of 11)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Identifying MID Audio System Connectors (9 Of 11)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying MID Audio System Connectors (10 Of 11)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying MID Audio System Connectors (11 Of 11)

Courtesy of NISSAN NORTH AMERICA, INC.
